54

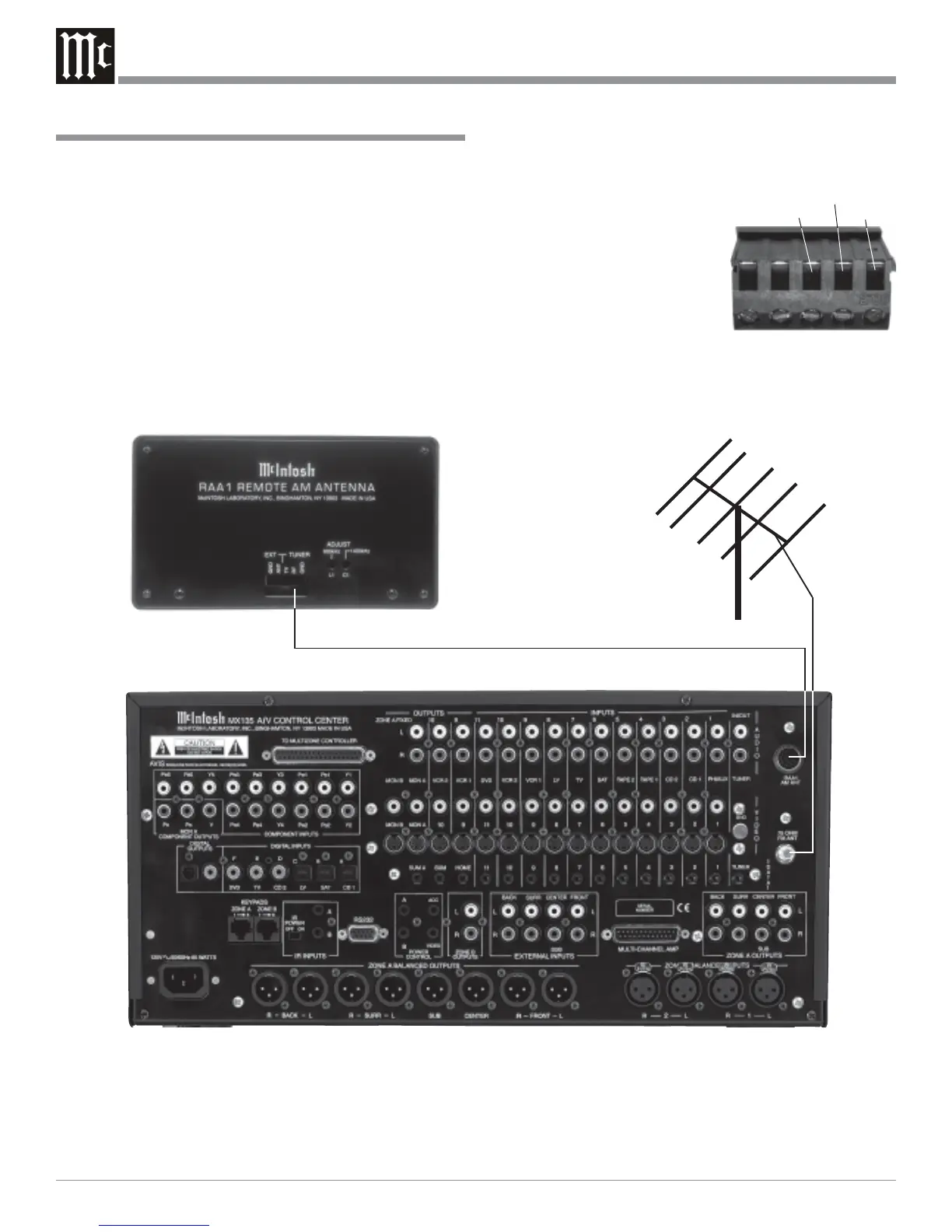

How to Connect Antenna Components
FM Antenna
1. Connect the Remote AM Antenna by plugging the DIN
Connector of the supplied 3 conductor cable into the
AM ANTenna, DIN socket on the back panel of the
MX135.
Note: If a longer length cable needs to be used between the
MX135 and the RAA1, use a 2 conductor shielded cable.
2. Connect a 75 ohm coax cable from an FM Antenna or
cable system to the MX135, 75 OHM FM ANTenna
Connector.
3. Proceed to page 19 and continue the connection pro-
cess.
How to Connect Antenna Components
RAA1 Connector
Connect the shield and two leads of a shielded 2 conductor
cable to the supplied 5 Pin Termi-
nal Connector Plug. Refer to the
connection information on the top
cover of the RAA1.
Red
Black
Green
To Next Page
