IMM AGS-2
53

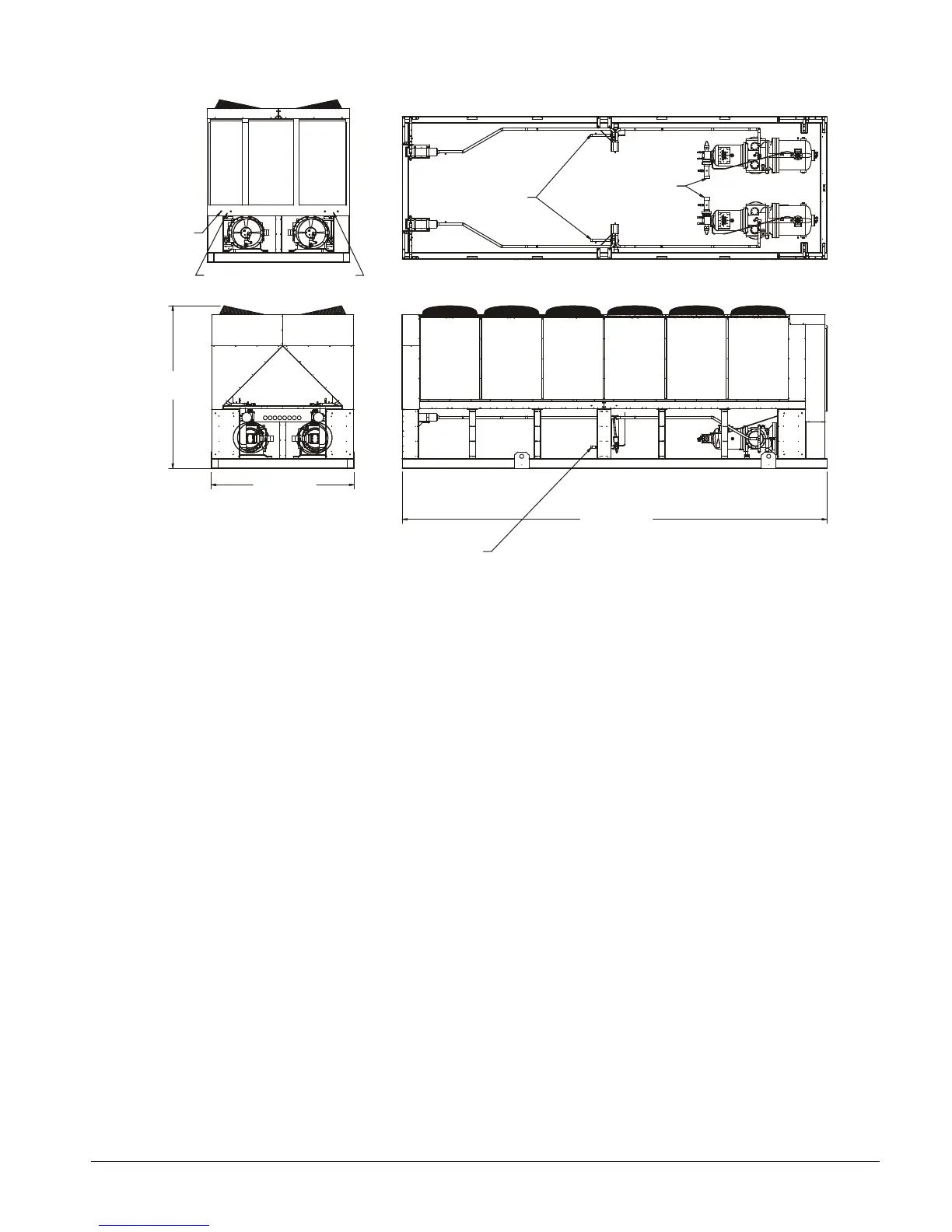

Figure 31, AGS 195CM/B - AGS 210CM/B (with Remote Evaporator)
0.875
KNOCK OUT
( QTY 4 TOTAL)
330712801D030C
AGS-C-195-210
263.0 (6680.2)
LIQUID CONNECTIONS
LIQUID CONNECTION
( 1.38 O.D.)
SUCTION
CONNECTION
(3.62 O.D.)
(2) POWER
ENTRY
FIELD CONTROL
(2) CONNECTIONS
100.4
(2550.2)
88.5 (2247.9)
