McQuay M5WM Series User Manual

Model: M5WM25F, 25FR – Indoor Unit
Model: M5LC10C, 10CR, 15C, 15CR – Outdoor Unit
IM-5WMF(SEER13)-0706 Page 5

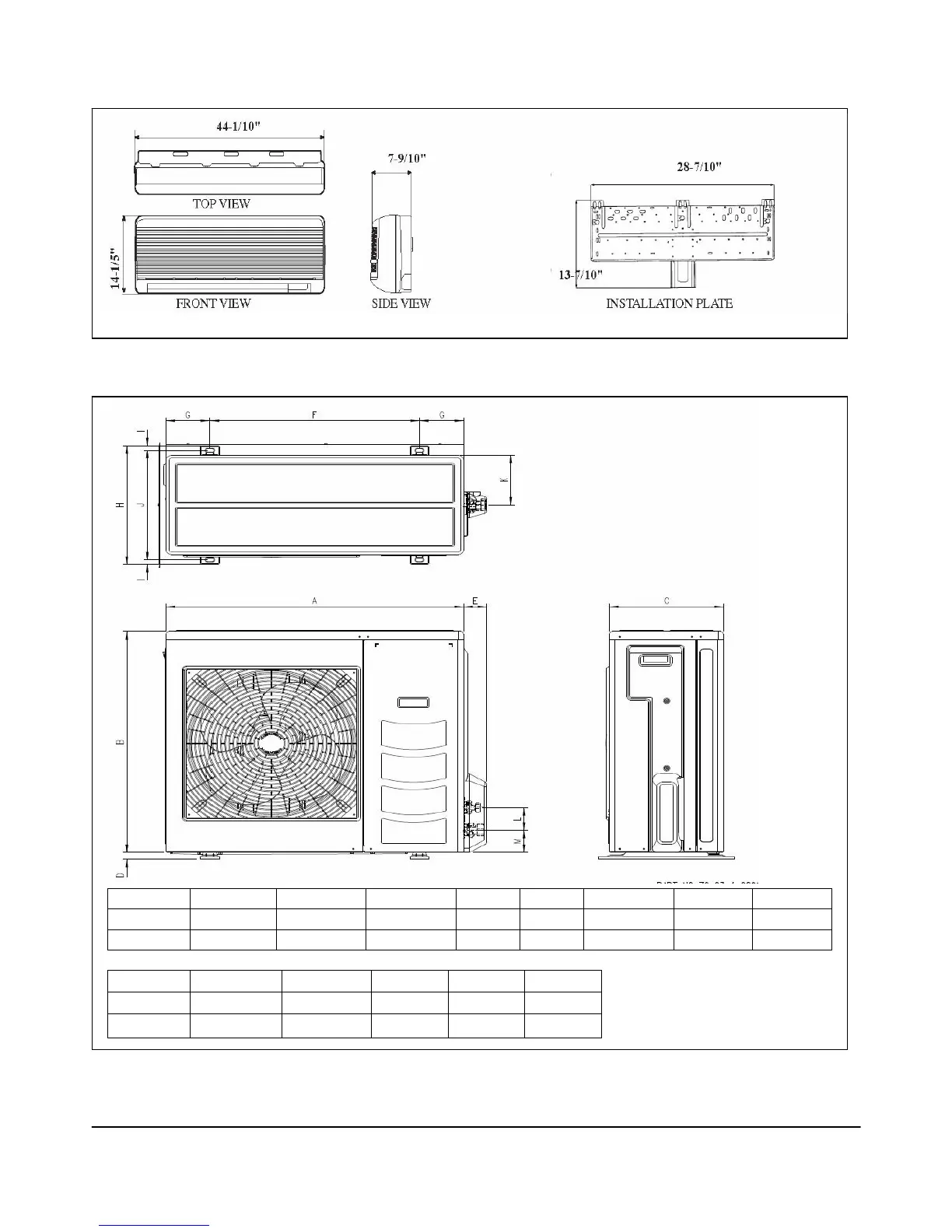

Dimension
A B C D E F G H
10C/CR 33-5/8” 24-3/4” 12-7/8” 7/8” 2-5/8” 23-3/4” 5” 15-3/8”
15C/CR 33-5/8” 28-3/4” 12-7/8” 7/8” 2-5/8” 23-3/4” 5” 15-3/8”
Dimension
I J K L M
10C/CR
5/8” 14-1/4” 6-1/2” 3” 2-7/8”
15C/CR
5/8” 14-1/4” 6-1/2” 3” 2-7/8”
