IM-5WMF(SEER13)-0706 Page 9
Installing Unit on Mounting Plate
Hook the indoor unit onto the upper portion of the mounting
plate (engage the two hooks at the rear top of the indoor
unit with the upper edge of the plate). Properly seat the
hooks and replace the plastic rivet at the bottom.

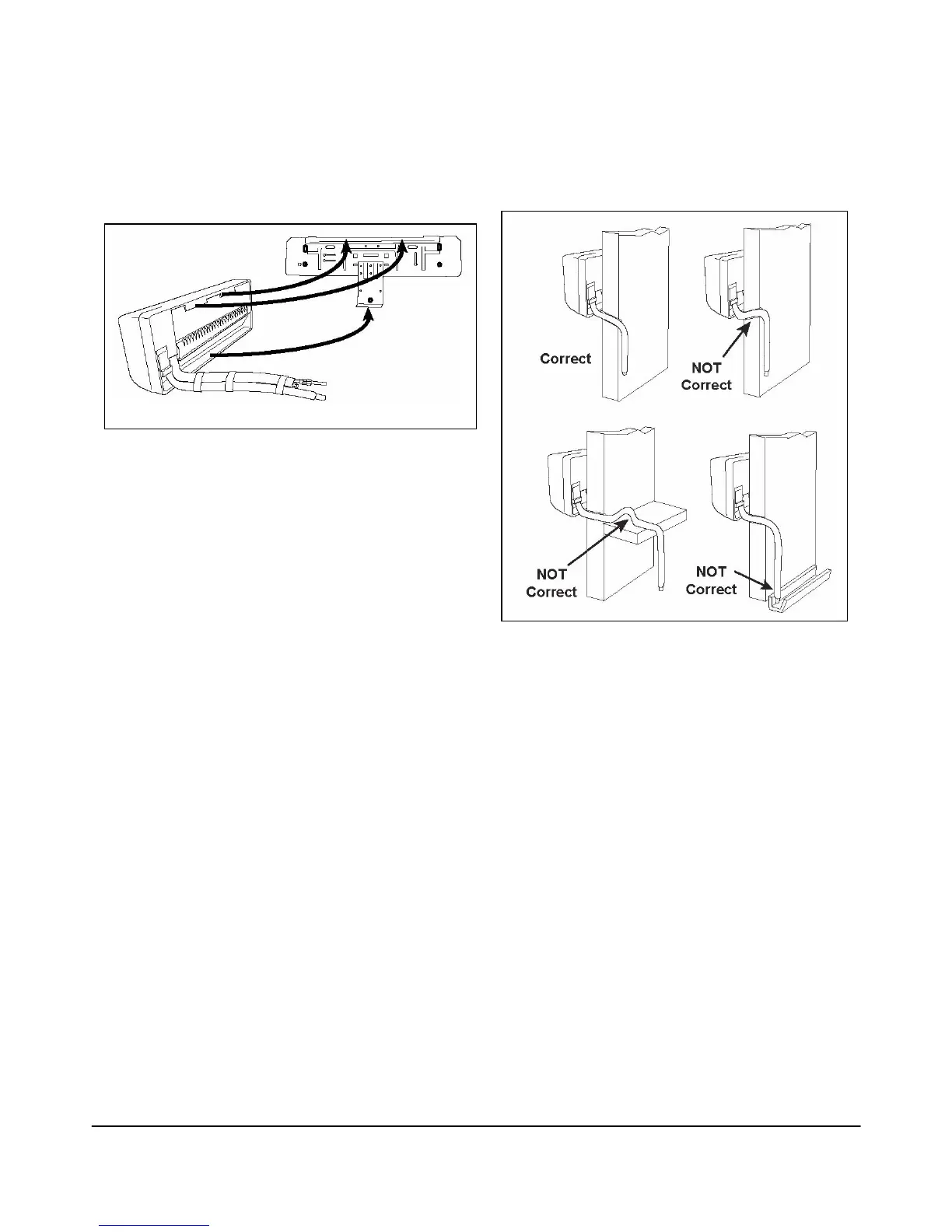

Figure 8. Installing Unit on Mounting Plate
Drain Hose Installation
The condensate drain hose (20” long) come factory
attached to the indoor unit. It is gravity flow. Avoid
situations that could restrict drainage. See Figure 9.
Figure 9. Drain Hose Installation
