McQuay MCW 200 C User Manual

WATER I NLET
WHEN PI PING.
WATE R OUTLET
CONNECTOR WITH TIGHT FORCE
CAUTI ON
BE CAREFUL NOT TO DAMAGE THE
WATER INLET
BE CAREFUL NOT TO DAMAGE T HE
CAUTI ON
CONNECTOR WITH TIGHT FORCE
WATER OUTL ET
WHEN PI PI NG.
Fi
g
ure 5
Fi
g
ure 4

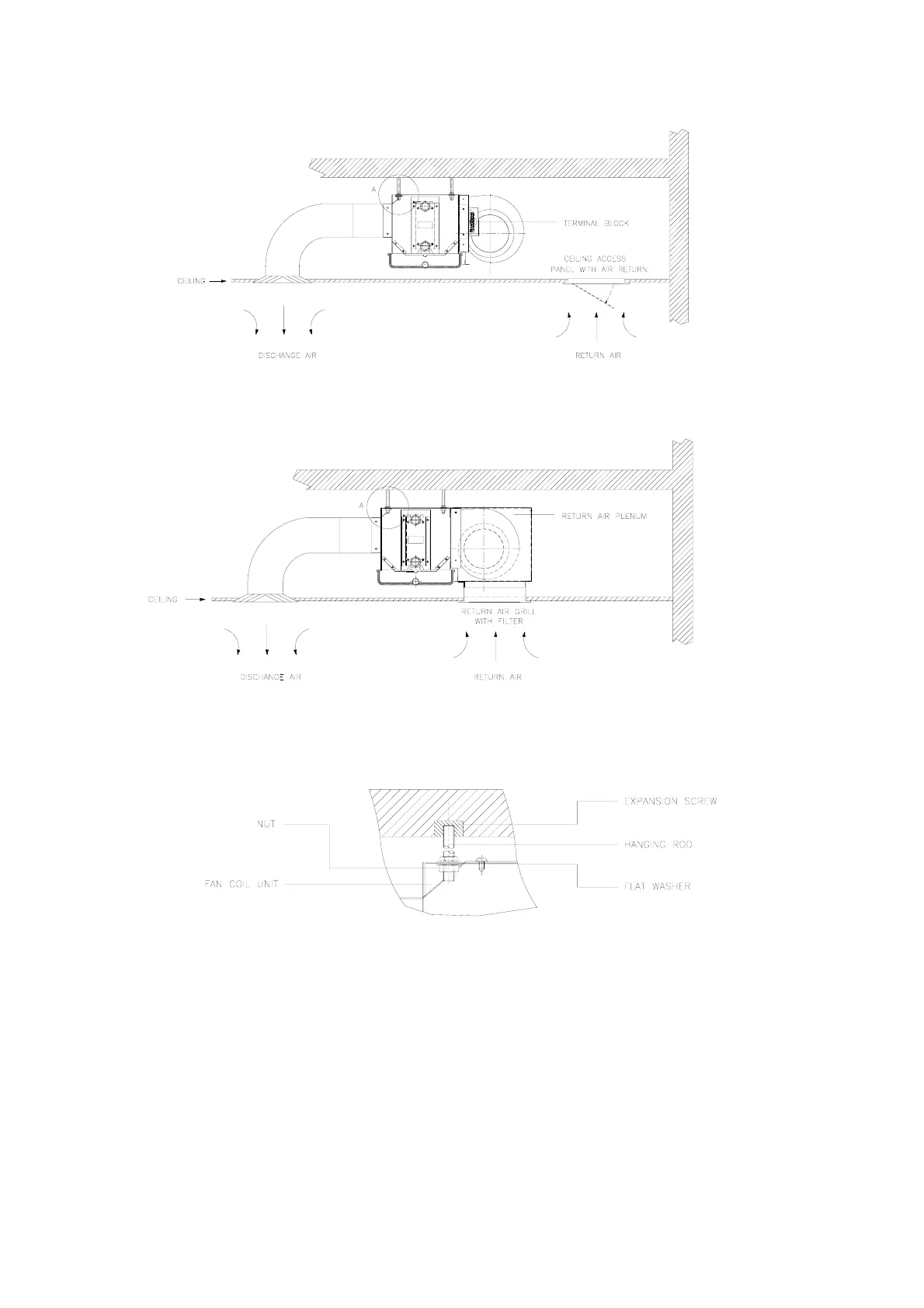

Detail A
Air duct connection
Air duct which is made of galvanized steel can be connected to the flange of the unit. Refer to Figure 2
for the unit dimensions. Insert the duct into the flange and fix with screws. If dimensions of the duct
and flange are different, connect with a connector between them.
Air duct connection must be installed in accordance with the national code for fire protection and
construction of ventilation and air conditioning works.
Page 27
