McQuay MCW 200 C User Manual

For Models: MCW800C MCW1000C MCW1200C (0Pa and 30Pa)

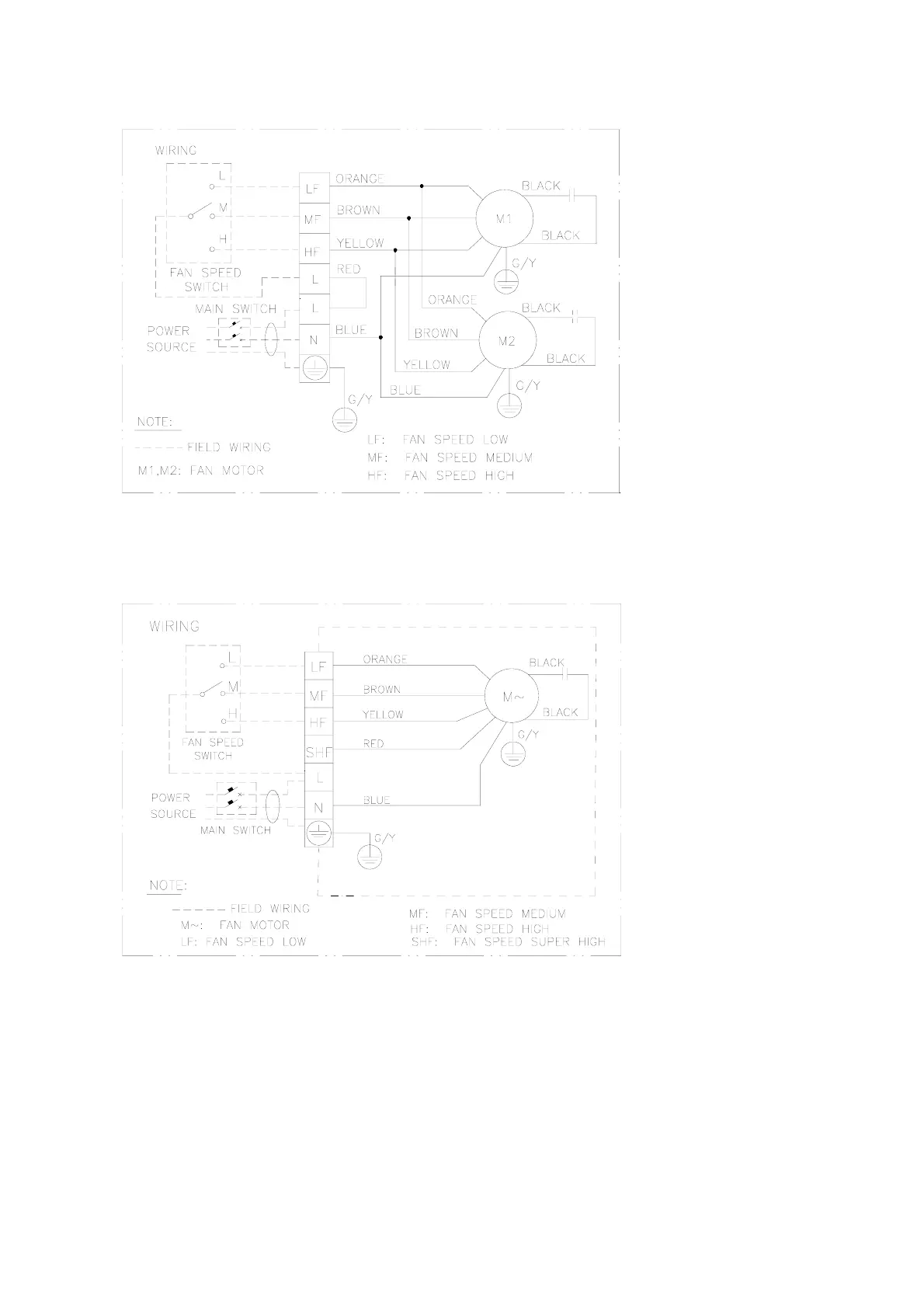

Figure 8
Figure 8
For Models: MCW200C MCW300C MCW400C MCW600C (60Pa and 80Pa)
60Pa: LF--Low Speed MF--Medium Speed HF--High Speed
80Pa: MF--Low Speed HF--Medium Speed SHF--High Speed
Figure 9
Figure 9
Page 30

McQuay MCW 200 C Specifications

General

Brand	McQuay
Model	MCW 200 C
Category	Air Handlers
Language	English
