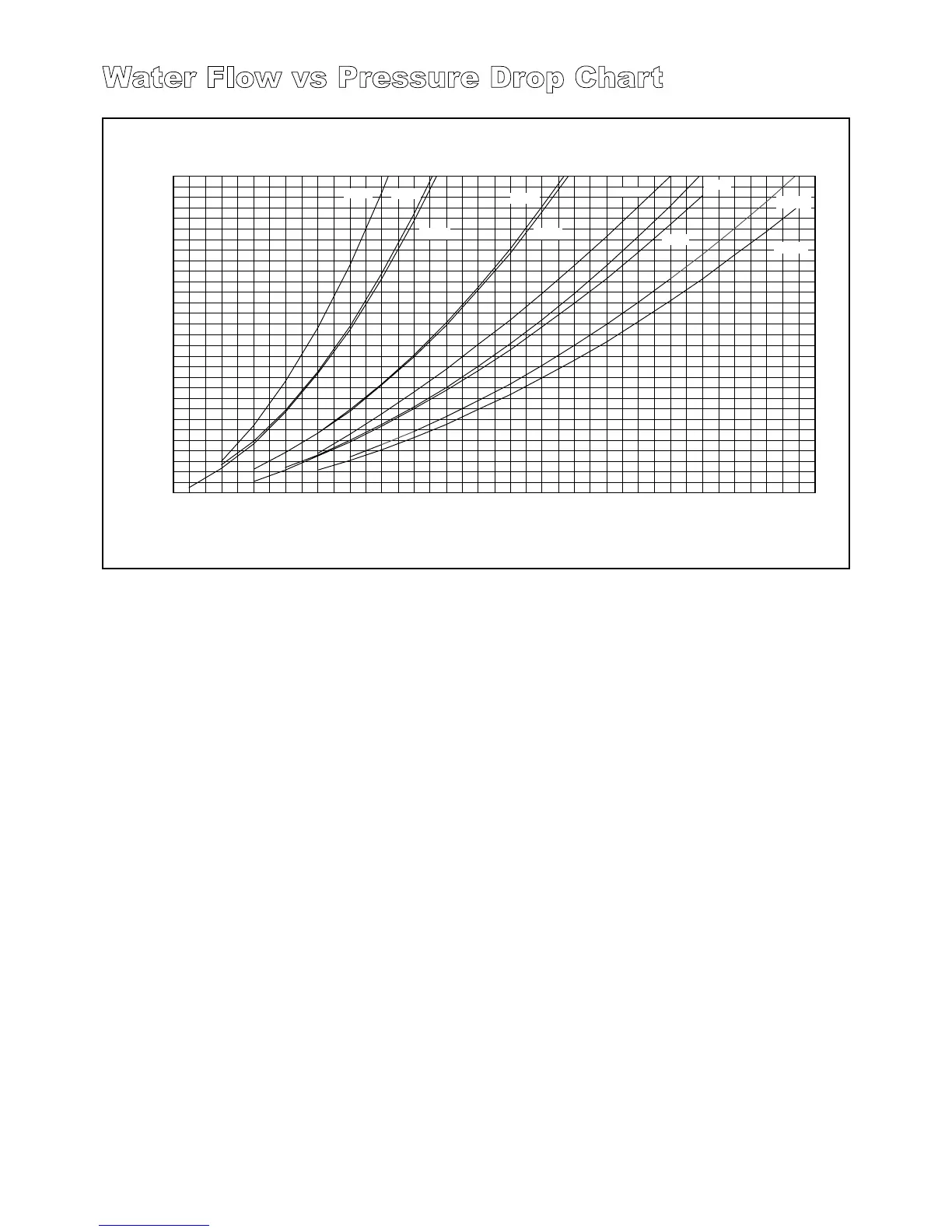

Water Flow vs Pressure Drop Chart
Water Pressure Drop Curves
0
10
20
30
40
50
60
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0
Water Flow (m
3
/h)
Water Pressure Drop (kPa)
400D
300D
200D
600D
500D
900D
800D
1400D
1200D
1000D
Note:
The pressure drop is for the coil only and excludes water connections and valves.

McQuay MCW200D Specifications

General

Brand	McQuay
Model	MCW200D
Category	Chiller
Language	English
