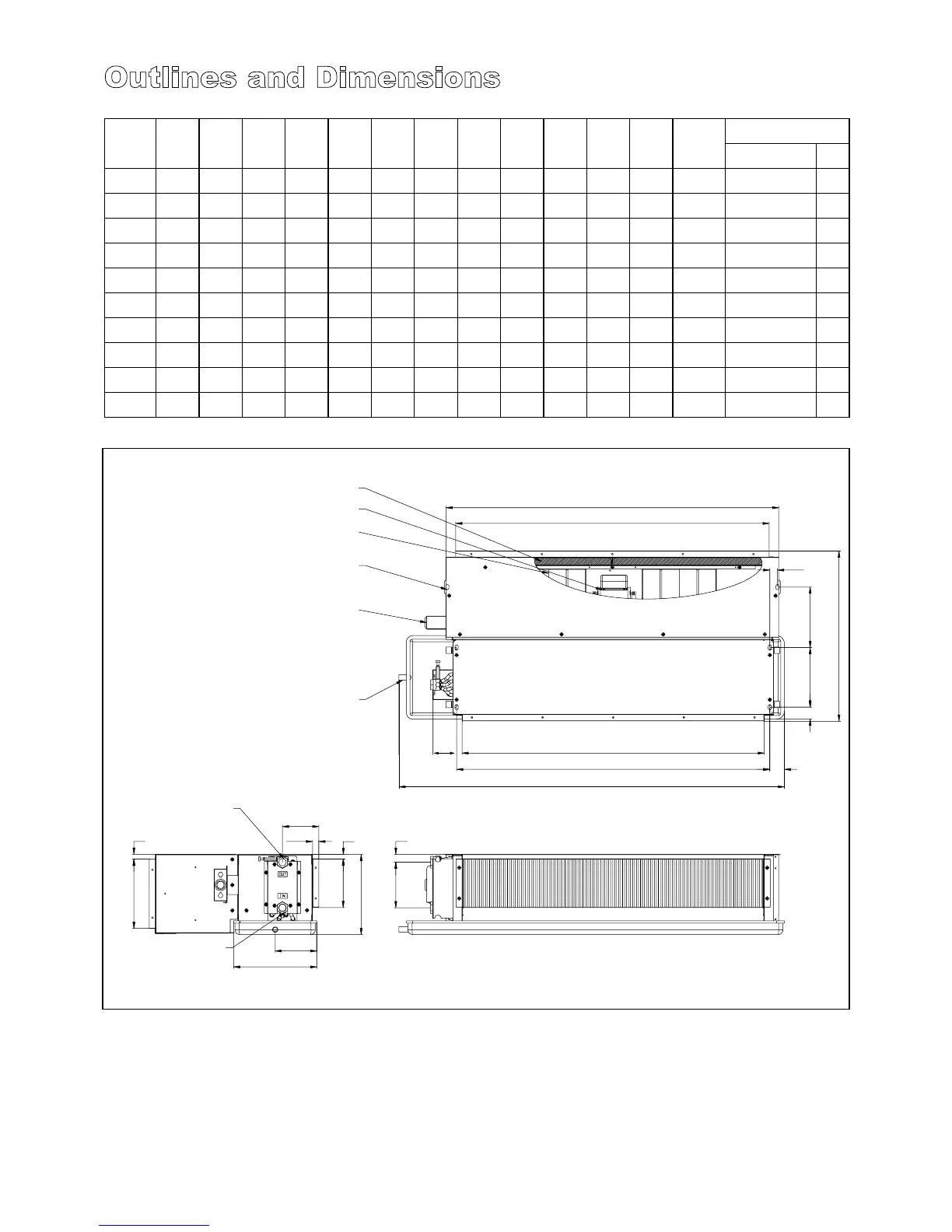

Outlines and Dimensions

WATER SUPPLY

CONNECTION Rc 3/4

WATER RETURN

CONNECTION Rc 3/4

CONDENSATE

DRAIN R 3/4

6-R5*16

MOUNTING HOLES

FILTER

TERMINAL BOX

FAN MOTOR

FAN

38 187 190

262

131

A(A1)

B 46

MODEL A A1 B C D E F G H I J K Fan No.

Filters

Size Qty

200D 714 814 484 448 487 547 534 150 251 105.5 143 218 1 502x244x25 1

300D 934 1034 704 668 707 767 534 150 251 105.5 143 218 2 722x244x25 1

400D 1014 1114 784 748 787 847 534 150 251 105.5 143 218 2 802x244x25 2

500D 1114 1214 884 848 887 947 534 150 251 94 143 218 2 902x244x25 2

600D 1214 1314 984 948 987 1047 534 150 251 94 143 218 2 1002x244x25 3

800D 1464 1564 1234 1198 1237 1297 534 150 251 94 143 218 3 1252x244x25 3

900D 1564 1664 1334 1298 1337 1397 534 150 251 94 143 218 3 1352x244x25 3

1000D 1664 1764 1434 1398 1437 1497 534 150 251 94 143 218 4 1452x244x25 3

1200D 1464 1564 1234 1198 1237 1297 599 200 295 94 193.8 262 3 1252x288x25 3

1400D 1664 1764 1434 1398 1437 1497 599 200 295 94 193.8 262 3 1452x288x25 3

Notes:

1. All dimensions are in mm;

2. Allstandardunitsarewithbackairplenumandbottomremovallters;

3. A1 is the dimension for 100mm extended drain pan units;

4. Left hand coil connection shown;

5. Wiring connection side is the same as coil and drain connections.
