Installation
RECEIVING
All units leaving the McQuay plant have been inspected to ensure the shipment of high quality products
and reasonable means are utilized to properly pack the fan coil units to protect them in transit.
Carefully inspect all shipments immediately upon delivery. When damage is visible, note this fact on the
carrier’s freight bill and request that the carrier sends a representative to inspect the damage. This may be
done by telephone or in person, but should always be conrmed in writing.
The shipment should be unpacked in the presence of the agent so that the damage or loss can be
determined. The carrier’s agent will make an inspection report and a copy will be given to the consignee for
forwarding to the carrier with a formal claim.
LOCATION
Before installation, please check the following:

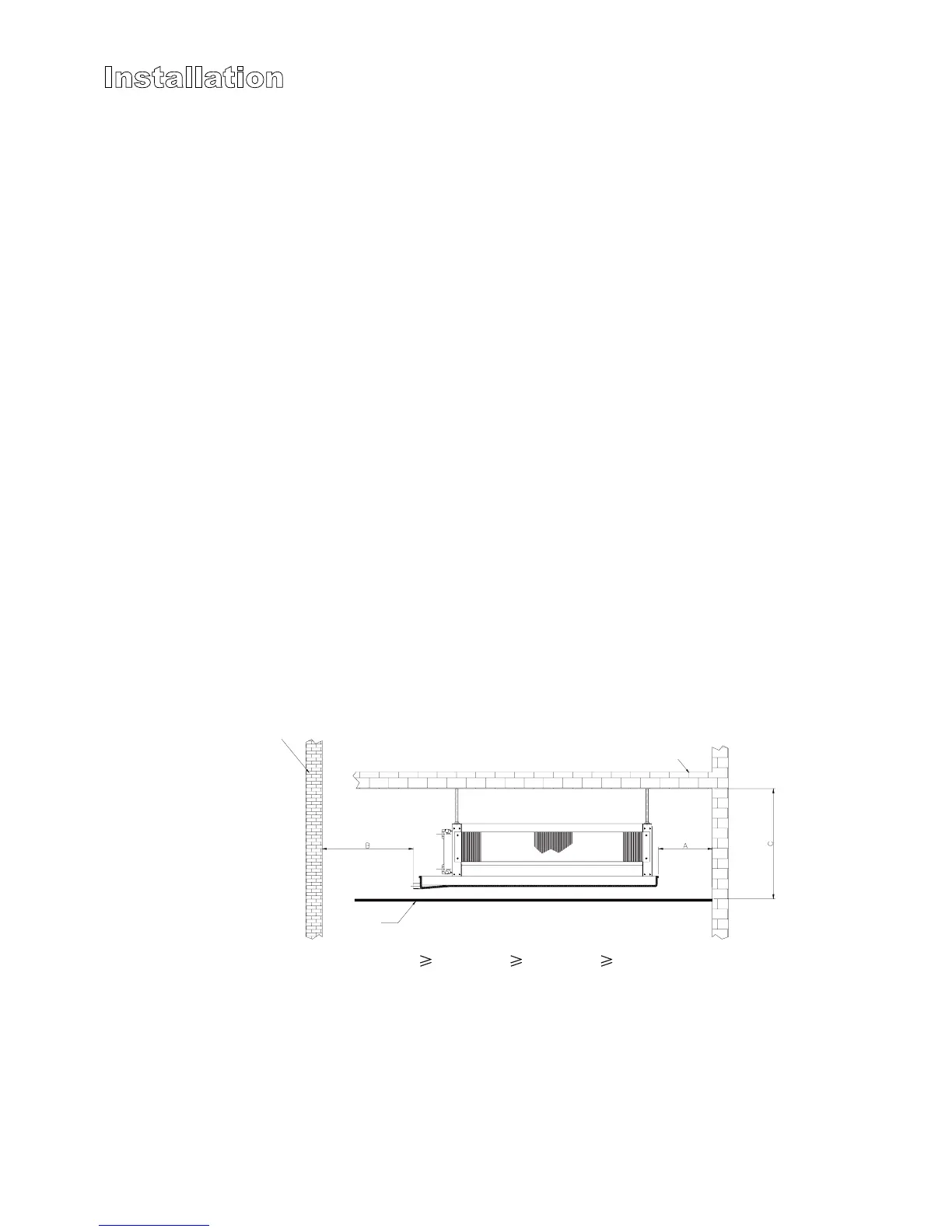

1. There must be enough space for unit installation and maintenance. Please refer to the unit’s drawings and
dimensions and g.1 for the minimum distance between the unit and obstacle.
2. Please ensure enough space for piping connection and electrical wiring.
3. Please make sure that the hanging rods can support weight of the unit.
INSTALLATION
1. The unit is designed for concealed ceiling installation.
2. There are holes on the top of the unit for hanging. Please refer to Fig.1. Fig.2 and Fig.3.
3. Make sure that the top of the unit is level.
INSULATION
1. Use proper insulation material only.
2. Chilled water pipes and all parts on the pipes should be insulated.
3. It is also necessary to insulated air ducted.
4. Adhesive for insulation should work under range 0°F (-18°C) to 200°F (93.3°C).
