IM 1005-2 5
Description
The remote user interface is designed for display, system configuration, set-up, and management of
MicroTech III unit controllers (Rooftop, Self-Contained, Rebel, Maverick II, Pathfinder, or AGZ-D Air-
Cooled Chillers).
In addition to the unit-mounted controller keypad/display, MicroTech III unit controls units can be equipped
with a remote user interface that handles up to eight units per interface. The remote user interface provides
access to unit diagnostics and control adjustments similar to the unit-mounted controller. Features include:
• Push-and-roll navigation wheel with an 8-line by 30-character display format
• Operating conditions, system alarms, control parameters and schedules are monitored
• RS-485 or KNX interface for local or remote installation
• Power from controller, no additional power supply necessary
• Supports panel mounting and wall mounting
• Digital display of messages in English language
Component Data
Physical data

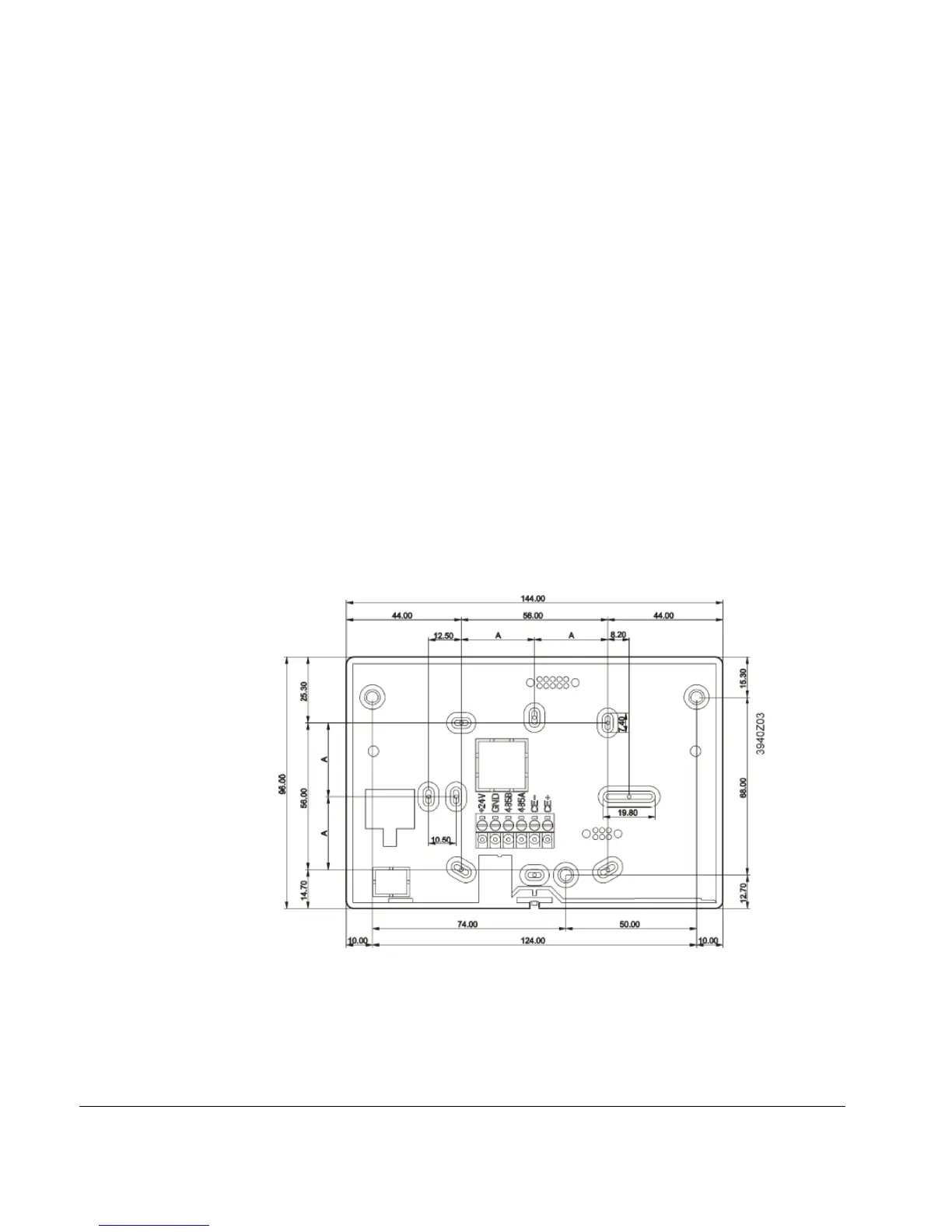

Figure 1 shows the details of the remote user interface hardware design. The overall physical layout includes:
• 144 x 96 x 26 mm size
• Plastic housing
Figure 1. Physical Dimensions
Display
• LCD type FSTN
• Resolution Dot-matrix 96 X 208
•
Backlight Blue or White, user selectable
