DC5xD MK3 GENSET CONTROLLER USER MANUAL
8
AUX. OUTPUT 3
5AMP Non-contact normal open output
AUX. OUTPUT 4
5AMP Non-contact normal open output
Excitation output
Max 1AMP DC+VE supply voltage
Switch value input
Available if connecting with Battery -
Working condition
-25-65℃
Storage condition
-40-85℃
Protection Level
IP54：when waterproof rubber gasket is added
between controller and its panel
Insulation strength
Apply AC1.5kV voltage between high voltage terminal
and low voltage terminal; The leakage current is not
more than 3mA within 1min.
Overall dimension
210mm*160mm*50mm
Panel cutout
186mm*142mm
Weight
0.85Kg

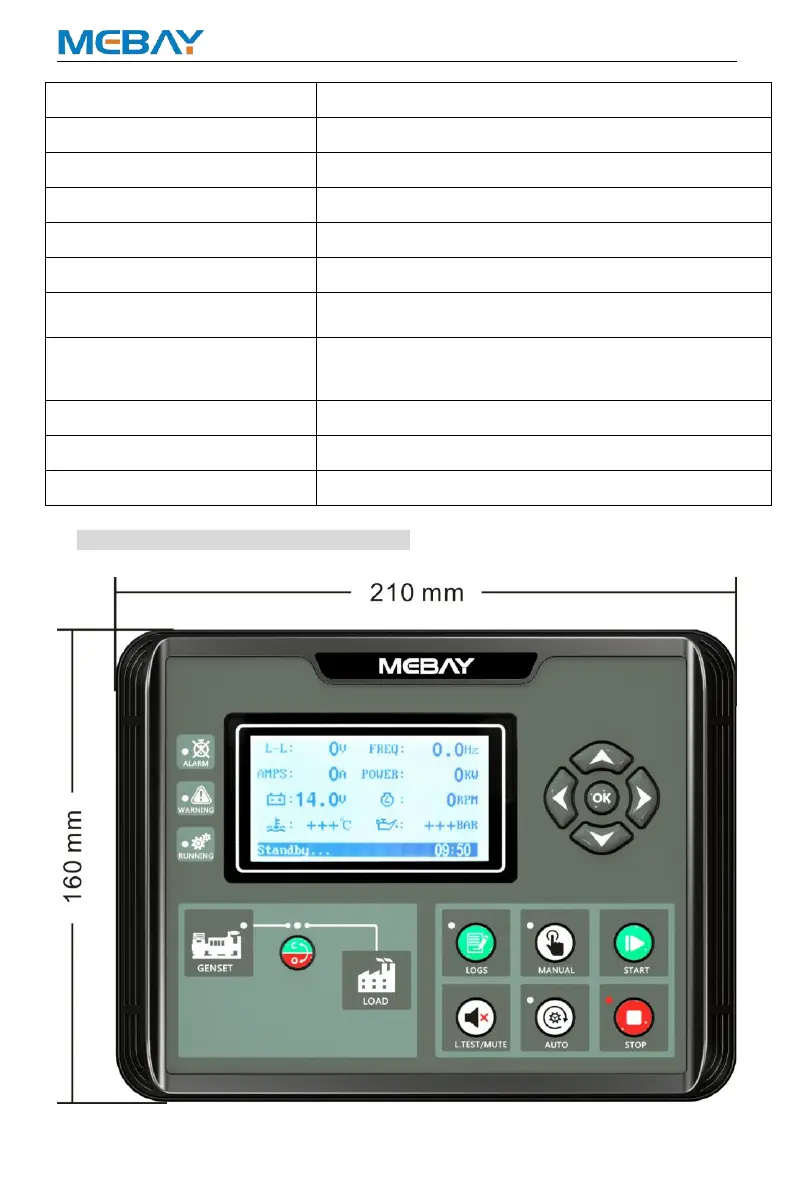

6. Overall Dimension and Wiring Diagram
 Overall Dimension:

Mebay DC52D MK3 Specifications

General

Brand	Mebay
Model	DC52D MK3
Category	Controller
Language	English
