January 2019Section 9 - Troubleshooting - 3084ES Models
ART_3147
RIGHT SIDE
LEFT SIDE
DRIVE FORWARD
111 - GRY/RED
LIFT
204 - RED/BLU
GAUGE PORT
DRIVE REVERSE
110 - GRY/BLK
HIGH TORQUE
313 -YEL/BLK
HAND PUMP
BRAKE RELEASE
STEER RIGHT
107 - ORG/WHT
HIGH SPEED
213 -YEL/WHT
TO TANK
ORLS
MAIN
RELIEF
VALVE
RIGHT FRONT A
LEFT FRONT B
RIGHT REAR B
LEFT REAR A
LEFT FRONT A
ORR
BRAKE PORT
PULL VALVE
BRAKE RELEASE
STEER RIGHT
STEER LEFT
RIGHT REAR B
ORS
LIFT PORT
LIFT RELIEF
RV1
STEER RELIEF
RV2
PRESSURE PORT
- TO PUMP -
RIGHT REAR A
LEFT REAR B
STEER LEFT
108 - GRN/RED
COUNTERBALANCE
VALVES
BACK
FRONT

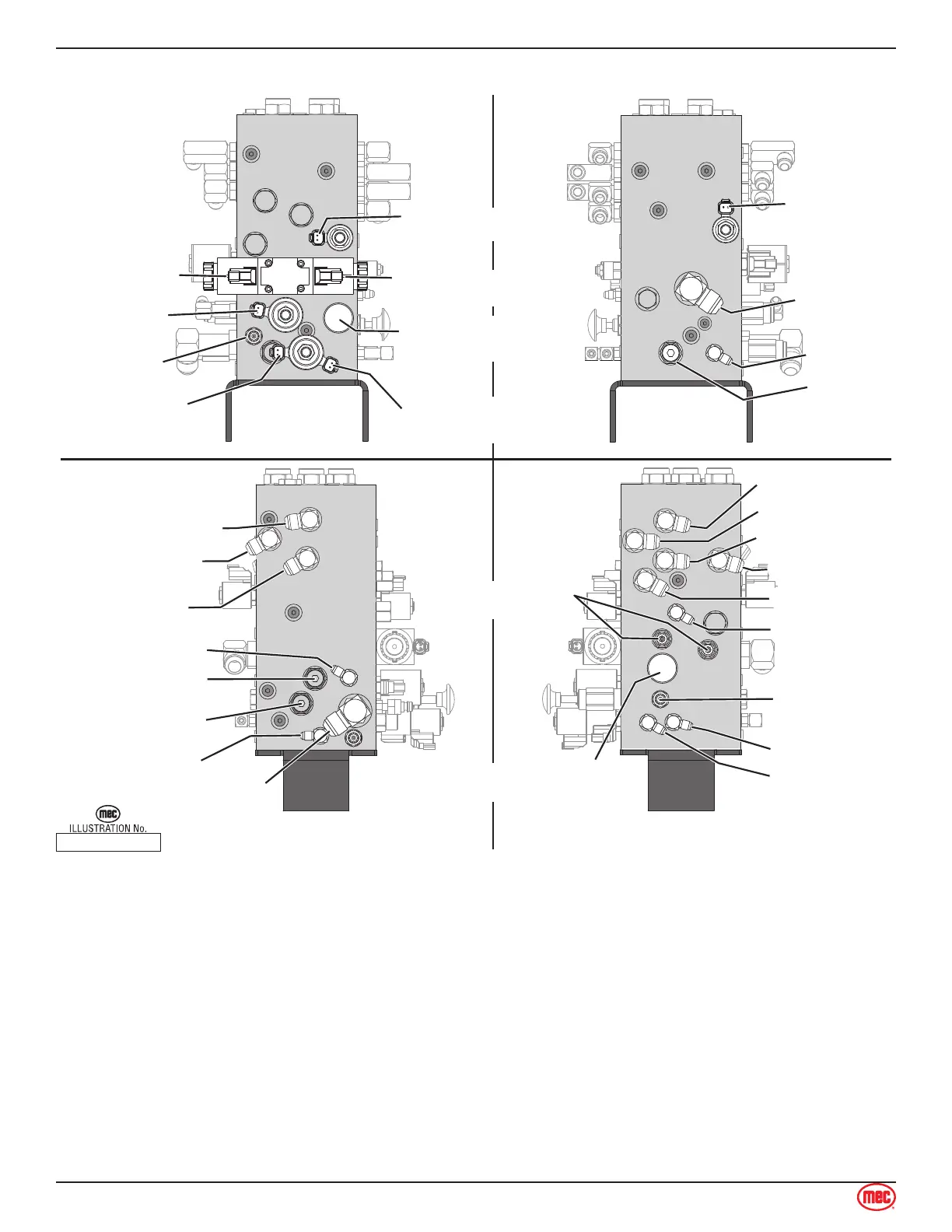

Hydraulic Manifold
3084ES
