Page 48 Speed Level Series - Service & Parts Manual
January 2019Section 6 - Electrical System

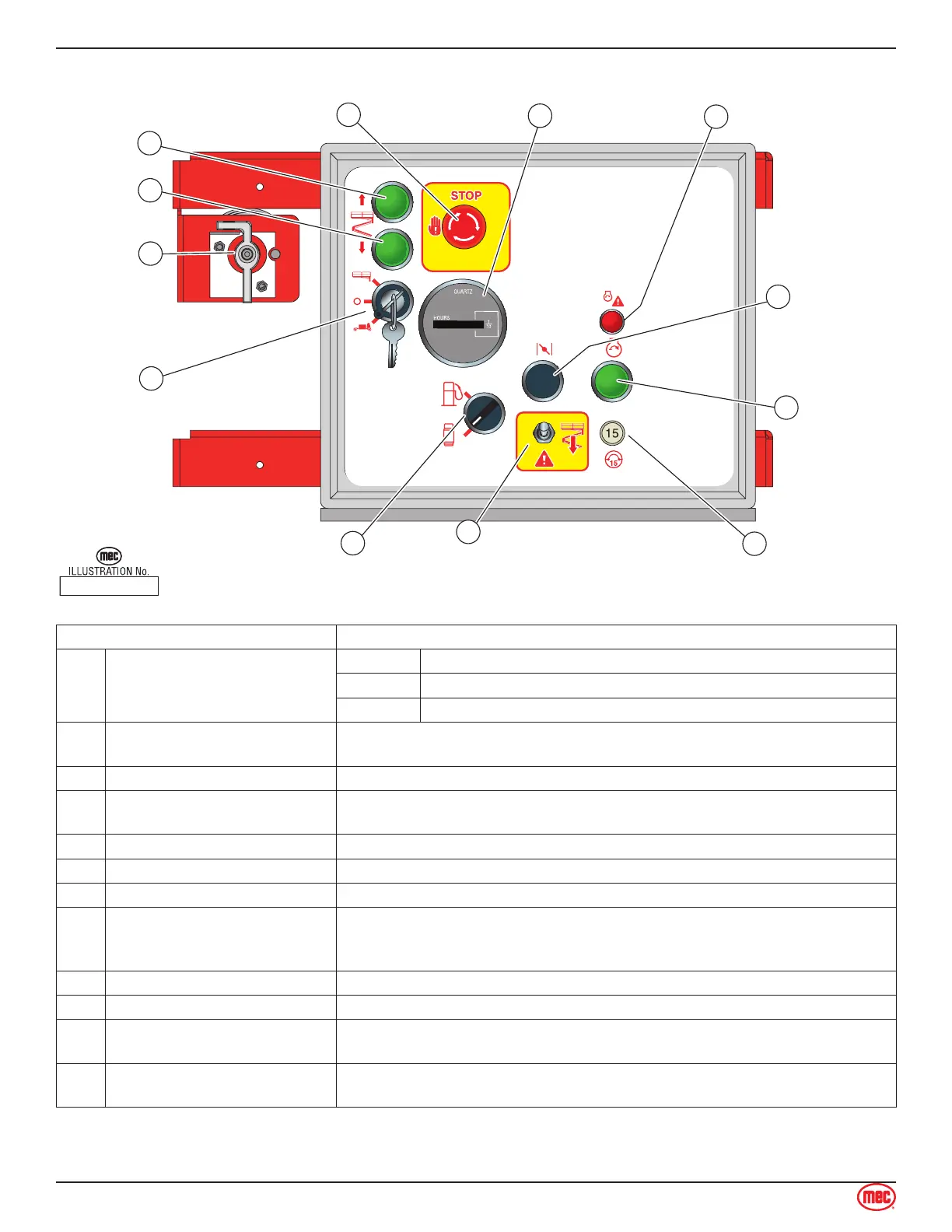

Lower Controls - 3084RT Dual Fuel/Diesel
ART_3091
Emergency Stop
Hour Meter
Circuit Breaker
5
Start Delay
8
4
Keyswitch
Lower
(Green)
Raise
(Green)
1
Fuel Select Switch
(Dual Fuel Only)
12
Battery
Disconnect
11
2
3
9
Start
6
Choke (Dual Fuel)
Glow (Diesel)
7
Emergency
Lowering
10
Control Description
1
Selector Switch (Key Can Be
Removed In Any Position)
Platform Select to operate from the platform control panel.
Base Select to operate from the base control panel.
Off Select to stop operation from either control panel.
2 Raise Button
Press and hold to elevate the platform. Release to stop elevation. Throttle
activation is automatic.
3 Lower Button Press and hold to lower the platform. Release to stop lowering.
4 Emergency Stop Switch
Press to stop all machine functions.
Turn clockwise to reset.
5 Hour Meter Indicates total elapsed time of machine operation.
6 Start Button Press to start engine. Release when engine starts.
7 Choke/glow Operate when starting in cold start conditions.
8 Start Delay Light
Prevents over-cranking of engine. When lit, starter is disabled. After
approximately 35 seconds the light
will go out and starter will operate.
9 Circuit Breaker Trips when there is excessive electrical load. Push to reset.
10 Emergency Lowering Switch Push and hold the toggle switch Down to fully lower the platform.
11 Battery Disconnect
Battery power supply. Turn OFF and padlock to secure machine from
unauthorized use.
12
Fuel Selector
(Dual Fuel Only)
Turn switch to select Gasoline or Propane.
