Page 35 Speed Level Series - Service & Parts Manual
January 2019Section 5 - Hydraulic System
Floating Axle Lock Cylinders
Note:Refer to Cylinder Repair.
Refer to Section 7 for Remove and Install instructions.
Refer to the Parts Manual Section 15 for parts list.

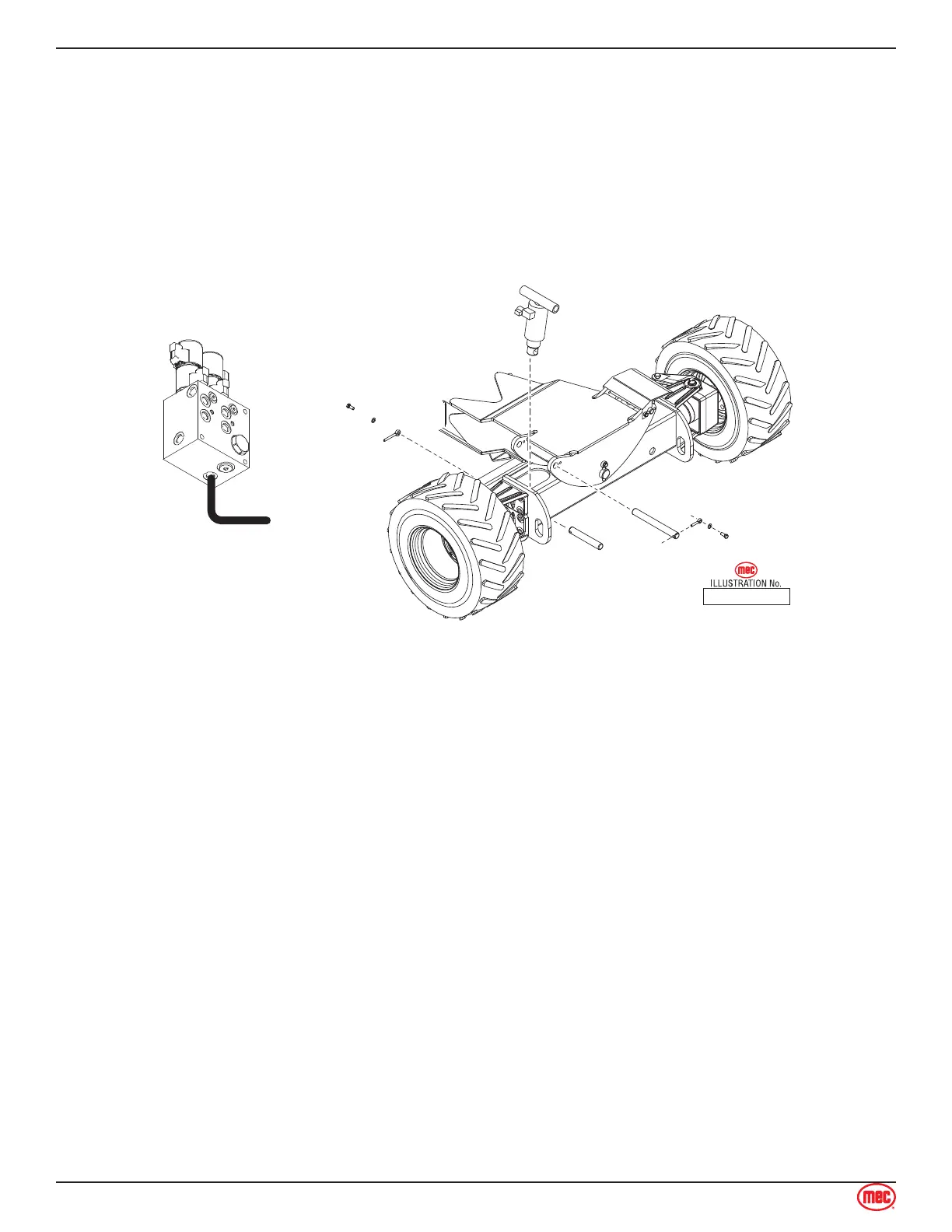

There are two (2) cylinders in the floating axle system. These cylinders allow fluid to transfer from
one side to the other while the platform is in the stowed position. When the platform is elevated, the
electrically operated valve closes, preventing fluid flow and thereby locking the cylinders.
ART_3134
to Axle Lock
Cylinders
Platform Leveling
Manifold
To Next Page
