Mec 3084RT - Page 208

Page 201 Speed Level Series - Service & Parts Manual
January 2019Section 11 - Controls

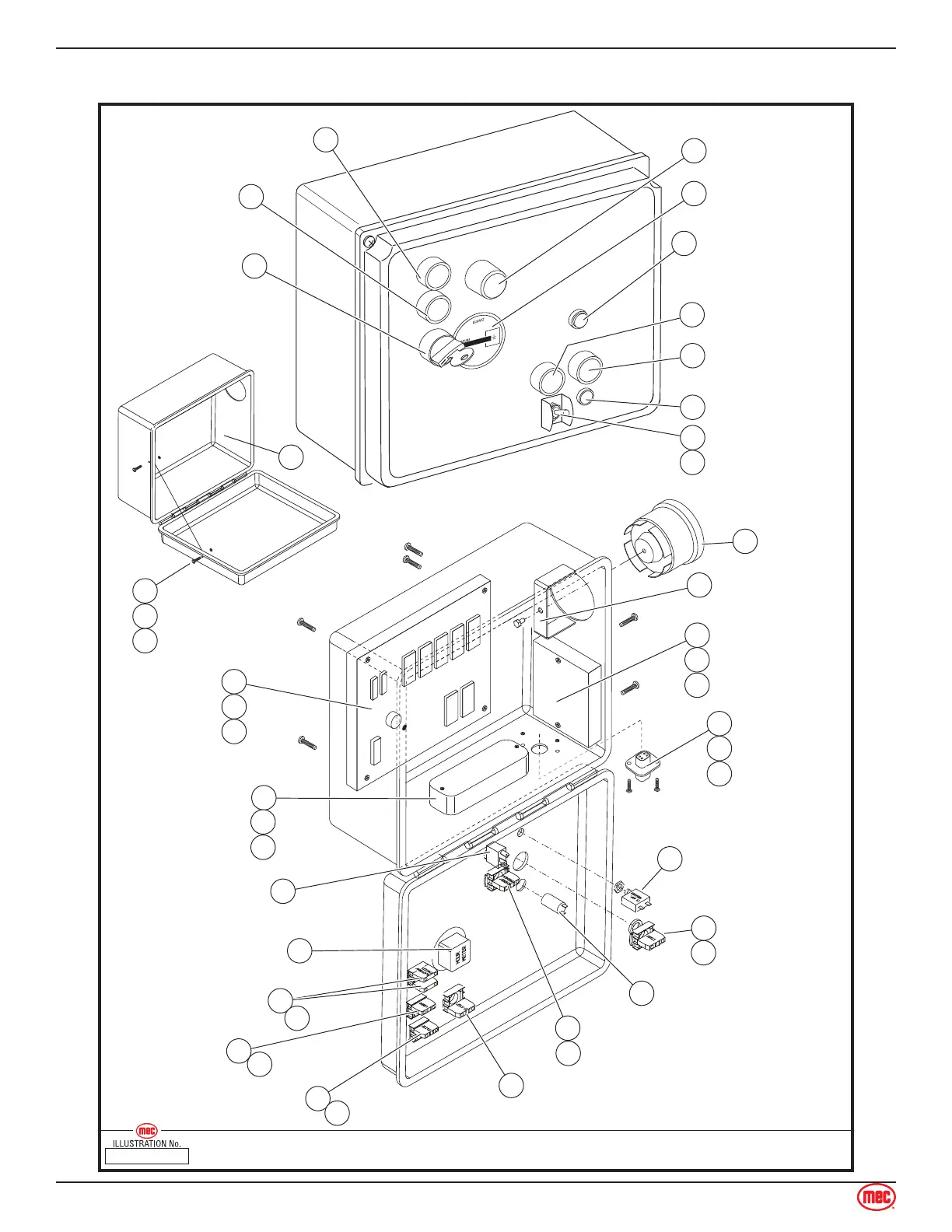

Lower Controls, 3084RT Diesel Models
ART_3105
Lower Controls, Diesel
15
Emergency Stop
Hour Meter
Hour Meter
Circuit Breaker
Emergency Lower
Toggle Switch
Emergency Lower
Toggle Switch
Emergency Stop
(complete switch)
Circuit Breaker
TBM
Alarm
Platform / Base
Selector Switch
Platform / Base - N.O.
GP400
Connector
Start - N.O.
Preheat - N.O.
Lower (Green)
Raise (Green)
Start (Green)
Preheat (Black)
Lower - N.O.
Raise - N.O.
2
2
3
2
4
11
17
11
4
11
11
8
12
13
14
15
16
6
6
8
9
9
1
25
19
22 x2
23 x2
20 x4
21 x4
24
22 x2
23 x2
17
17
17
17
11 x2
22 x2
23 x2
20 x2
21 x2
30 Sec Delay (Red)
7
30 Sec Delay (Red)
7
18
