Mec 3084RT - Page 234

Page 227 Speed Level Series - Service & Parts Manual
January 2019Section 14 - Axles
Axle Installation, Rear
ART_3120

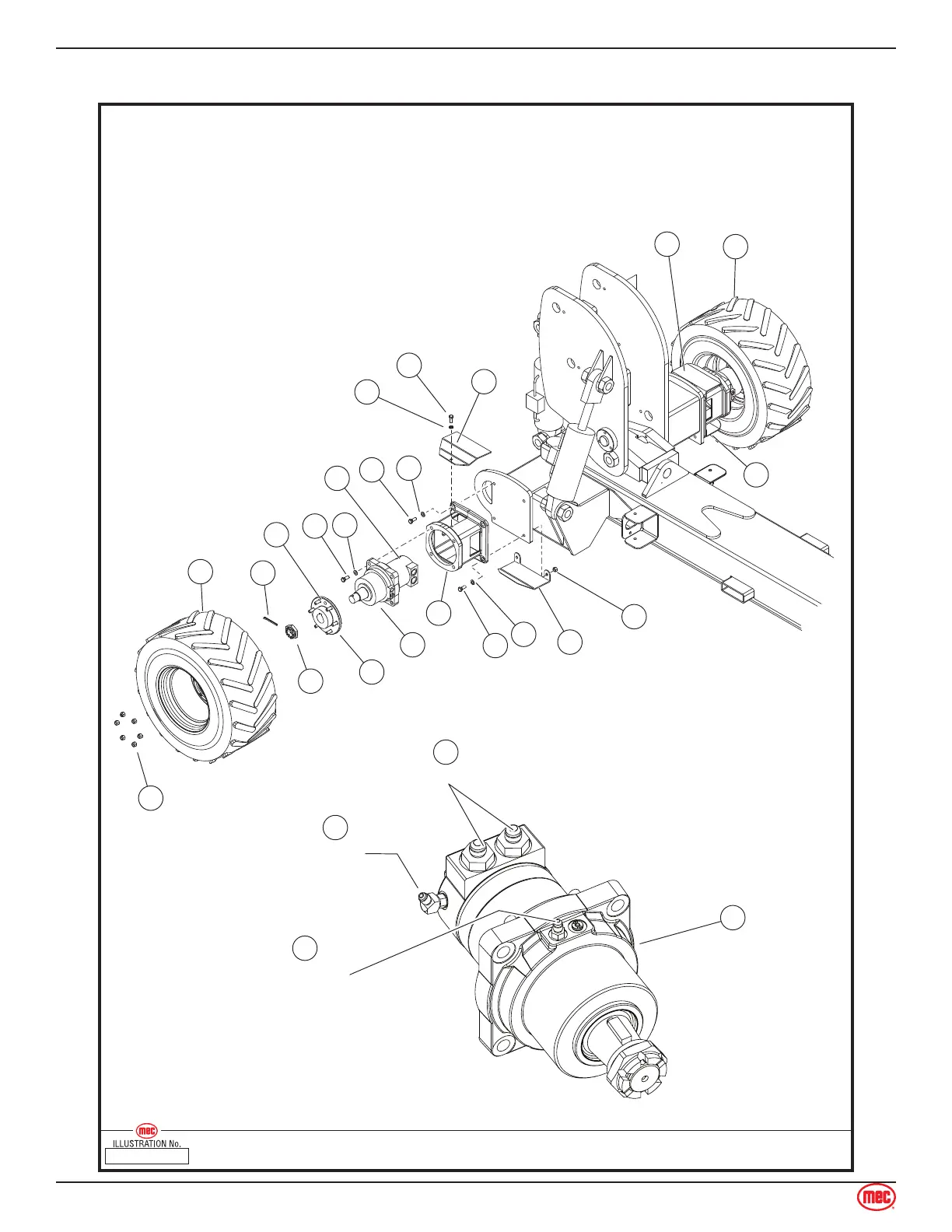

Rear Axle InstallationSpeed Level™ Sigma Lift
Rear
Hydraulic Wheel Motor
with Brake
A
B
20
7
9
16
16
2
13
1
3
14
5
5
10
6
11
15
4
4
21
20
8
12
23
22
17
18
19
Drive Ports
Case Drain
Brake Port
