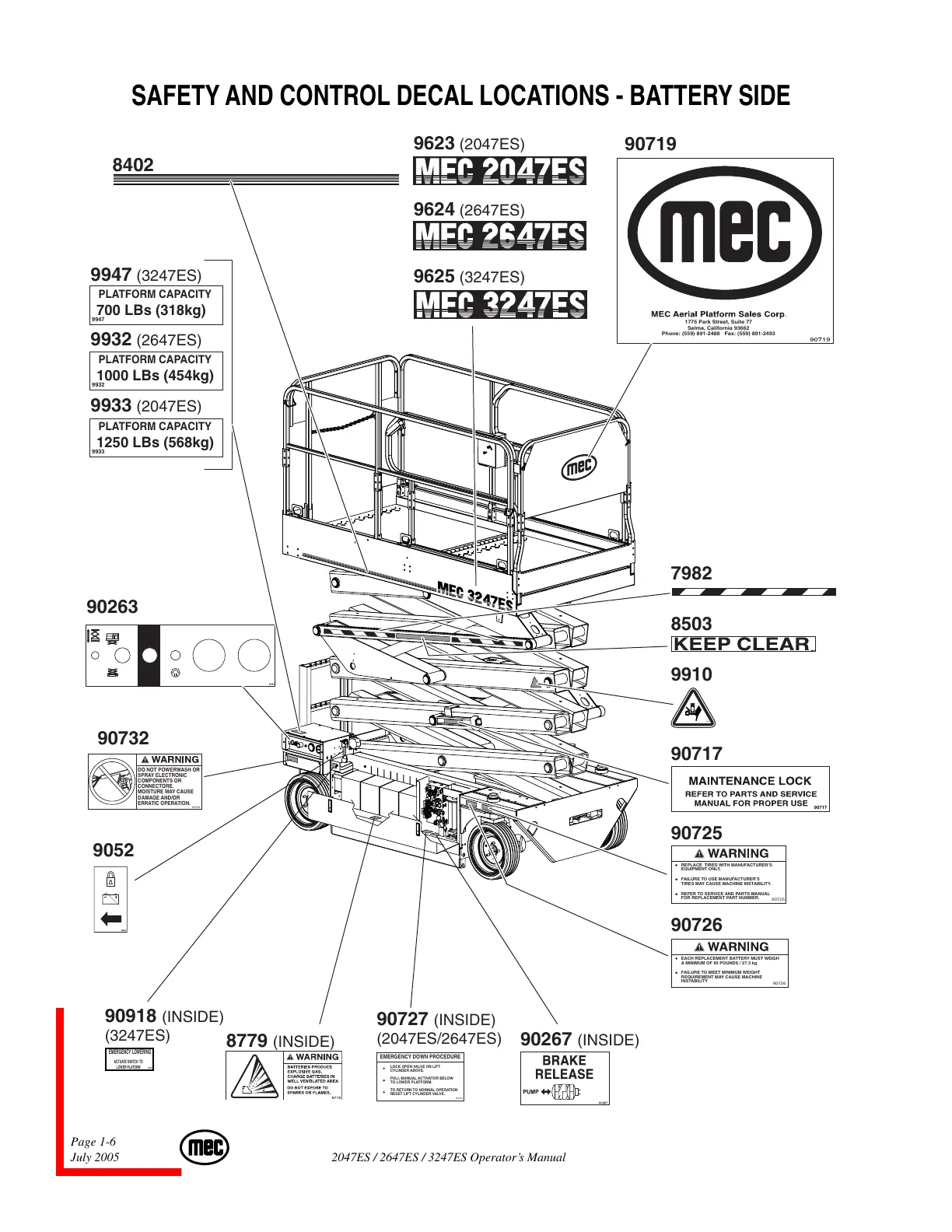

SAFETY AND CONTROL DECAL LOCATIONS - BATTERY SIDE
1775 Park Street, Suite 77
Selma, California 93662
Phone: (559) 891-2488 Fax: (559) 891-2493
90717
9623 (2047ES)
90719
9624
(2647ES)
9625 (3247ES)
700 LBs (318kg)
PLATFORM CAPACITY
9947
1250 LBs (568kg)
PLATFORM CAPACITY
9933
9932
1000 LBs (454kg)
PLATFORM CAPACITY
9947 (3247ES)
9932 (2647ES)
9933 (2047ES)
90263
90732
DO NOT POWERWASH OR
SPRAY ELECTRONIC
COMPONENTS OR
CONNECTORE.
MOISTURE MAY CAUSE
DAMAGE AND/OR
ERRATIC OPERATION.
90732
9052
8779 (INSIDE)
90918 (INSIDE)
(3247ES)
90267 (INSIDE)
90727 (INSIDE)
(2047ES/2647ES)
90726
90725
90726
EACH REPLACEMENT BATTERY MUST WEIGH
A MINIMUM OF 60 POUNDS / 27.3 kg
FAILURE TO MEET MINIMUM WEIGHT
REQUIREMENT MAY CAUSE MACHINE
INSTABILITY
REFER TO SERVICE AND PARTS MANUAL
FOR REPLACEMENT PART NUMBER.
90725
REPLACE TIRES WITH MANUFACTURER’S
EQUIPMENT ONLY.
FAILURE TO USE MANUFACTURER’S
TIRES MAY CAUSE MACHINE INSTABILITY.
EMERGENCY DOWN PROCEDURE
LOCK OPEN VALVE ON LIFT
CYLINDER ABOVE.
PULL MANUAL ACTIVATOR BELOW
TO LOWER PLATFORM.
TO RETURN TO NORMAL OPERATION
RESET LIFT CYLINDER VALVE.
90727
8402
EMERGENCY LOWERING
ACTUATE SWITCH TO
LOWER PLATORM
90918
8503
7982
9910
9910
