Page 2-3
2047ES / 2647ES / 3247ES Operator’s Manual July 2005
Control Box
Platform
Main
Platform
Deck
Base
Control
Panel
Base
Roll-out
Extension
Deck
Upper
Lift Cylinder
(3247ES)
Lift
Cylinder

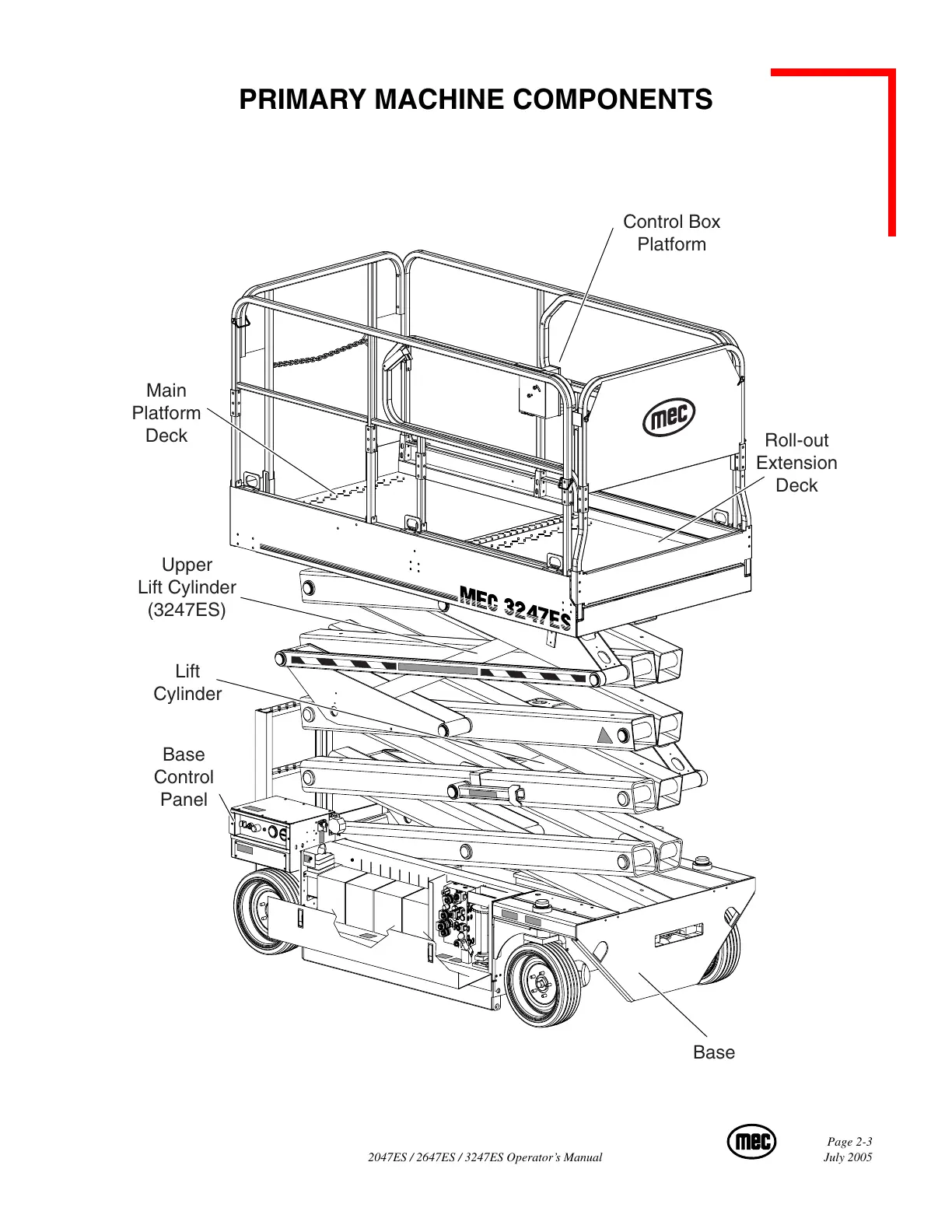

PRIMARY MACHINE COMPONENTS
