Page 2-7
2047ES / 2647ES / 3247ES Operator’s Manual July 2005

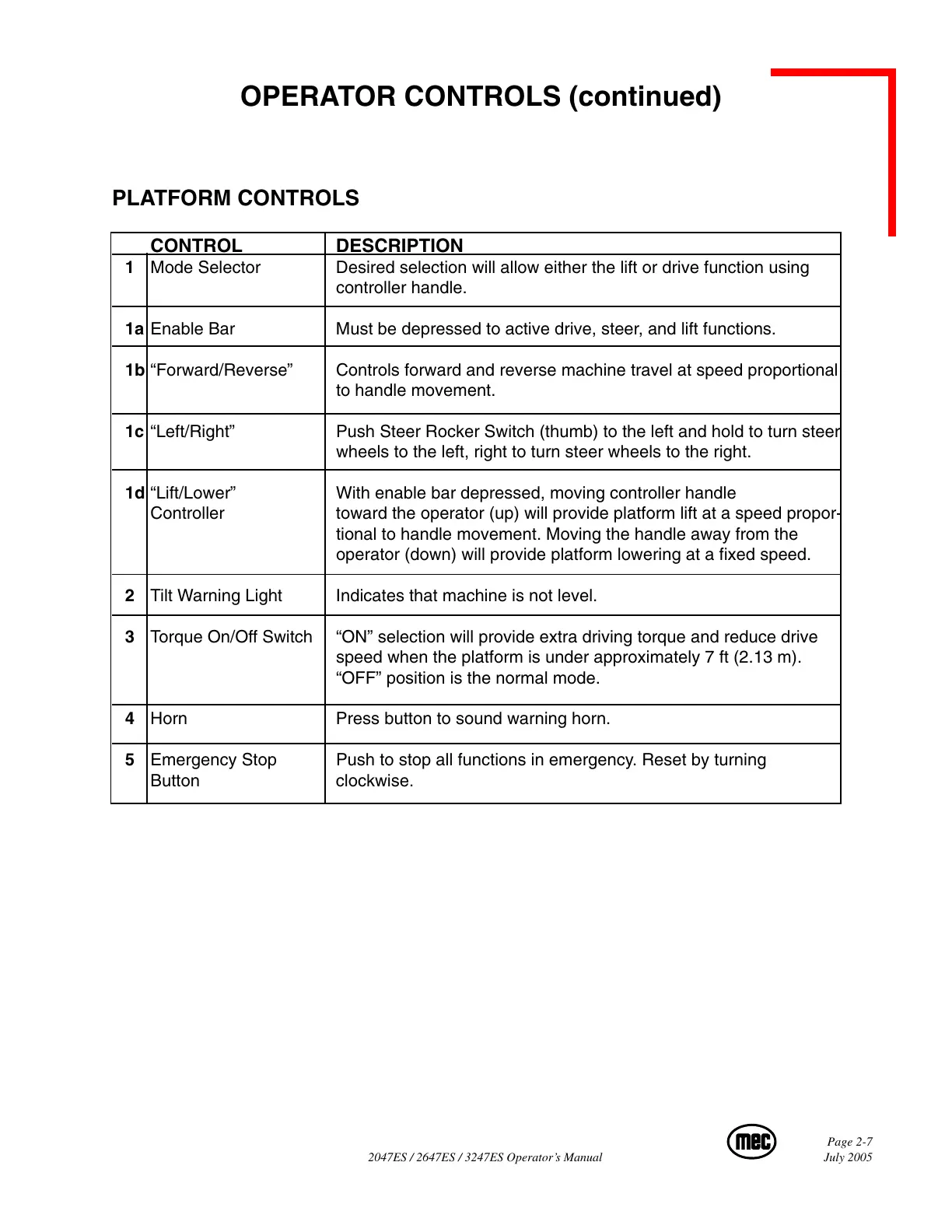

OPERATOR CONTROLS (continued)
PLATFORM CONTROLS
CONTROL DESCRIPTION
1 Mode Selector Desired selection will allow either the lift or drive function using
controller handle.
1a Enable Bar Must be depressed to active drive, steer, and lift functions.
1b “Forward/Reverse” Controls forward and reverse machine travel at speed proportional
to handle movement.
1c “Left/Right” Push Steer Rocker Switch (thumb) to the left and hold to turn steer
wheels to the left, right to turn steer wheels to the right.
1d “Lift/Lower” With enable bar depressed, moving controller handle
Controller toward the operator (up) will provide platform lift at a speed propor-
tional to handle movement. Moving the handle away from the
operator (down) will provide platform lowering at a fixed speed.
2 Tilt Warning Light Indicates that machine is not level.
3 Torque On/Off Switch “ON” selection will provide extra driving torque and reduce drive
speed when the platform is under approximately 7 ft (2.13 m).
“OFF” position is the normal mode.
4 Horn Press button to sound warning horn.
5 Emergency Stop Push to stop all functions in emergency. Reset by turning
Button clockwise.
