A - LED DISPLAY: Displays current setting, codes or errors.
B - NORYL RESIN COATING: Protects electronics from weather elements.
C - POWER PLUG: Connects 2 power wires and 2 motor wires.
D - ARM/DISARM PLUG: Connects the pull cord plug and limit switch wires.
E - INDICATOR LIGHT: Red when armed. Blinks when in sleep mode.
F - SELECTOR BUTTON: Toggle through to view clay counter, lifetime counter, resettable
counter, battery voltage and rmware version. Press and hold 5 seconds to reset the
counter when on the counter screen.
Before you begin using the Smart Series, we recommend
you look over your control panel and compare it with the
picture below. Identify all the major components and
codes listed on the next pages.
GET TO KNOW THE SMART SERIES
A
C
D
E
F
B

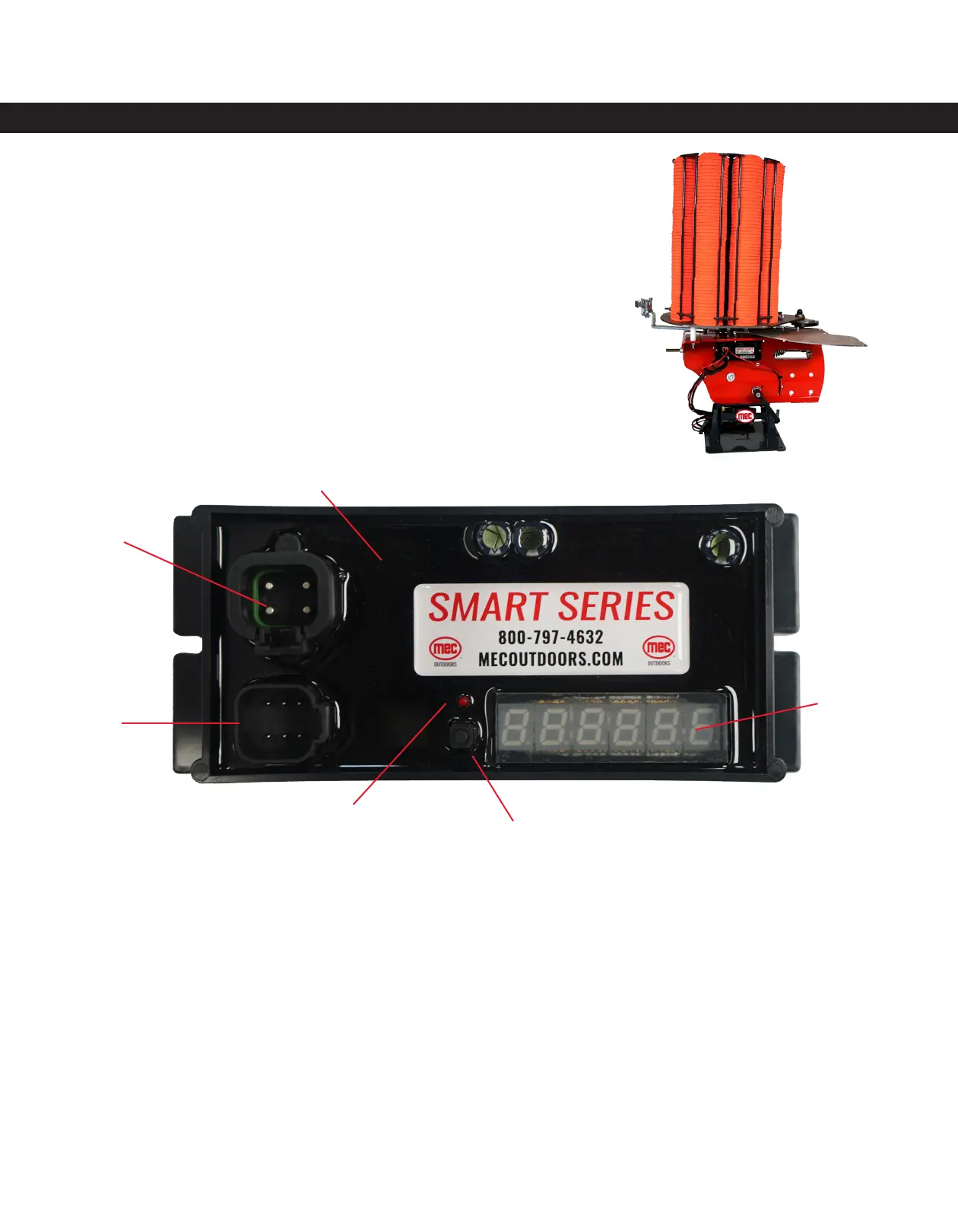

Shown: 300E Smart Series
Standard Item #120300ES1
