DER1 digital regulator instruction manual - rev. 05 - pag. 7

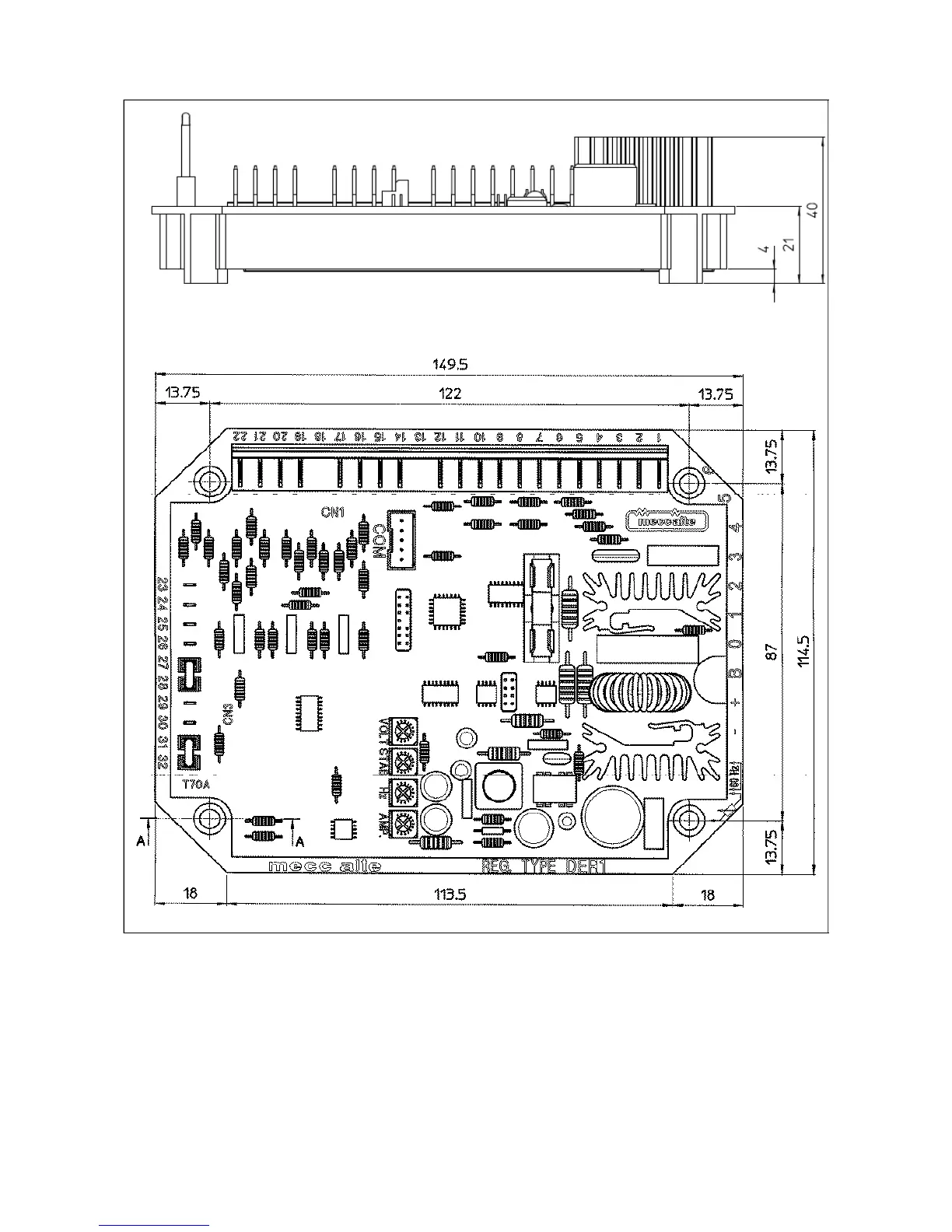

1. Overall dimensions drawings
dimensions in mm
Fig 2
2. Connections
The digital regulator connections depend on the application and excitation system.
Figure 1 shows the functional aspect of the connection points to the regulator
An error in connection may have deadly consequences for the unit.
Carefully check to make sure that all connections are precise and in accordance with the attached drawings,
before turning on the power.
