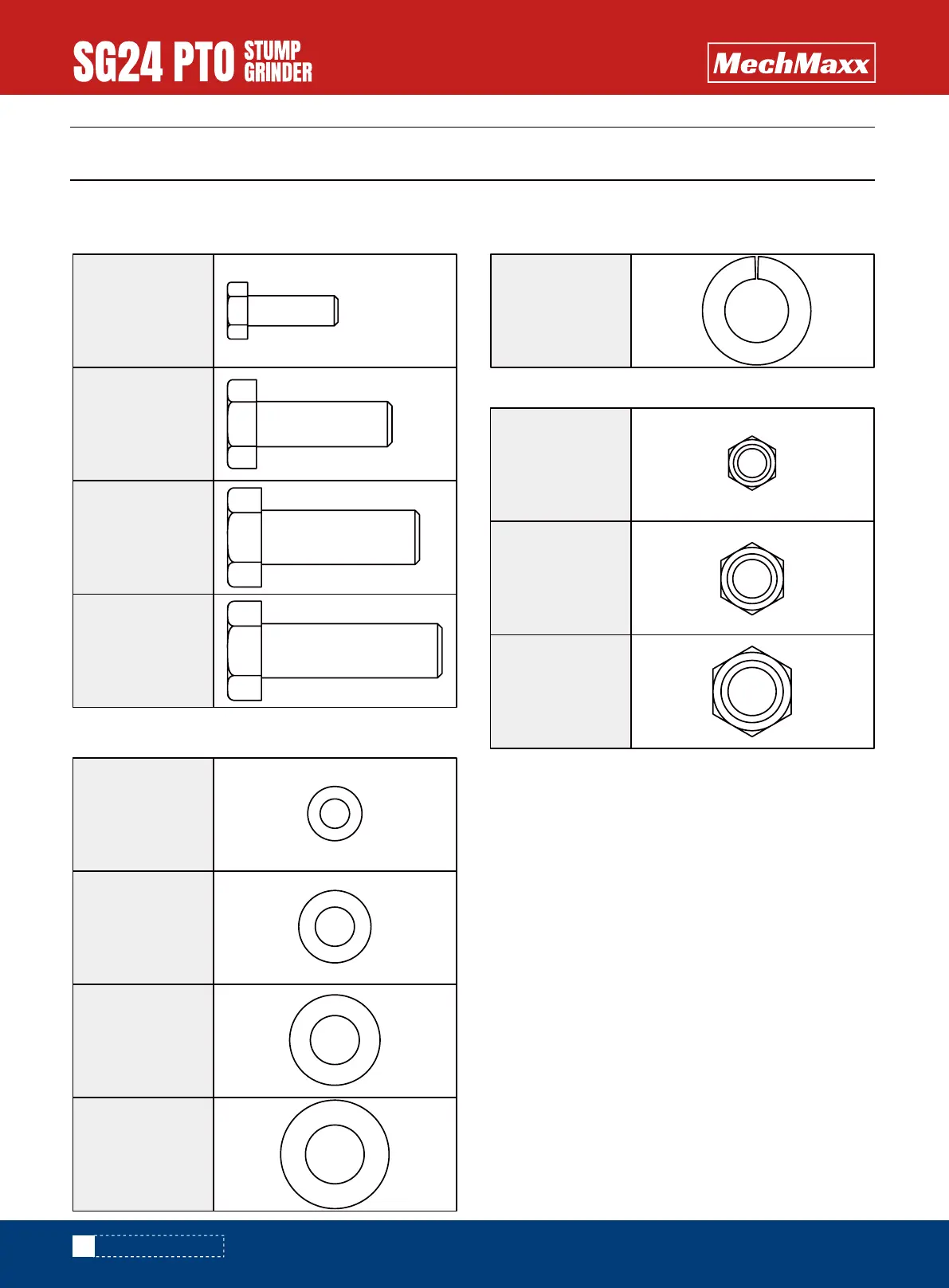

TO-SCALE HARDWARE
TO-SCALE HARDWARE
Hardware graphics are printed at 1:1 scale for ease of identification. Simply place the hardware over the image in the
tables to verify it is the correct size.
M8 X 30mm
Hex bolt
3X
M6 X 20mm
Hex bolt
2X
M10 X 35mm
Hex bolt
2X
M12 X 40mm
Hex bolt
4X
nut M8
Hex lock
3X
10
Flat washer
2X
6
Flat washer
6X
8
Flat washer
6X
12
Flat washer
4X
12
Spring washer
4X
2X
nut M10
Hex lock
2X
nut M6
Hex lock
