MechMaxx SG24 - Manual Tube

ASSEMBLY
10
www. mechmaxx.com

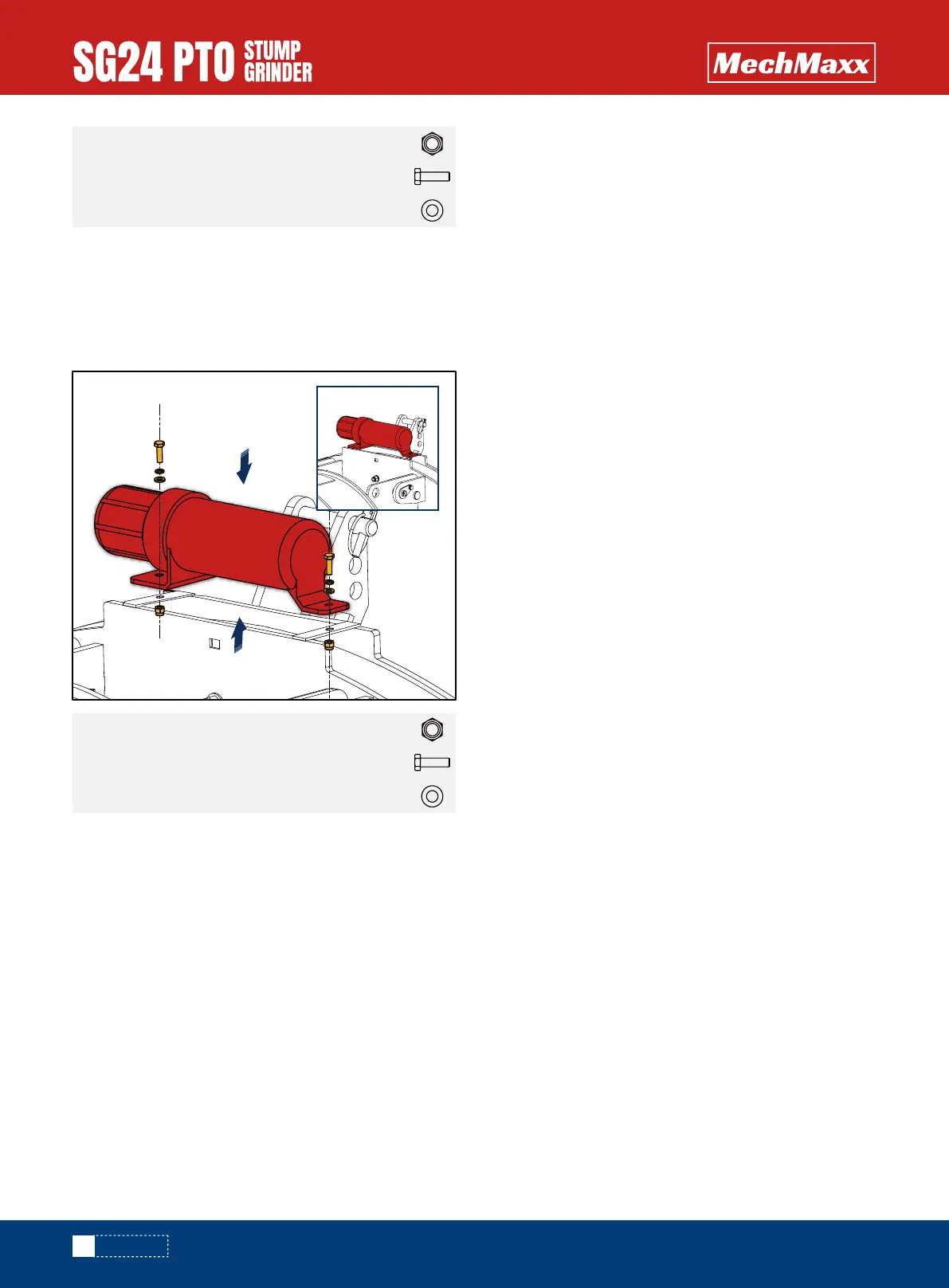

Using the hardware listed below, assemble the manual
tube to the back frame as shown.Remove the cap from
the manual tube to gain access to the centre mounting
hole.
MANUAL TUBE
Hex lock nut M102X
Hex bolt M10 X 35mm
Flat washer 10
2X
2X
Hex lock nut M62X
Hex bolt M6 X 20mm
Flat washer 6
2X
2X
