Panel Description

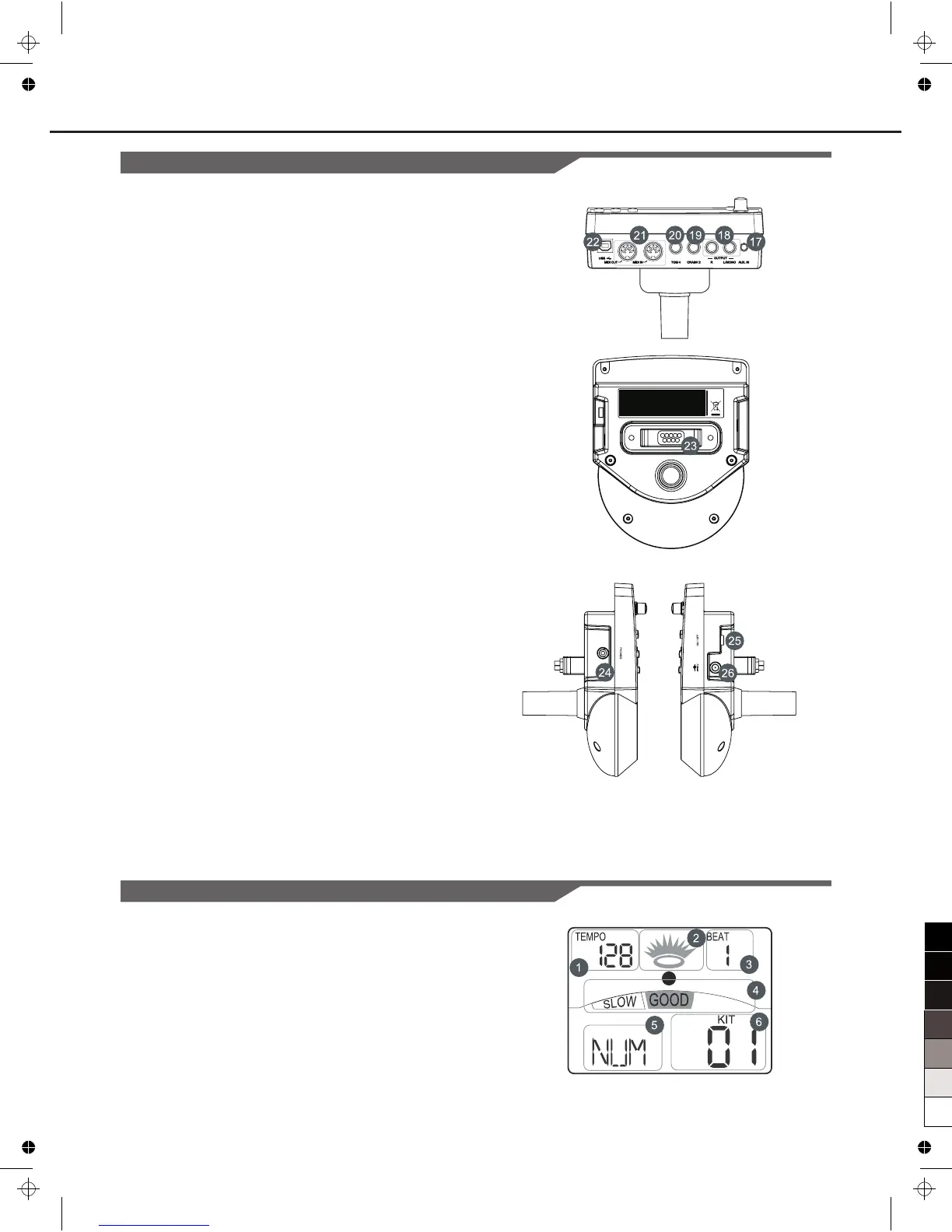

Rear Panel & Side Panel
17. AUX IN Jack(1/8”)
This stereo input jack is for an external sound
source, such as an MP3 or CD player.
18. LINE OUTPUT Jacks(1/4”)
Stereo output connection to an audio system or
drum amplifier.
19. CRASH 2 Jack(1/4”)
Input connection for Crash 2 (dual-zone).
20. TOM 4 Jack(1/4”)
Input connection for Tom 4 (dual-zone).
21. MIDI Connectors (IN, OUT)
These ports allow communication with other
products equipped with a MIDI interface.
22. USB Connector
This port is used to connect to a computer (MIDI
In/Out via USB).
23. PAD Connectors
Input connections for Kick, Snare, Tom, Cymbal
pads and Hi-Hat control pedal.
24. PHONES Jack(1/8”)
This stereo jack is used to connect headphones to
the unit.
25. POWER Switch
This switch turns the power on and off.
26. DC IN Jack
Connect the included DC 9V power adaptor.
Display
1. Tempo/Measure
2. Hitting Indicator
3. Beat Count
4. Indicators for Learning
5. Indicators for Menus (Such as UTILITY, REC, etc.)
6. Current Mode and Parameter Display
5
