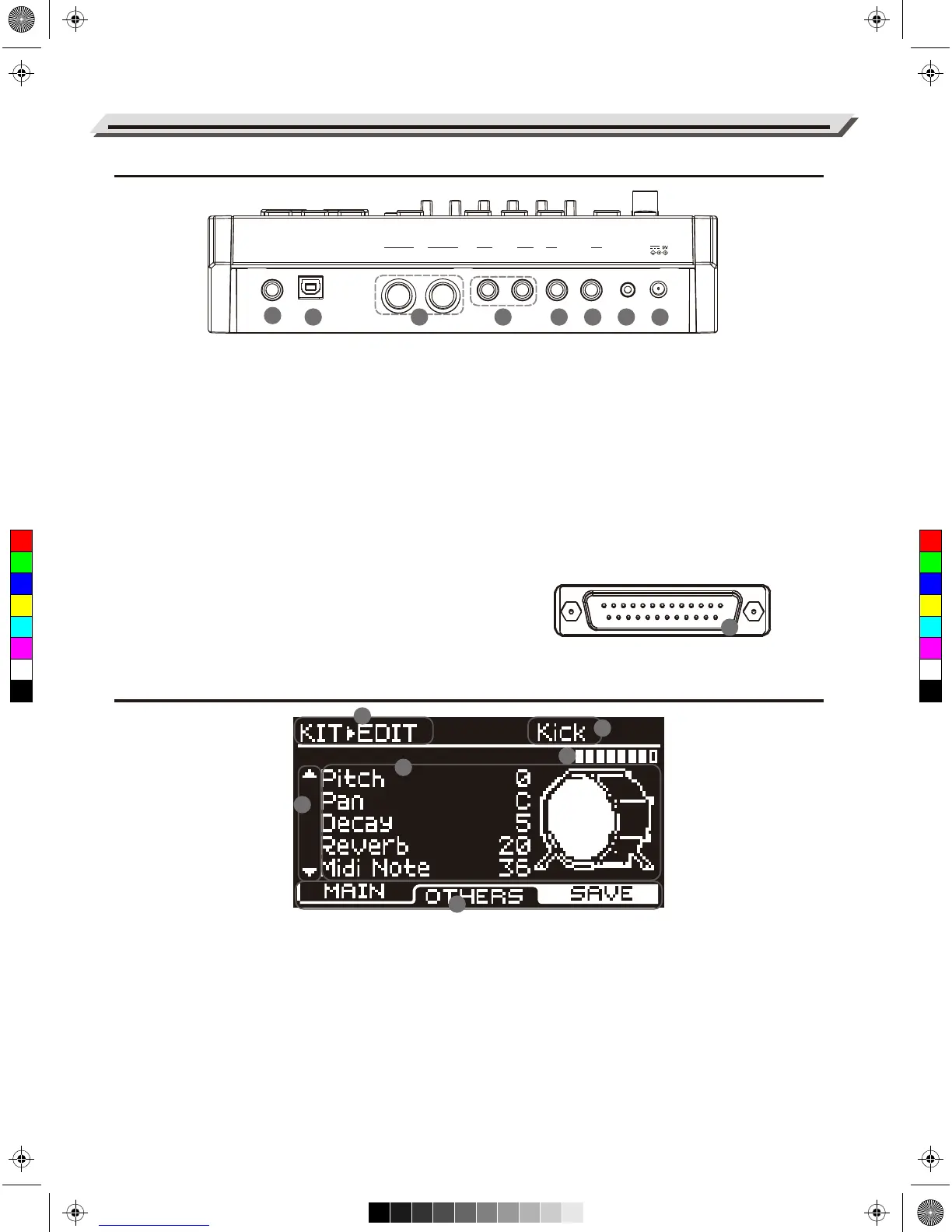

Panel & Display Description
Rear Panel
LCD Display
18. PHONES jack (1/4”)
Connect a pair of stereo headphones to detect all output
sounds.
19. USB MIDI jack
Connect to PC and transmit MIDI data.
20. MIDI jacks (IN, OUT/THRU)
Connect an external MIDI sequencer to receive or transmit
MIDI data.
21. OUTPUT jacks (L/MONO, R)(2 x1/4”)
Connect to an audio system or amplifier. Use the L/MONO
and R jacks for stereo output or just the L/MONO jack for
mono output.
22. TOM 4 jack (1/4”)
Connect an additional Tom 4.
1. Menu
Display the current menu, such as “KIT”, “SONG” and
“COACH” etc.
2. Trigger Pad Name
Display the selected trigger pad name, such as “Kick”,
“Snare Head” and “Snare Rim” etc.
3. Velocity of Pad Strike
Display the velocity (force) at which the pad is struck.
4. Prompt to Move Cursor Up/Down
Prompt to press the [∧]/[∨] buttons to view more
parameters.
5. Detailed Parameters
Display detailed parameter settings.
6. [F1]/[F2]/[F3] Indicators
Display functions of the [F1] ~ [F3] buttons.
23. CRASH 2 jack (1/4”)
Connect an additional Crash 2.
24. AUX IN jack (1/8”)
Connect an external audio player, such as an MP3.
Music from the external player will be transmitted to
the module, and you can play along.
25. DC IN jack
Connect the specified power adaptor.
26. TRIGGER INPUT jack
Insert the dedicated trigger cables here, to connect
the pads and pedals.
