Panel Description
1. [VOLUME] Knob
Adjust the headphones volume level.
Note:
Rotate the [VOLUME] knob counter-clockwise to the
minimum position before power on.
2. [POWER] Button
Press this button to turn the module on/off.
3. [KIT/VOICE] Button
Press this button to enter kit mode.
Long-press it to enter voice mode.
4. [SONG/REC] Button
Press this button to enter song mode.
Long-press it to enter record mode.
5. [START/STOP] Button
Start/stop playing songs.
6. [CLICK] Button
Start/stop the click function; enter the click setting mode.
7. LCD Display
Display the names and settings information.
8. [TEMPO] Button
Adjust the tempo value.
9. [DBT] (DOUBLE BASS TRIGGER) Button
Turn DBT function on/ off.
10. [COACH] Button
Enter coach mode.
11. [DRUM OFF] Button
Mute/unmute the drum part in a song.
12. [UTILITY] Button
Enter the utility setting mode.
13. [<]/[>]Button
Gradually set parameter values.
14. [PAGE] Button
Switch between the settings of a function.
15. [SAVE/ENTER] Button
Save the drum kit / pad settings.
16. DATA DIAL
Set parameter values.

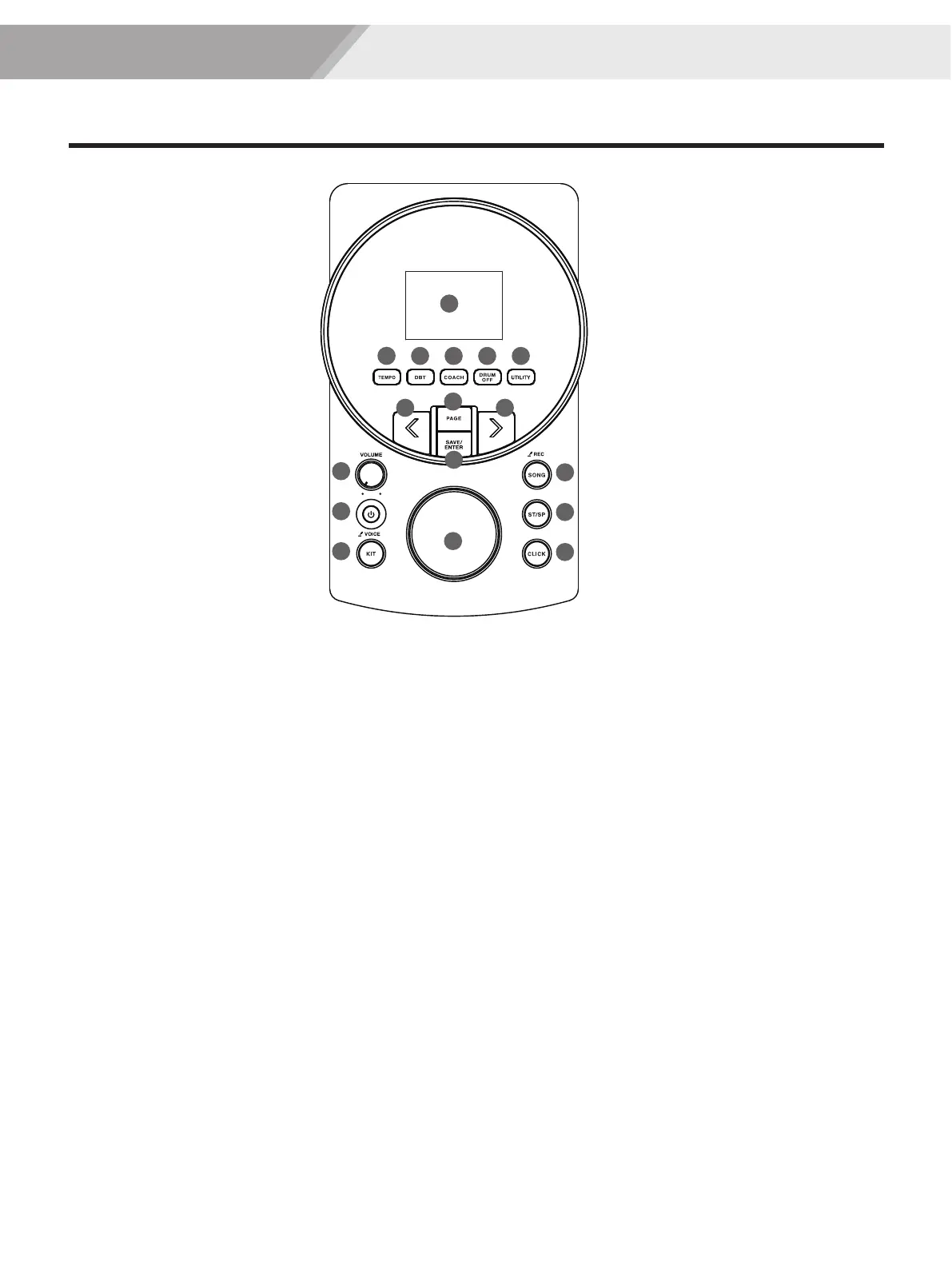

Front Panel
