6
Panel Description

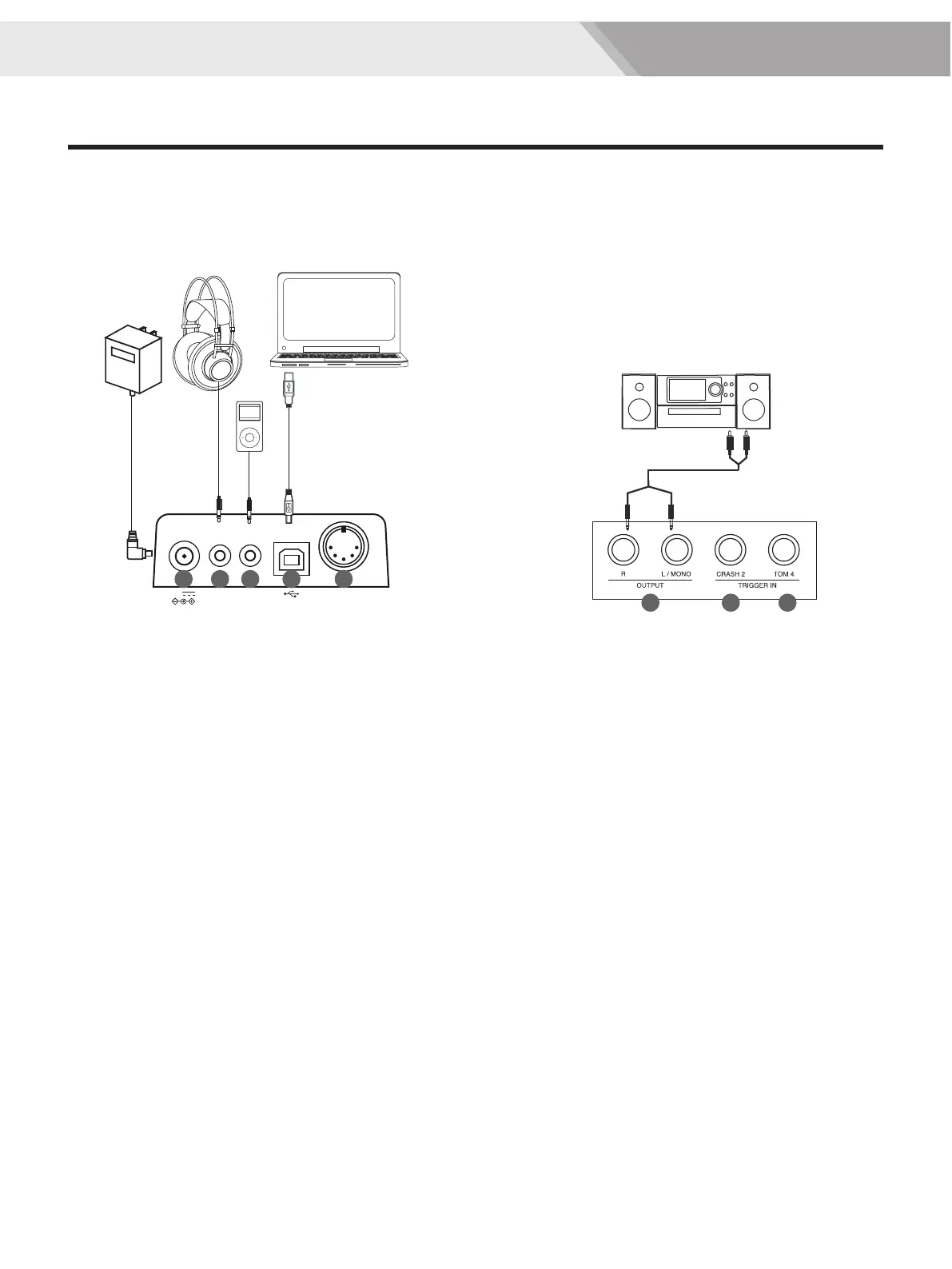

Side Panel (Connection)
21. MIDI OUT Terminal
For transmitting MIDI data to external MIDI device.
22. OUTPUT jack (L/MONO, R) (2 x1/4”)
For connecting an audio system or amplifier.
For stereo output use both the L/MONO and R jacks.
For monaural output use the L/MONO jack.
23. CRASH 2 jack (1/4”)
For connecting additional Crash 2.
24. TOM 4 jack (1/4")
For connecting additional Tom 4.
17. POWER jack
For connecting the specified power adapter.
18. PHONES jack (1/8”)
For connecting a pair of headphones.
19. AUX IN jack (1/8”)
For connecting external audio player, such as an MP3.
You can enjoy playing the drum along with your favorite
songs.
20. USB MIDI Terminal
For connecting to a computer.
Note: Only for transmitting MIDI data.
Note:
To prevent malfunction and equipment failure, always turn down the volume and turn off all the units before making any
connection.
MIDI OUTAUX IN
PHONES
9V
18 19 2017
21
22 23 24
