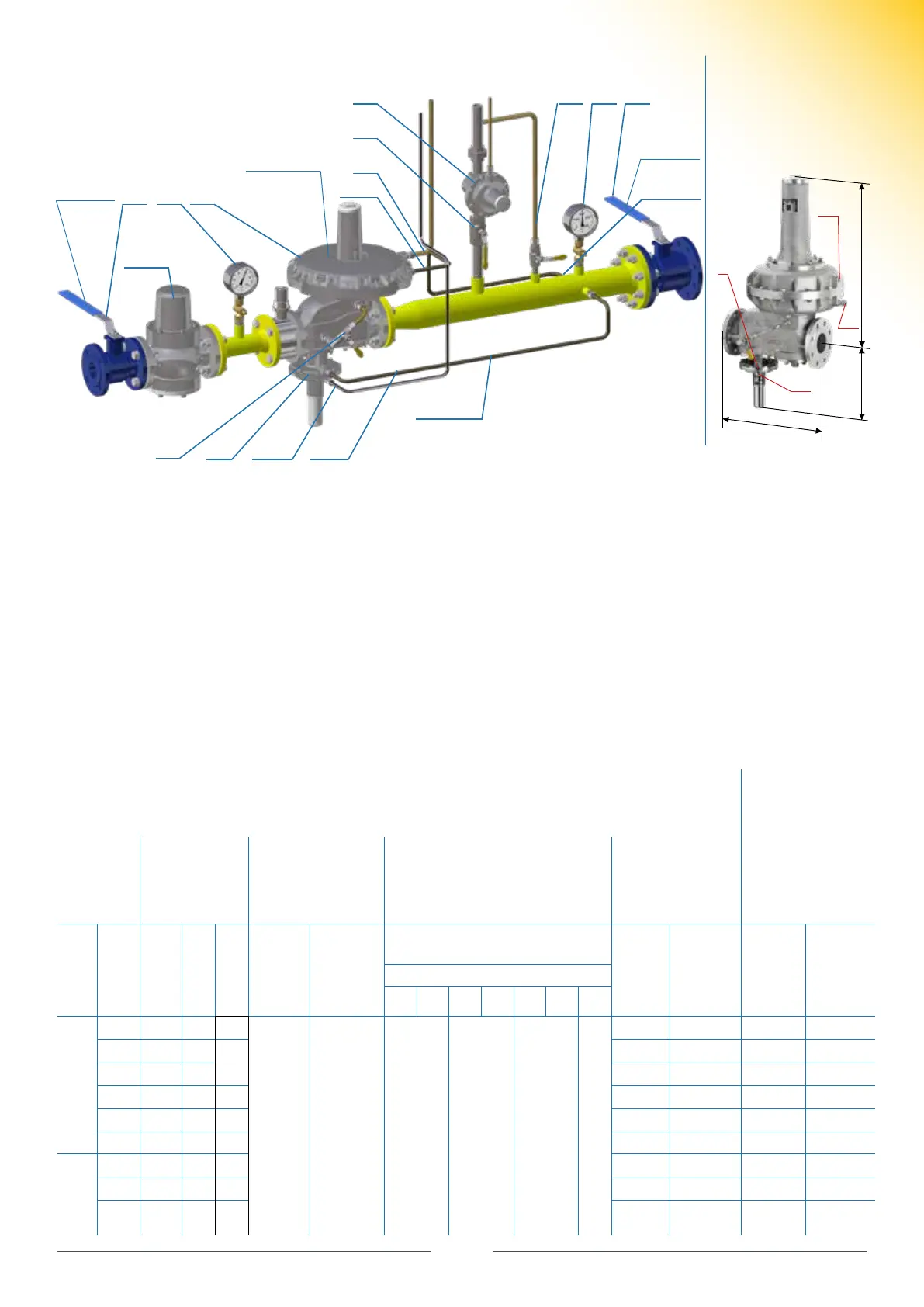

7.01 7.02 7.03
7.06
7.07 (A)
7.08 (I)
7.04 (A)
7.05 (I)
7.10
7.11 7.127.09
7.13
7.28
Breather lines (items 7.04 / 7.07) may not be required
if breather valves or safety diaphragms are being used.
The measuring lines (items 7.05 / 7.08) must be connected in a pipeline section with a steady flow. There must
be no installations that cause flow interference such as shutters, expansions, manifolds, junctions, isolation
valves etc. directly upstream and downstream of the measurement point.
The maximum flow rate at the measuring point must not exceed 25 m/s, depending on the system conditions.
The maximum flow rate at the measuring point must not exceed 25 m/s, depending on the system conditions.
In certain system circuits, such as gas control systems for gas motors and in gas burners, higher flow rates
than 25 m/s are also possible. Please contact us.
The measuring line must be connected to the pipeline or to the measuring point separately, laterally or at the
top for each device (1 gas pressure regulator (item 7.03); 1 integrated SSV (item 7.06)).
The SSV measuring line (item 7.08) must always be connected upstream of the first shut-off valve (item 7.13)
on the outlet side in such a way that it cannot be shut off.
The SSV (item 7.06) can be rotated to any position.
Measuring
point
Measuring
point
Fig. 7.1
Filter
DF100
Anschluss
SAV Öffnungs-
durchmesser /
connection
SSV opening diameter
(mm)
Nennweite /
nominal
size
Abmessung /
dimension (mm)
Anschluss Regler /
connection Regulator
Anschluss Regler
Öffnungsdurchmesser /
connection Regulator opening
diameter (mm)
Anschluss SAV /
connection SSV
DN X Y Z
Impuls-
leitung /
impulse
line (I)
Atmungs-
leitung /
breathing
line (A)
Impulsleitung / impulse line (I)
Atmungsleitung / breathing line (A)
Impuls-
leitung /
impulse
line (I)
Atmungs-
leitung /
breathing
line (A)
Impuls-
leitung /
impulse
line (I)
Atmungs-
leitung /
breathing
line (A)
Diaphragm cover Ø
160 205 275 330 385 390 485
RS250
25 328 269 230
RP 3/8" RP 3/8“ 3 4 6 8
RP 1/4" RP 1/4" 2 3
50 348 282 230 RP 1/4" RP 1/4" 2 3
80 406 305 310 RP 1/4" RP 1/4" 2 3
100 421 315 350 RP 1/4" RP 1/4" 2 3
150 716 386 480 RP 3/8" RP 3/8" 4 2
200 784.5 400 600 RP 3/8" RP 3/8" 4 2
RS251
50 406 305 310 RP 1/4" RP 1/4" 2 3
80 644 311 410 RP 1/4" RP 1/4" 2 3
100 716 386 480 RP 3/8" RP 3/8“ 4 2
Connection
X
Y
Z
I
A
I
A
R/RS 250/251
Ball valve
Ball valve
