ISOLATE FROM ELECTRICAL SUPPLY BEFORE REMOVING COVER
The two mains supply fuses are located on the underside of the board in the
position shown.
The third fuse is an anti surge fuse. Fuse type and ratings are marked adjacent
to the fuse holders or alternatively see page 14.
Undo the four captive retaining screws to remove the cover.
Prior to replacement ensure that the rubber seal
set into the underside cover has not
been disturbed.
Retighten cover fully ensuring that
the cover is seated properly.

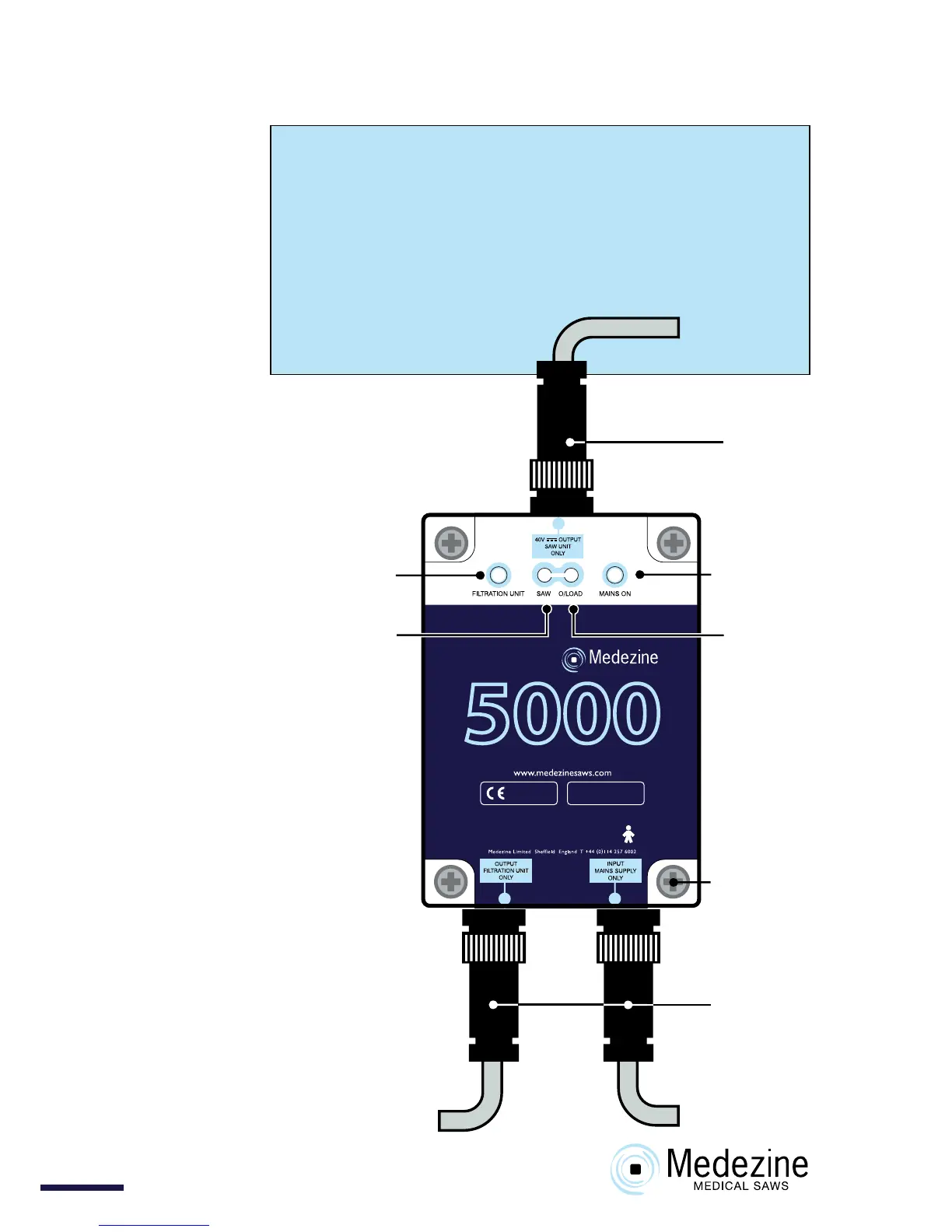

Status Indicator
Filtration Unit Output
energized when lit.
Captive Retaining Screws
Enclosure Cover
Status Indicator
Saw Unit Output
energized when lit.
Status Indicator
Mains Supply
energized when lit.
Status Indicator
Saw Unit overload detected
when flashing. Complete
system will shut down. Then
Auto-reset to “System off”
status in approx. 20 seconds.
Waterproof Electrical
Connectors
Screw Locking-Non
Interchangeable
Waterproof Electrical
Connector
Screw Locking-Non
Interchangeable
Autopsy Saw
MODE OF OPERATION CONTINUOUS WITH
AUTO -REST OVERLOAD PROTECTION
CONSTRUCTED TO IEC 6061-1
POWER SUPPLY PROTECTED TO IP65
93/42/EEC
IEC/EN 60601-1
EMC 2004/108/EC
DANGER HIGH VOLTAGE
ISOLATE FROM MAINS SUPPLY
BEFORE REMOVING THIS COVER
MEDEZINE 5000 POWER SUPPY
FUSE REPLACEMENT
6
Medezine Limited
Churchill Way Chapeltown
Sheffield England
S35 2PY
T
F +44
(
0
)
114 257 6222
E sales@medezinesaws.com
W www.medezinesaws.com
+44
(
0
)
114 257 6002
