MDS86845 Series (PIC-00311)
Revised: 12/28/2018
Rear Wheel Assembly

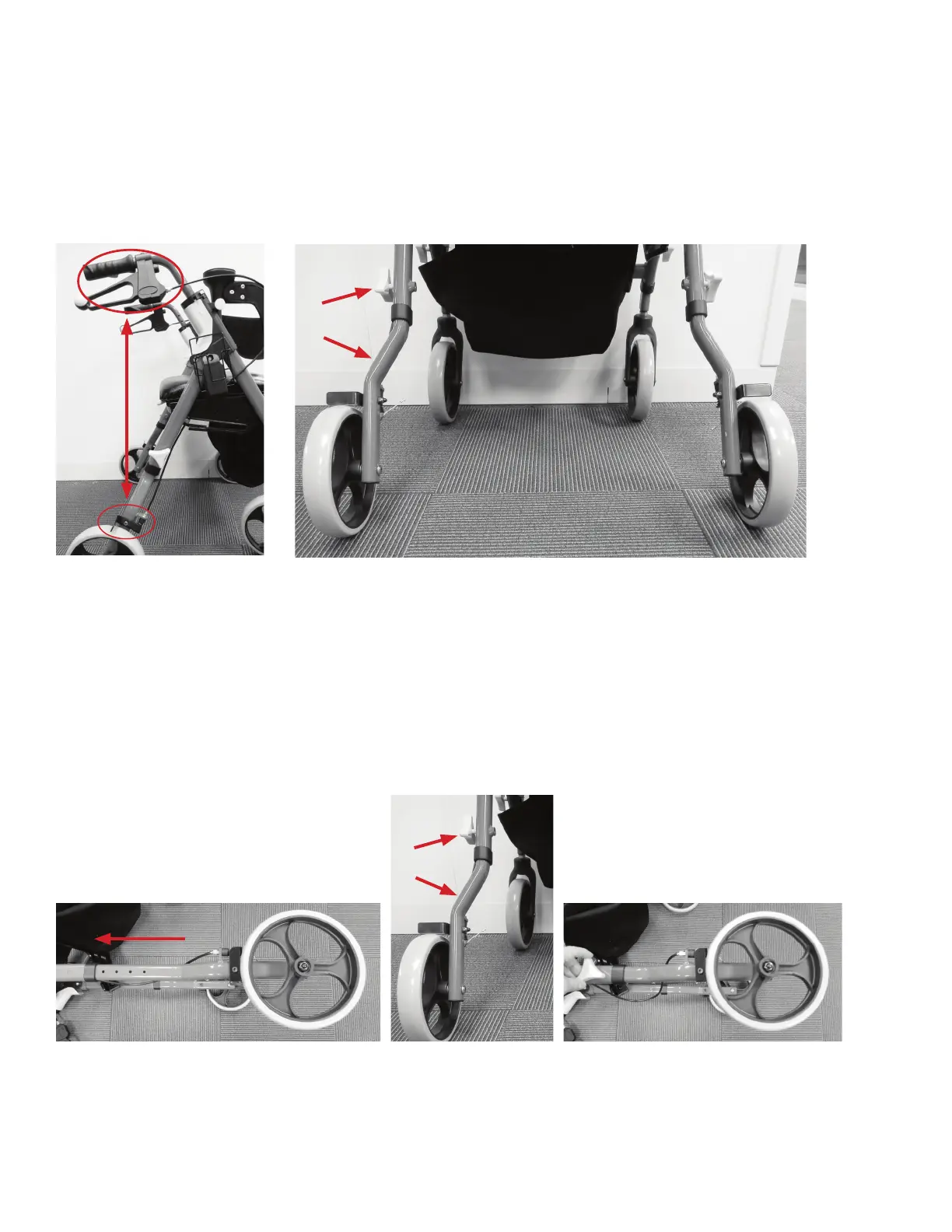

NOTE: The rear wheels are the ones with the brake shoes on them.
• Ensure these are mounted so that the wheel/brake is directly below the brake handle as
shown. Figure 1.
• Ensure that the bend of the wheel leg piece bends away from the center of the rollator
shown. Figure 2.
Figure 1 Figure 2
NOTE: Make sure the brake shoe and the triangle knob are to the outside.
The leg should bend away from the center of the rollator.
1. Insert wheel assembly to desired height and use chart 1 (page 7) for recommended
height settings. Figure 3.
2. Insert triangular hand screw into hole on same side as the wheel is on so that
the triangular hand screw stays outside of walker frame. Figure 4.
3. Tighten triangular hand screw until secure (Hand Tighten Only!). Figure 5.
4. Repeat steps 1-3 for other rear wheel.
