MDS86845 Series (PIC-00311)
Revised: 12/28/2018

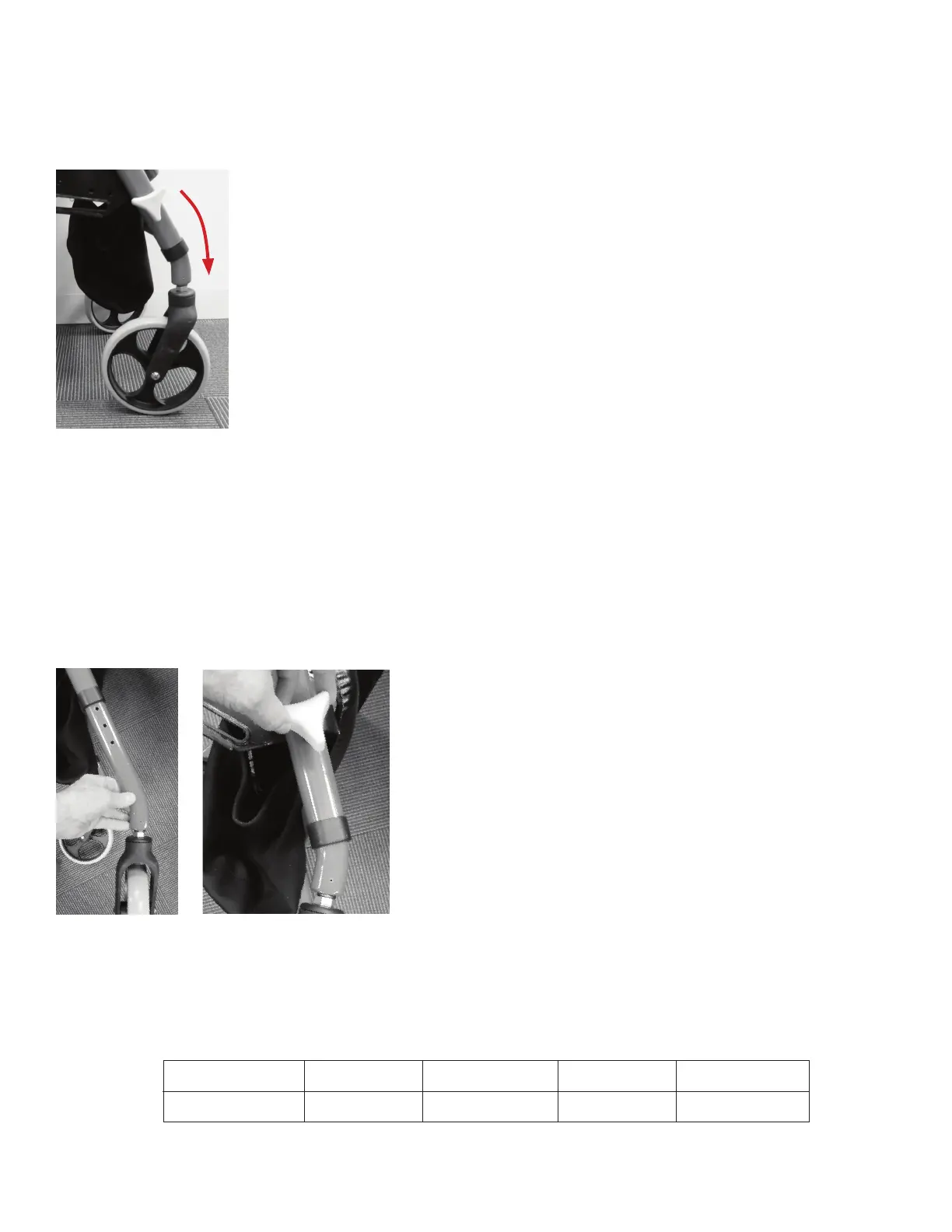

Front Wheel Assembly
NOTE: The front wheels are the ones that swivel.
• Ensure these are mounted so that the bend turns toward the floor. Figure 6.
Figure 6
Seat Heights provided by leg adjustments (set to Dimension A above):
1. Insert wheel to desired height depicted by numbered holes (set to the same number as
rear wheels). Figure 7.
2. Place triangular hand screw into hole. Make sure triangular hand screw stays on the
outside of rollator frame. Figure 8.
3. Tighten triangular screw until secure (Important: Hand Tighten Only!). Figure 8.
4. Repeat steps 1-3 for other front wheel.
Figure 7 Figure 8
Legs
Hole 1 Hole 2 Hole 3 Hole 4 Hole 5
Seat Height 25" (63.5 cm) 24" (61 cm) 23" (58.5 cm) 22" (56 cm) 21" (53.3 cm)
Chart 1
Note: 1 is the highest, 5 is the shortest setting.
To Next Page
