8
Installation
Mechanical Installation
The 960 is a short to mid-range bar. Dependent on the application, the bar will be
mounted between 150mm and 600mm from the target surface.
The bar should be mounted securely, using all the M4 T-bolts provided with the bar.
Correct positioning of the bar is vital for eective static control. There must be no

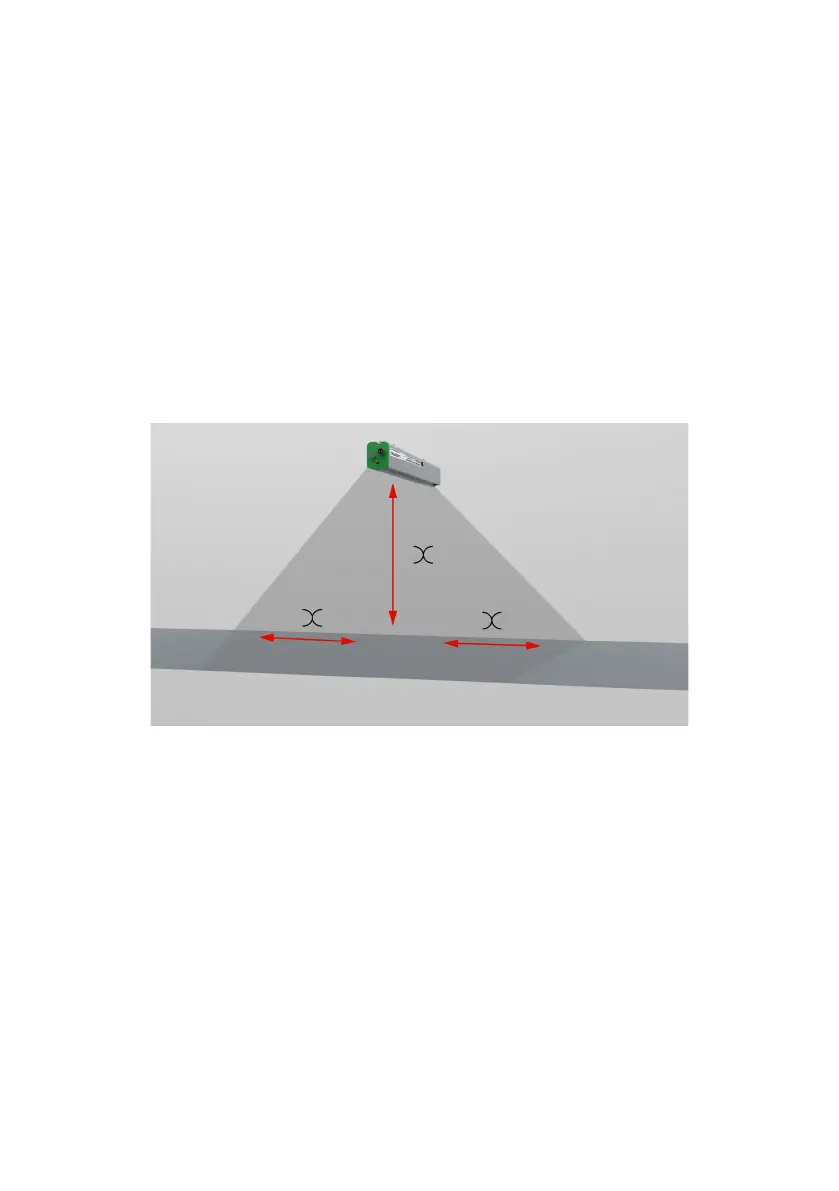

metallic objects or obstruction between the bar and the material. The diagram shows
the area that should be kept clear.
Where x lengths are equal.
