Meech Hyperion 960IPS - Health and Safety; Technical Drawing

1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Meech International
2 Network Point
Range Road, Witney
OX29 0YN, UK
Tel: +44 (0) 1993 706700
Fax: +44 (0) 1993 776977
email: sales@meech.com
web: www.meech.com
'Meech Internation al' is a trading styl e
of Meech Static Elim inators Ltd

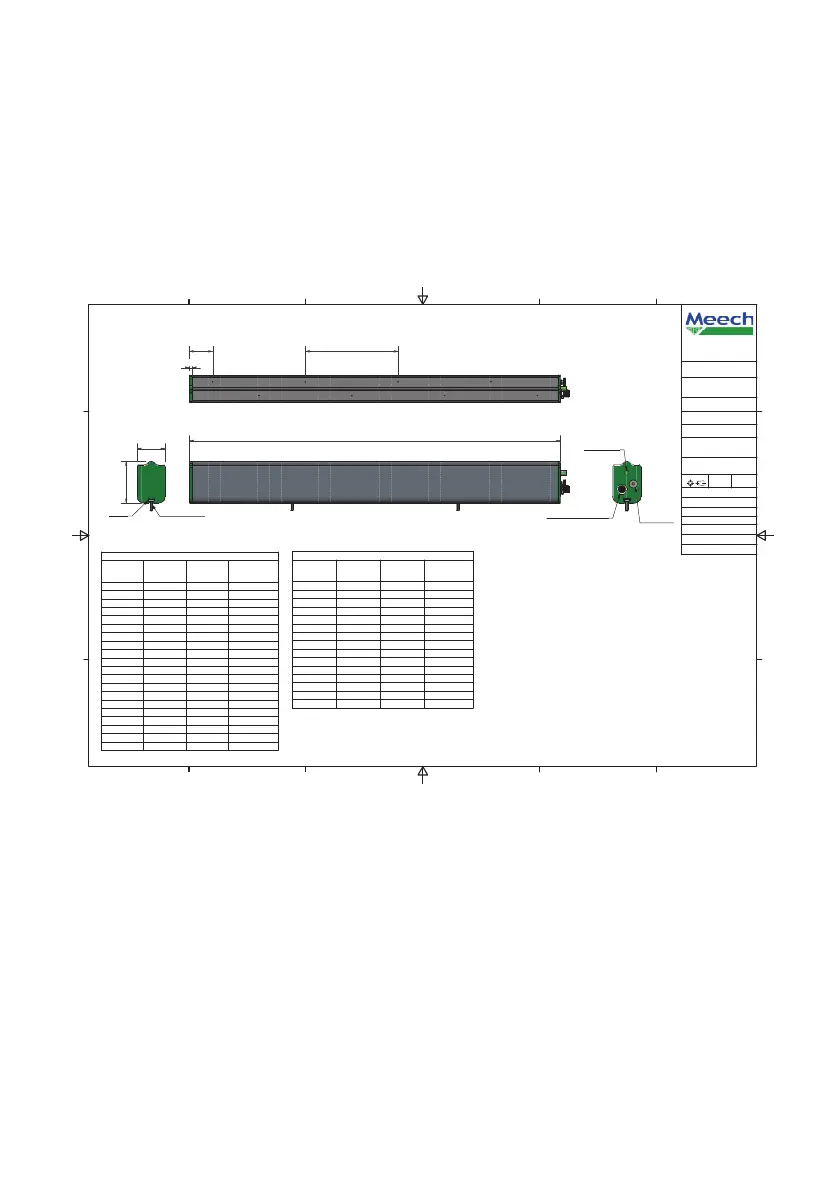

TITLE :
960 Bar
DRAWING NO:
A960 - _ _ _ _ _ _
MATERIAL : LG ABS AF312A (Coo l Grey 8) &
FR- ABS (Green Pantone 355)
FINISH :
Smooth
TOLERANCE UNLESS OTHERWISE SPECIFIED
Machined Work Metric ± 0.1mm
Unmachined Fabrications ± 1mm
Angular ± 0°30'
DIMENSIONS IN MM DO NOT SCA LE
CRITICAL TO FUNCTION (C TF)
DIMENSIONS AS MARKED
PROJECTION
SHEET
$
6&$/(
NTS
DATE :
REVISION :
SHEET :
2 / 3
DETAIL :
Marketing
DRAWN BY :
Samuel Davi es
CHECKED BY :
David Hyde
SIGNED OFF BY :
David Hyde
Standard length
45,0
30,0
LED Indicator
Earth
Connection
Murr Power Connection
3,0
05/08/2019
25,0 100,0
STANDARD LENGTHS
TOTAL
LENGTH
NOMINAL
ACTIVE
LENGTH
RESISTORS
NO: MOUNTING
STUDS
400 400 8 2
500 500 10 2
600 600
12 2
700 700
14 2
800 800 16
2
900 900 18 2
1000 1000 20 3
1100 1100 22 3
1200 1200 24 3
1300 1300 26 3
1400 1400 28 3
1500 1500 30 4
1600 1600 32
4
1700 1700 34
4
1800 1800 36
4
1900 1900 38 4
2000 2000 40
5
2100 2100 42 5
2200 2200
44
5
2300 2300 46
5
STANDARD LENGTHS
TOTAL
LENGTH
NOMINAL
ACTIVE
LENGTH
RESISTORS
NO: MOUNTING
STUDS
2500 2500 50 6
2600 2600 52 6
2700 2700 54 6
2800 2800 56 6
2900 2900 58 6
3000 3000 60 7
3100 3100 62 7
3200 3200 64 7
3300 3300 66 7
3400 3400 68 7
3500 3500 70 8
3600 3600
72
8
3700 3700 74 8
3800 3800 76 8
3900 3900 78 8
T-Slide
Mounting Studs
Health and Safety
Emission of Ozone: Considerably below international standard of 0.1ppm.
Technical Drawing
