Meech Hyperion 960IPS - Clean Pin Alert and Fault LED; Dual Alarm Lines - Clean Pin Alert and Fault Alert Output

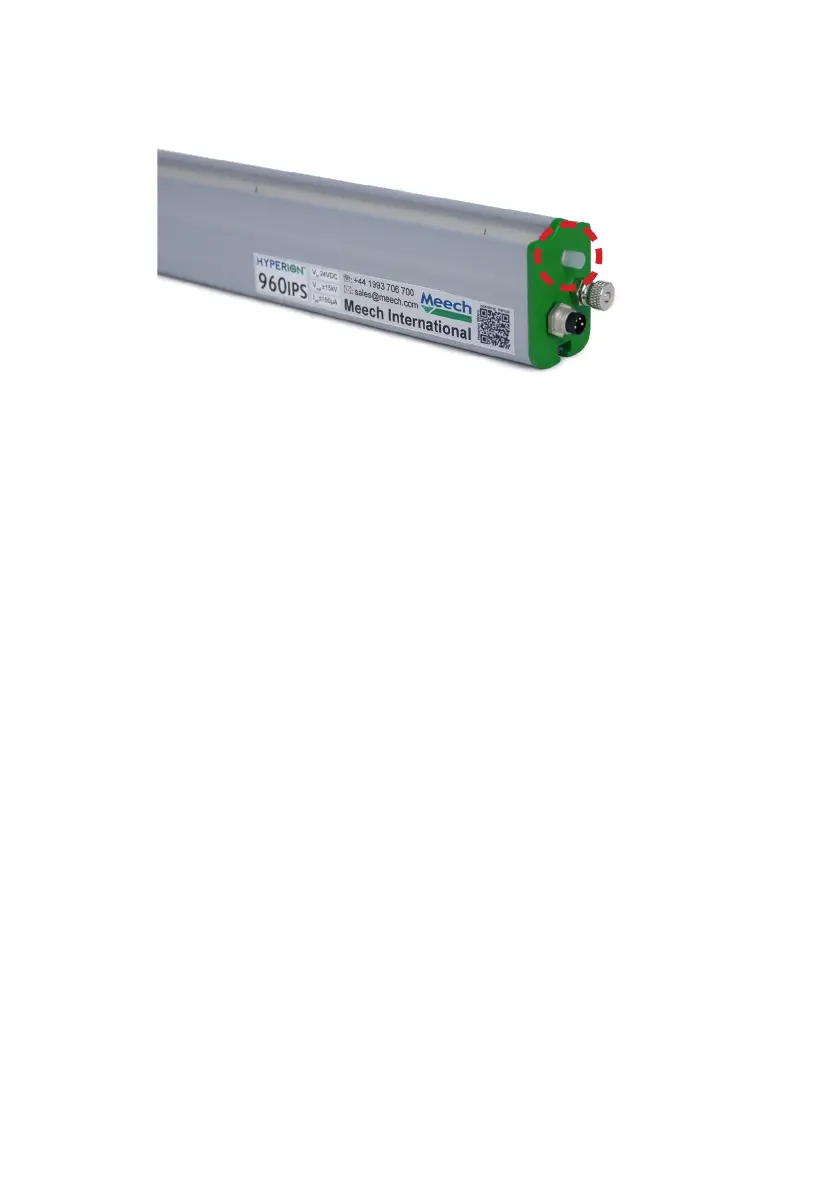

Clean Pin Alert and Fault LED
The local LED illuminates green to indicate that the bar is on and working correctly.
Red ashing LED shows that bar is dirty and needs cleaning. Solid red illumination
indicates a fault with the high voltage output.
 Green - OK
 Green ashing - Barmaster remote programmer connected
 Red ashing - Cleaning required
 Red constant - Fault
Dual Alarm Lines - Clean Pin Alert and Fault Alert
Output
Dual alarm lines tell remote monitoring systems whether the ionising equipment needs
routine maintenance or whether there is a more serious system failure. The exible
conguration of the alarm system, allows the alarm lines to be interfaced with PLC’s,
buzzers and remote lamps.
Dual output signals indicate when the bar needs cleaning and when a fault has been
detected. The signal is 0V/24V output on pin 2 for Clean Pin Output and 0V/24V
output on pin 4 for Fault Alert Output. The default for Bar OK = 24V and for Bar needs
cleaning = 0V. For the Fault Alert Output the default is 0V. If required the signal can be
inverted using a BarMaster Remote Programmer or SmartControl. For example Bar
OK = 0V, Cleaning Required = 24V.
