Megger HPG AC Series User Manual

16
3.2 HPG XX-H

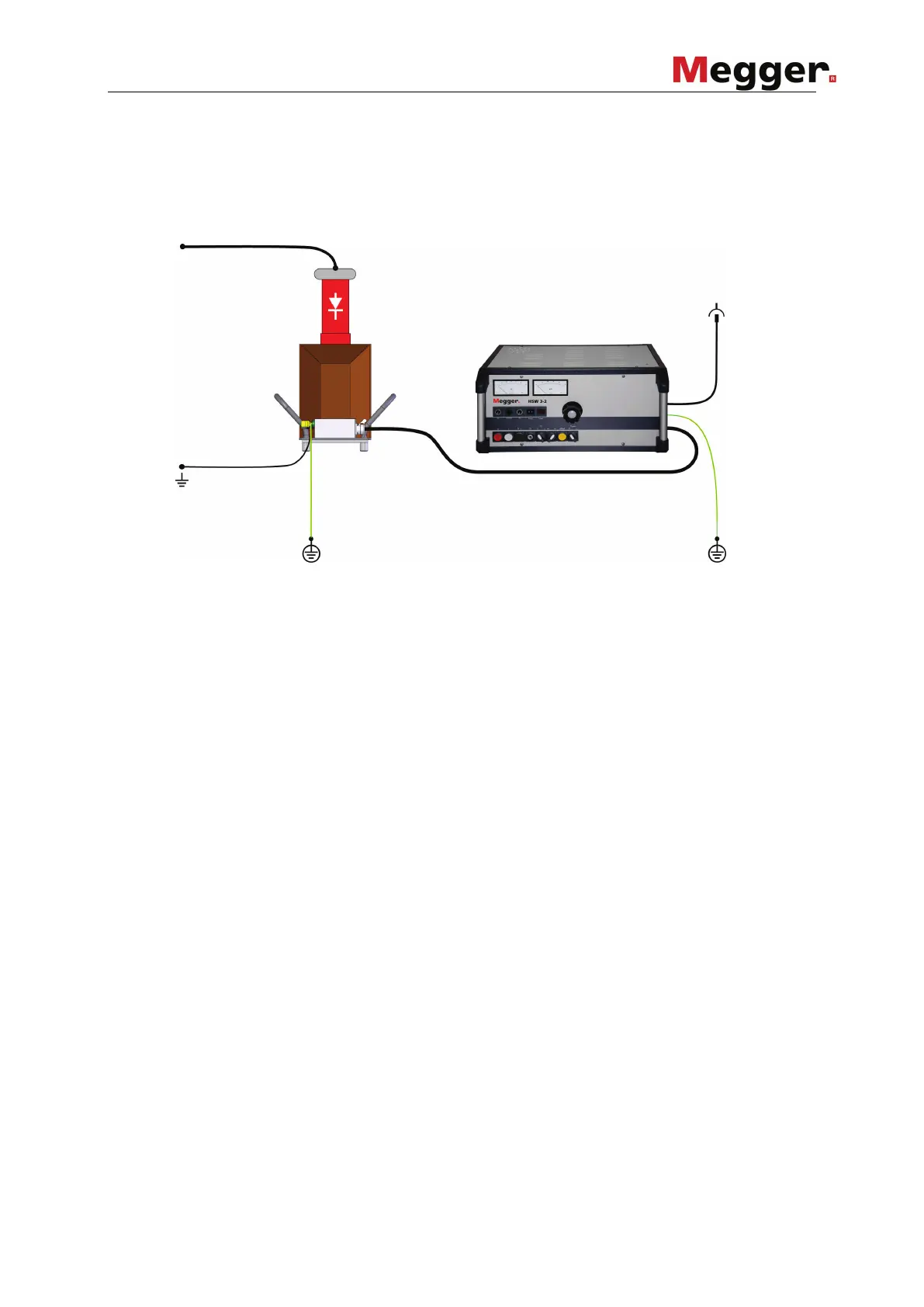

Figure 4 : HPG 50-H, HPG 80-H or HPG 110-H installation
3.2.1 HPG 50-H
This test system consists of the following components:
1. Control unit HSW 3-2
2. HV transformer HTR 35-1
3. HV rectifier HGL 80
4. Cable set VL 70
5. Discharge rod EST 50
3.2.2 HPG 80-H
This test system consists of the following components:
1. Control unit HSW 3-2
2. HV transformer HTR 58-1
3. HV rectifier HGL 80
4. Cable set VL 70
5. Discharge rod EST 100
230 V (+6% / -10%)
45 – 60 Hz

Megger HPG AC Series Specifications

General

Display	Digital meters for voltage and current
Protection Features	Overload protection, overvoltage protection
Cooling	Air-cooled
Weight	Varies by model (typically 50 kg to 200 kg)
Dimensions	Varies by model
Type	High Voltage AC Test Set
Application	High voltage testing of electrical equipment and insulation
