Megger MIT515 User Manual

6

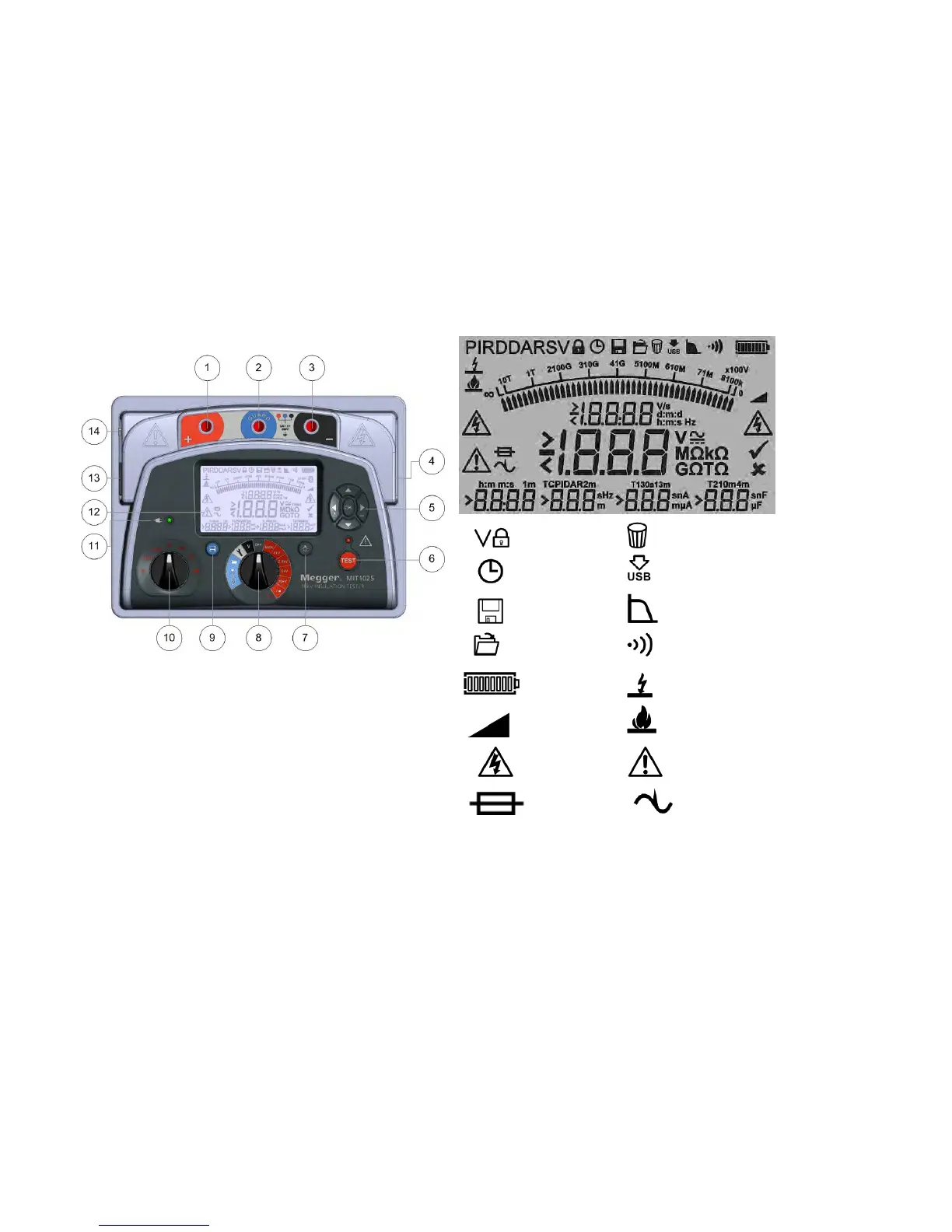

Instrument Controls and Indicators
1. Positive (+) terminal
2. GUARD terminal
3. Negative (-) terminal
4. USB device interface
5. Four arrow buttons and OK button
6. TEST button with associated HV warning lamp
7. Backlight button
8. Central rotary switch
9. Save button – MIT525, MIT1025, MIT1525
10. Test mode rotary switch
11. LED indicating line power / mains
12. Display
13. Power socket
14. Functional earth terminal: 15 kV only
User lock
voltage
Delete records
Timer Download via
USB
Save Filter
Open records Alarm
Battery Breakdown
mode
Ramp test Burn mode
Danger HV Refer to manual
Fuse Noise detected

Megger MIT515 Specifications

General

Insulation Resistance Range	10 kΩ to 10 TΩ
Short Circuit Current	1.5 mA
Display	Backlit LCD
Weight	1.5 kg
Safety Rating	CAT IV 600 V
Dimensions	230 x 170 x 100 mm
IP Rating	IP65
Operating Temperature	-20°C to +50°C
Storage Temperature	-25°C to +65°C
Test Voltage	500 V, 1000 V, 2500 V, 5000 V
Power Supply	Rechargeable battery
Accuracy	±5%
Insulation Test Voltage	500 V, 1000 V, 2500 V, 5000 V
Battery Life	6 hours continuous testing
