Megger PCITS600/2 - Duration Tests

Duration Tests
The graph below gives a guide to the maximum duration of a single test at a specified output current, at
20˚C ambient.
Recovery time after a full duration test is 15 minutes; operation is continuous at approximately 40% of full
power.
Operation
20
200
0
10
2,5
20
30
40
50
400 600 800 1,000 1,200 1,400 1,600 1,800 2,000
Output Current (A)
Duration (mins)
PCITS600/2
PCITS2000/2

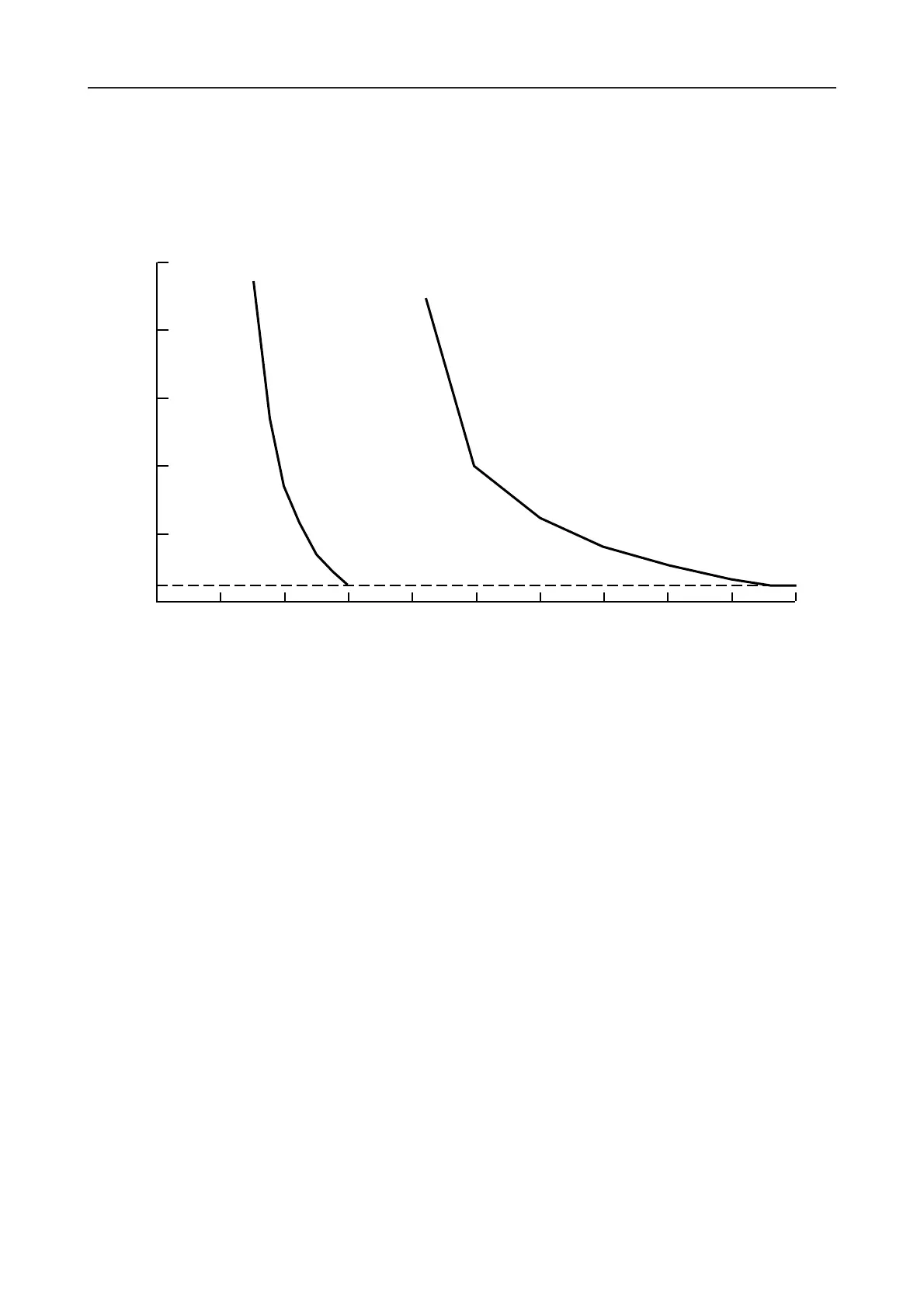

Figure 7b One-Shot Test Duration PCITS600/2 and PCITS2000/2
