Device views
Front view
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
Slot for the CF
Card
Color
-touch display
LED status bar
Door (opens to the left)
Cap for emergency opening of the door
Protective cap for manometer to display the pressure of
the double jacket
steam generator
Power switch (concealed, accessible from the side)
Ethernet
-data connection 1*
Reset button overheating protection*
Quick
-fitting connection for emptying the storage tank*
Front foot of the unit (adjustable)
*behind covering
Rear view
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
(21)
(22)
(23)
(24)
Tank cover
Ethernet
-data connection 2
Ethernet
-data connection 3* (can be retrofitted)
Power cable
Safety spring valve, chamber
Sterile filter
Safety
spring valve, double jacket
Emergency overflow
One way drain
Pressure release
connection
Purified f
eed water intake (for MELAdem; swiveling
threaded fitting for hose 8x1, alternatively straight)
Rear foot of the unit (fixed)
Cooler

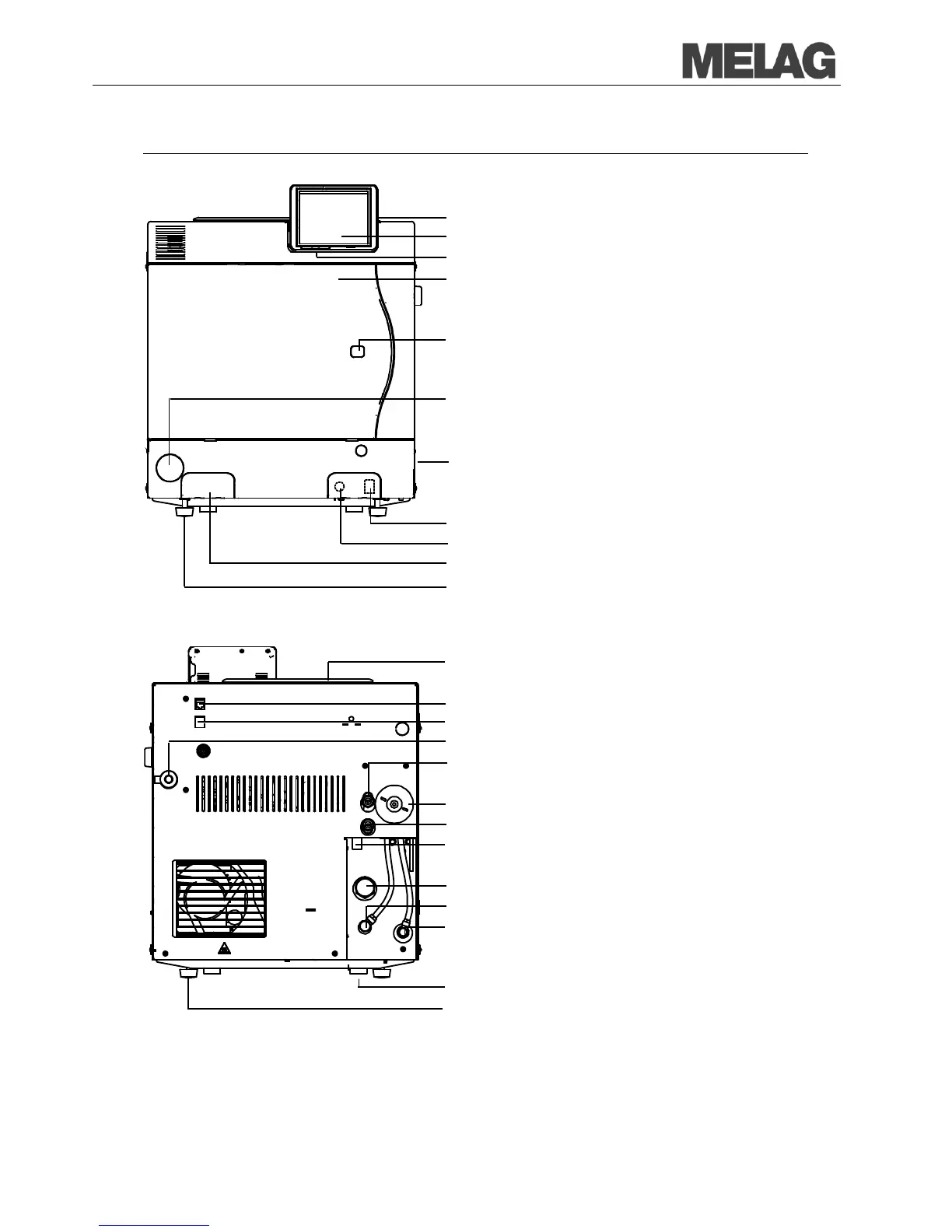

Fig. 1: Front and rear view
