MELAG Vacuklav 41 B+ - Installation Examples and Scenarios

Technical Manual Vacuklav
®
41 B+ and Vacuklav
®
43 B+
7
Installation examples
Example 1 – Standard scope of delivery
Supply of the feed water is from an
internal supply tank
Waste water is collected in the waste
water chamber of the storage tank
No water connection is required
The steam sterilizer is supplied with feed
water directly via a hose from the internal
storage tank. Thus, other than
power
connection, no other connection is needed.
A
float switch built into the device notifies
low feed water. The program st
arts
immediately after filling.
The
used feed water (waste water) is
collected in the waste water chamber of
the internal storage tank and is later
drained manually. There is also a
float
switch for a full
waste water chamber.

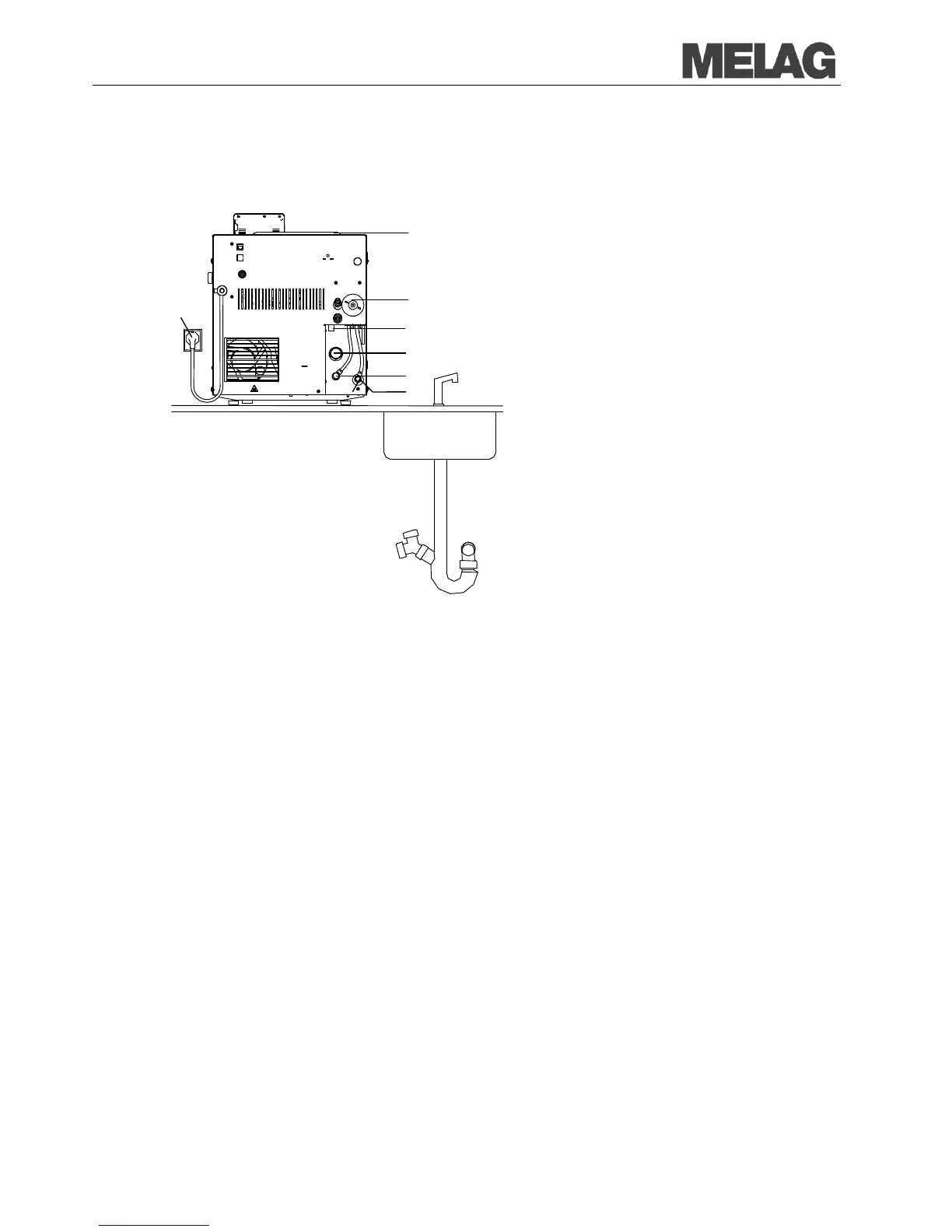

Fig. 3: Feed water supply from an internal storage tank
(1)
Tank cover
(2)
Sterile filter
(3)
Emergency overflow
(4)
One way drain
(5)
Pressure release connection
(6)
Feed water inflow
(7)
Power cable
(1)
(7)
(3)
(4)
(5)
(6)
(2)
