Installation and setting up
6
The drain must be located at least 30 cm beneath the steam sterilizer and
be installed dip-free with continuous descent.
Feed water one way system
Because the steam sterilizer’s feed water becomes dirty in the process of
the water cycling, t
he steam sterilizer functions according to the feed
way system. That means that it uses fresh feed water for the
steam generation for every sterilization. For this purpose the
gets the feed water either from the internal water storage tank or
automatically from the water treatment unit MELAdem
®
40 or
The quality of the distilled or demineralized feed water for the steam
generation must be at least
DIN EN 13060, Appendix C.
Provide the feed water from
the internal storage tank

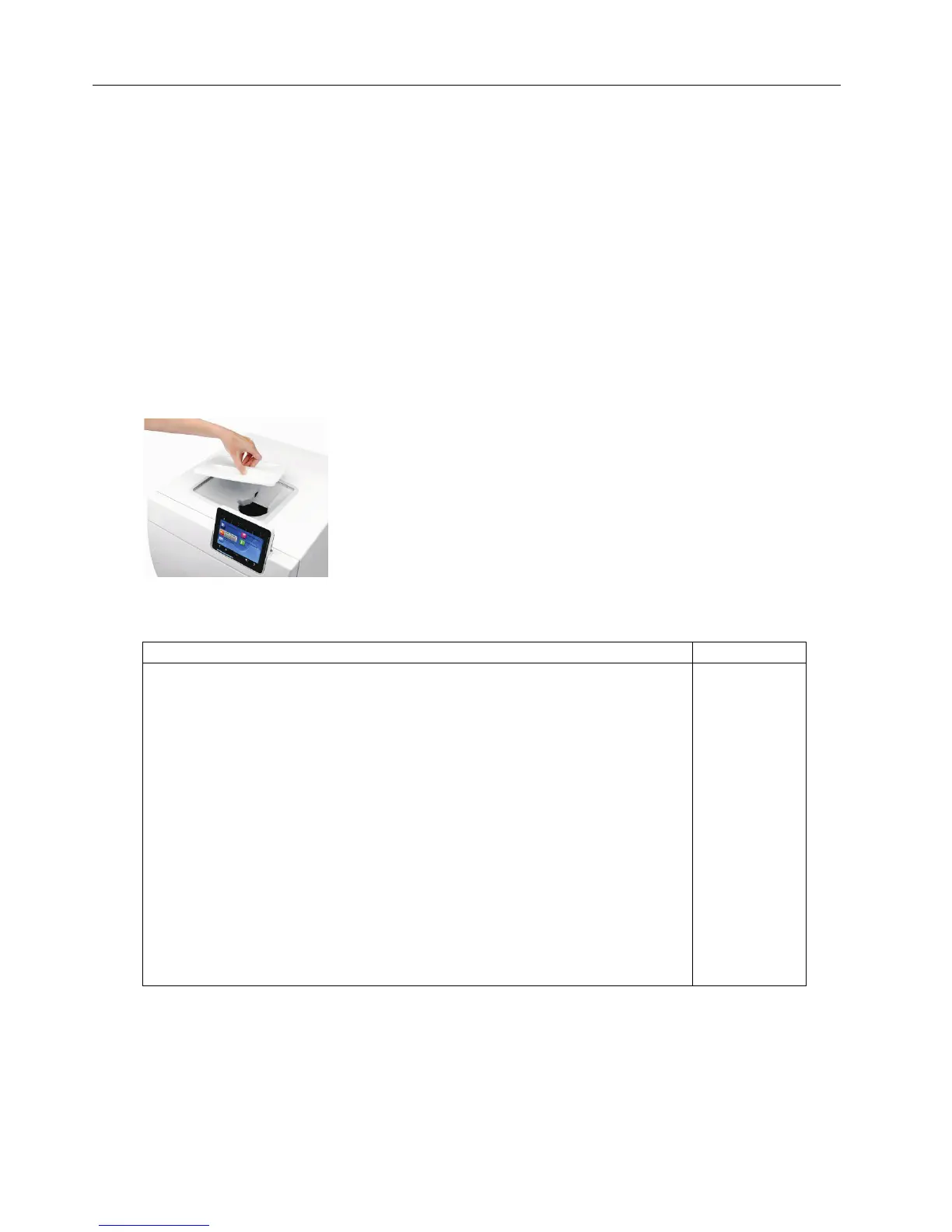

Before the initial start-up of the steam sterilizer, the right chamber of the
internal storage tank must be filled with feed water up to the maximum
mark.
-up of the steam sterilizer, the steam sterilizer requires a
-time filling of 2.5 liters to fill the double jacket. We therefore
recommend that the right chamber of the internal storage tank is then
immediately refilled.
Additional material, that can be ordered
Water connection set MELAdem
®
40
Water connection set MELAdem
®
47
Water connection set consisting of (contained in Art. No. 09033 and 09034):
Feed water inflow nozzle for ∅6x1 hose (substitute nozzle for ∅8x1)
Hollow screw for feed water inflow nozzle
2x Cu seals 1/8“ for Art. No. 53461
2x Cu seals 1/4“ for Art. No.53471 (for twisting, substitute Art. No. 53471)
Pressure release nozzle (1/4“ – quick connect for ∅8x1 hose (twist onto the device)
One way drain hose PTFE-pipe ∅8/6 – cut to size
One way drain hose (overflow hose, 2 m)
Surface mounted siphon with double hose nozzle
Double hose nozzle with anti-flooding flap for connection to existing sink siphon
Water tap 3/4“ (safeguard combination)
Additional water tap with return flow inhibitor and pipe aerator
(to attach to an available angle valve)
Safeguard combination, consisting of return flow inhibitor and pipe aerator according to EN
1717
