UE/BE 200-800, SE 200-400, ULE/SLE 400-800
UP/BP/ULP/SLP 400-800
2
Instructions for repair
This Service manual contains instructions for the repair of MEMMERT ovens. For
maintenance work please see the Operation Instructions added to each unit.
We point out that tasks which require disassembly (even in part) of the unit have to
be carried out by experts only.
The dismantling and dismounting of parts is described in this document down to
the module level, because spare parts usually are replaced as complete modules
only.
Please note the safety instructions and general directions of the
Operating Instructions added to the unit.
Separating the unit exposes raw metal edges - therefore
Always use gloves!
Before removing the top cover - pull out the plug!
This Service manual describes the steps for the dismounting of the unit.
Reassembly is done in reverse order, if not stated differently.

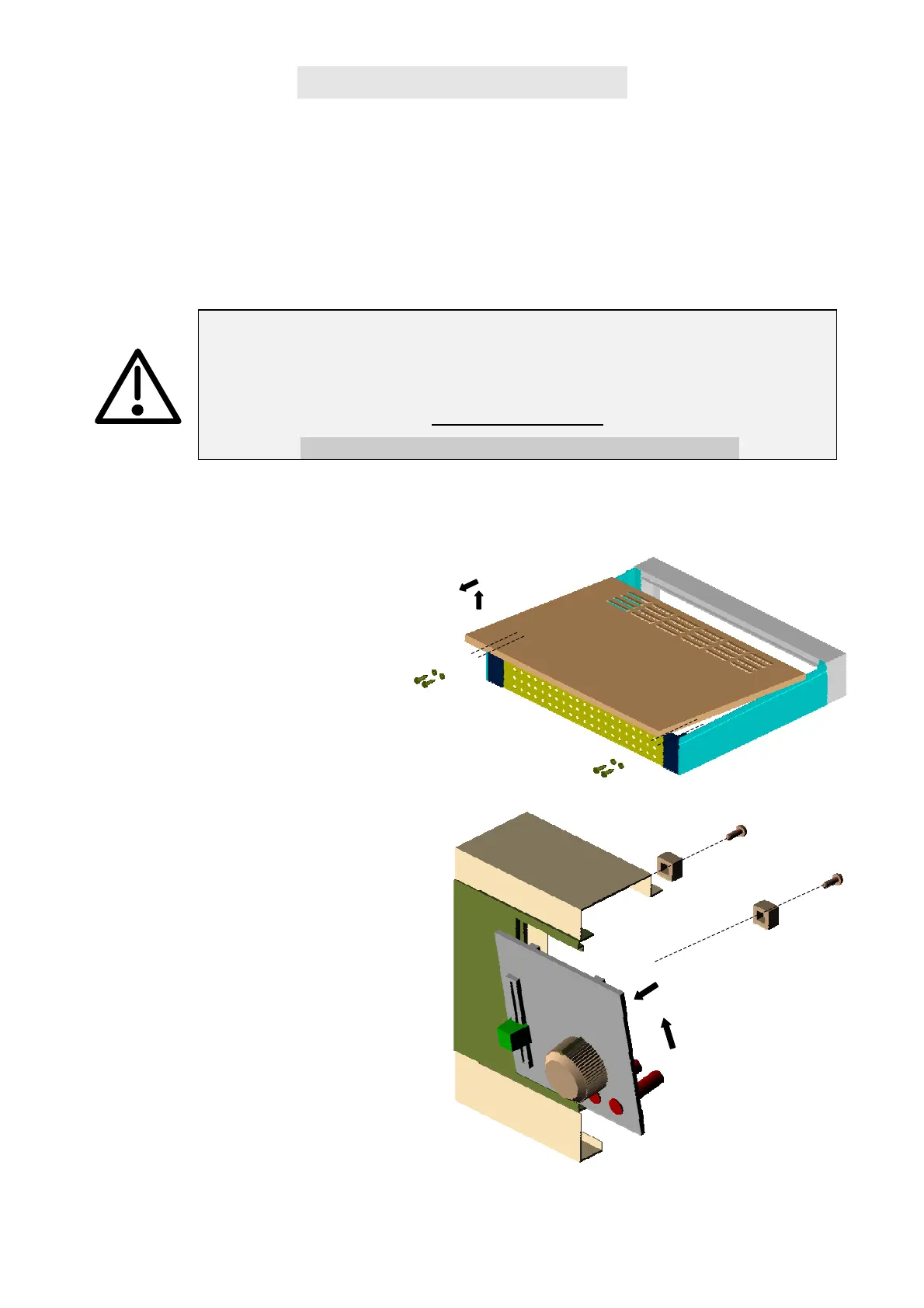

1 Removing the top cover
Pull out the plug.
Unscrew 4 screws at the back of the
casing cover.
Slightly lift up the cover and remove it
by pulling it out backwards.
At reassembly, make sure that lock
washers are placed beneath the
screws.
2 Changing of “Main switch” module (see chap. 4)
Remove top cover (see chap. 1)
Disconnect the circuit element cables
(2 ) at the corresponding front panel.
Release the screw on the hub (9) and
pull out the flexible shaft (10) (only on
class E ovens).
Unscrew mounting blocks (4).
Tilt module of main switch slightly
forward and pull it out upwards.
