UE/BE 200-800, SE 200-400, ULE/SLE 400-800
UP/BP/ULP/SLP 400-800
5
1
2
3
Safety device
Cable connectors safety device
Temperature sensor

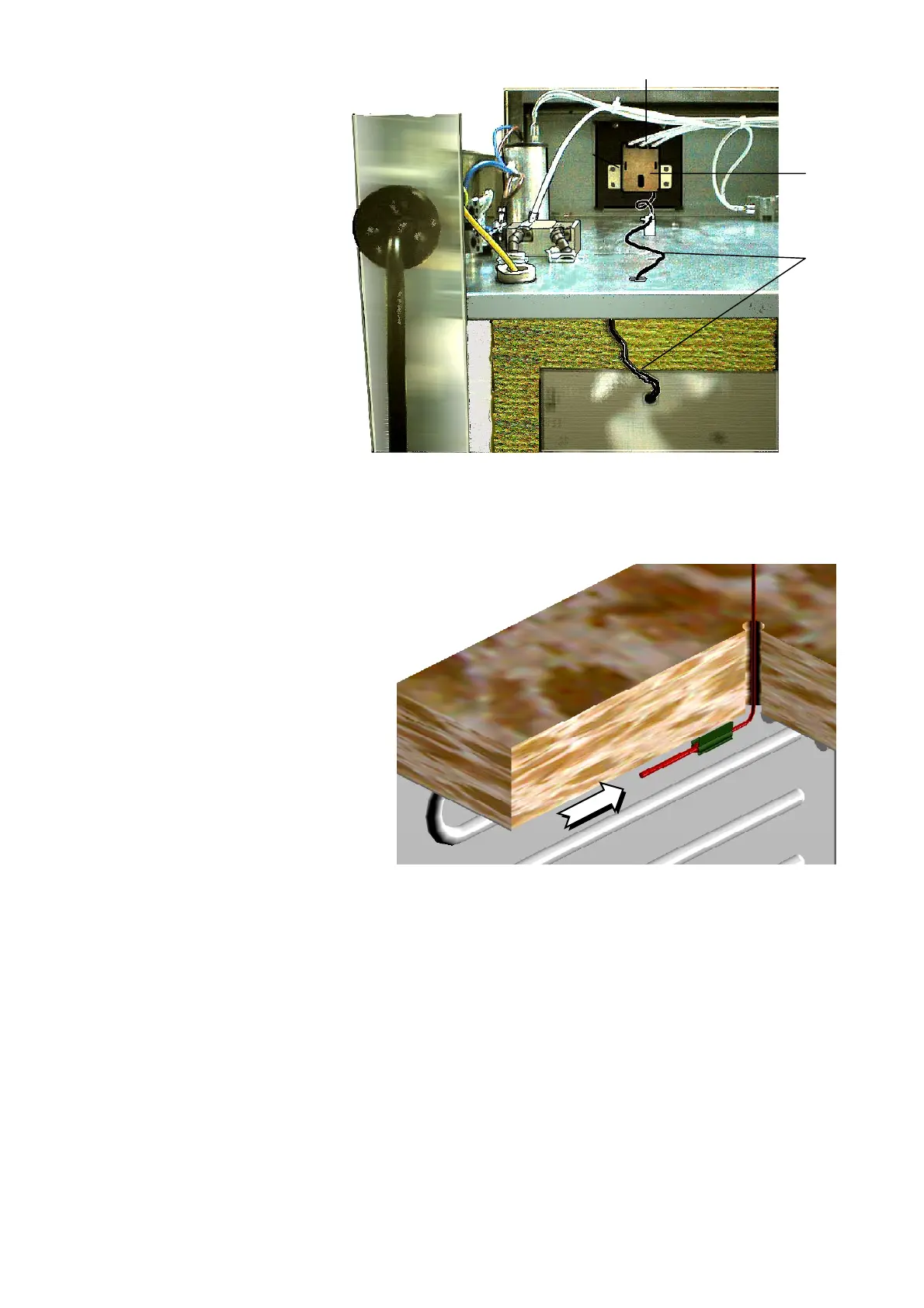

6 Changing the temperature sensor PT100 for electronic controller
Remove top cover (see chap. 1)
The temperature sensor can
carefully be moved backwards
out of the clamp with a tool and
can be taken out through the
ceiling and/or the back panel of
the working chamber.
Pull off the PT100-sensor from
the 4-way terminal strip on the
electronic controller.
Cut open the cable binder with
side cutters and change the
PT100 sensor.
The following panels can be
dismantled in indicated manner. Assemble in reverse order.
Warning !! Ensure that the PT100 sensor is fitted properly into the mounting clip!
Glass PT100: the glass body must project completely outside the clip.
Metal PT100 (new): secure the sensor with the enlarged end flush in the clip.
2
1
3
