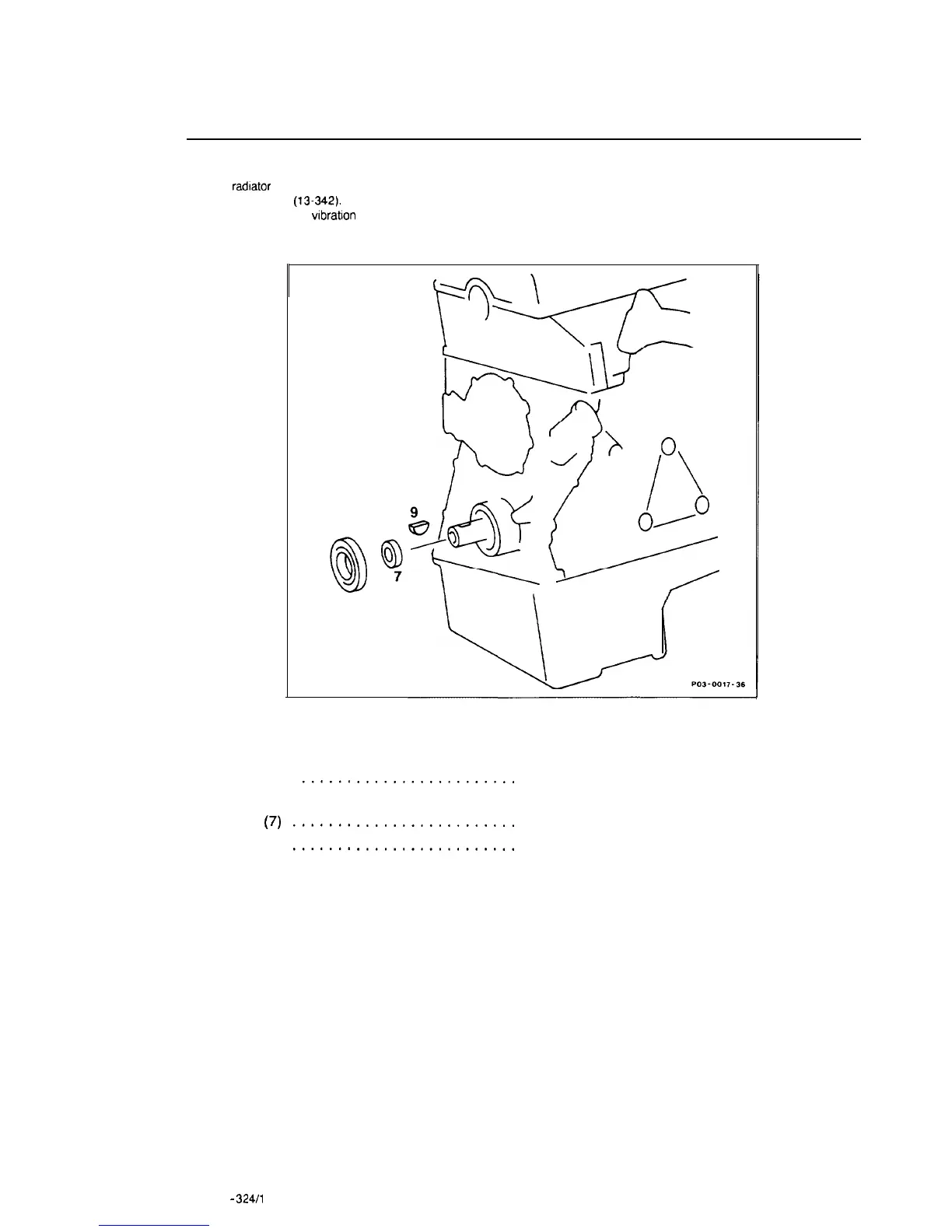

03-324

Replacing front crankshaft radial seal

Preceding work:

Drain coolant (20-010).

Remove radiator (20-420).

Remove poly V-Belt (13-342).

Remove belt pulley and vlbratlon damper (03342).

Radial seal (45)

........................

remove, replace and install

(steps 1, 3 and 4)

Spacer ring

(7)

.........................

check, replace if necessary (step 2).

Mounting hole

.........................

clean, check.

03.0905

324/l
