03-350
Removal and
installation
of crankshaft gear
Preceding work:
Removing liming case cover (01-210).
Removing chain tensioner (05-310).
w

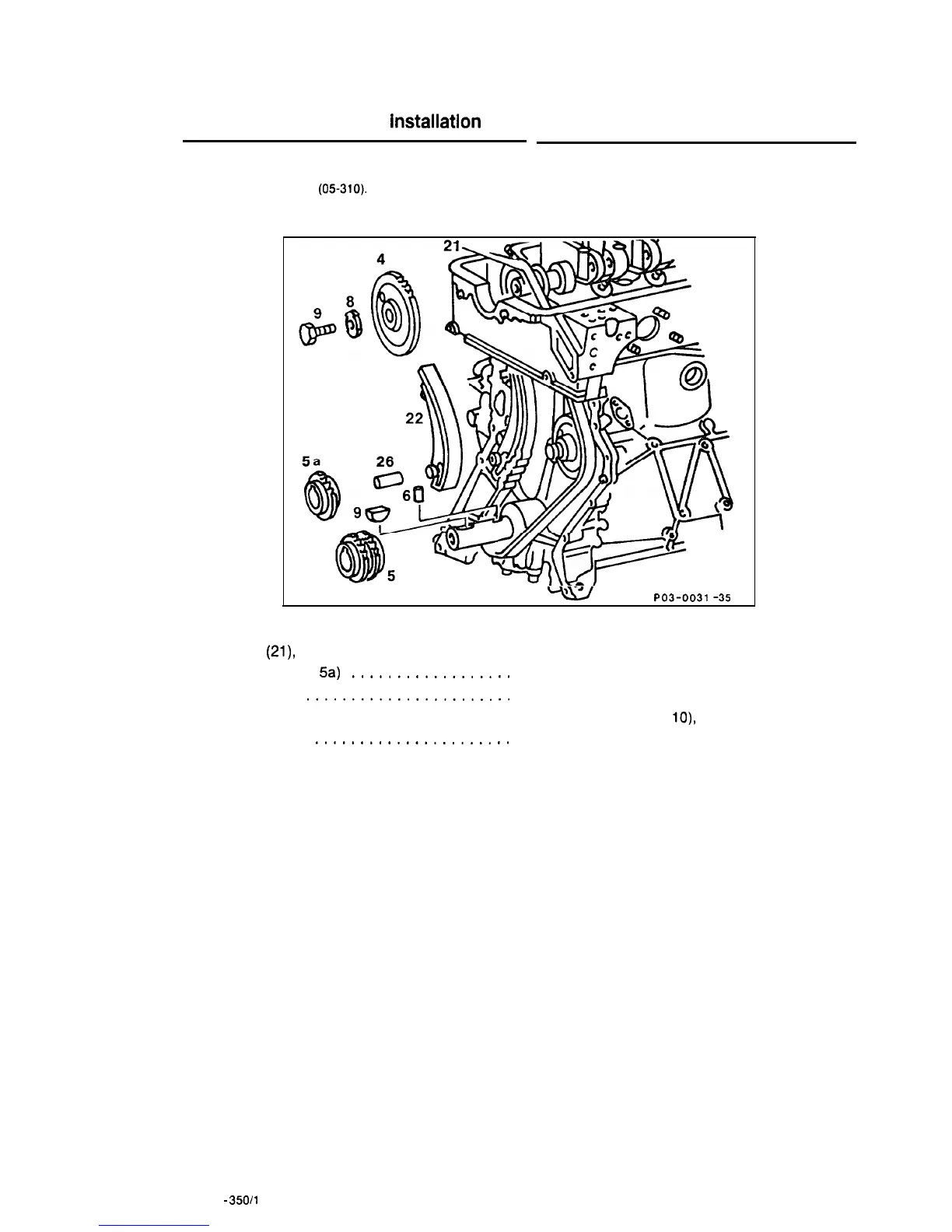

PO3-0031-3s
Timing chain
(21)
camshaft gear (4) and
crankshaft gear (5 or
5a)
..................
Camshaft gear (4)
.......................
Tensioning rail (22)
......................
mark relative to each other (steps 1 and 2).
remove and place timing chain in chain box
(step 3). Install (step
lo),
80 Nm.
pull off and insert.
Note
Drill bearing pin (26) of engines with double
roller chain, tap M6 thread and knock out with
impact extractor
115 589 12
33 00 and
extension 100 589 00 43 00.
When installing tensioning rail, insert new
bearing pin together with tensioning rail
(steps 4 and 9).
03.0905
-
35011
