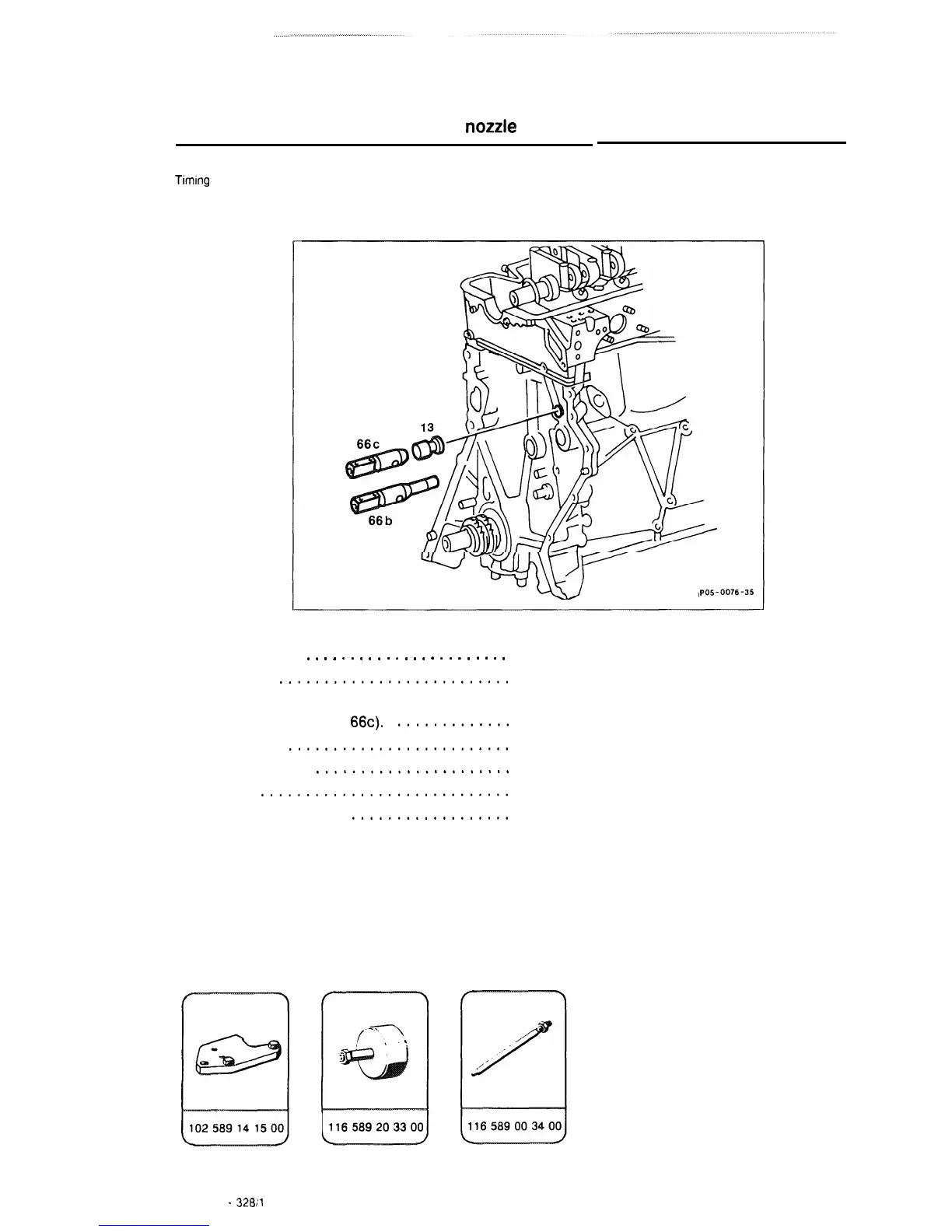

Installation of oil spray nozzle retroactively
Preceding work:
Timing case cover removed (01-210).
idler gear shaft removed (05-412).
POS-0076-35
Sealing plug (13)
. . . . . . . . . . . . . . . . . . . . . . .
remove (Numbers 1 and 2).
Joggle plate
..........................
Part No. 102 589 14 15 00 bolt up, unbolt
(Number 3).
Oil spray nozzle (66b and 66~).
.............
drive home up to stop (Number 4).
Idler gear shaft
.........................
install (05-412).
Timing case cover
......................
install (01-210).
On engine
............................
change oil and filter.
When engine is running
..................
check for leaks.
Special tools
05.0906 - 3281'1
