05-320
Weplacement of timing chain
Preceding work:
AIM
cleaner removed (09-400 and 09-410).
Cylinder head cover removed (01-406).
40
0
#9
41
0@@@
0
39
Gb

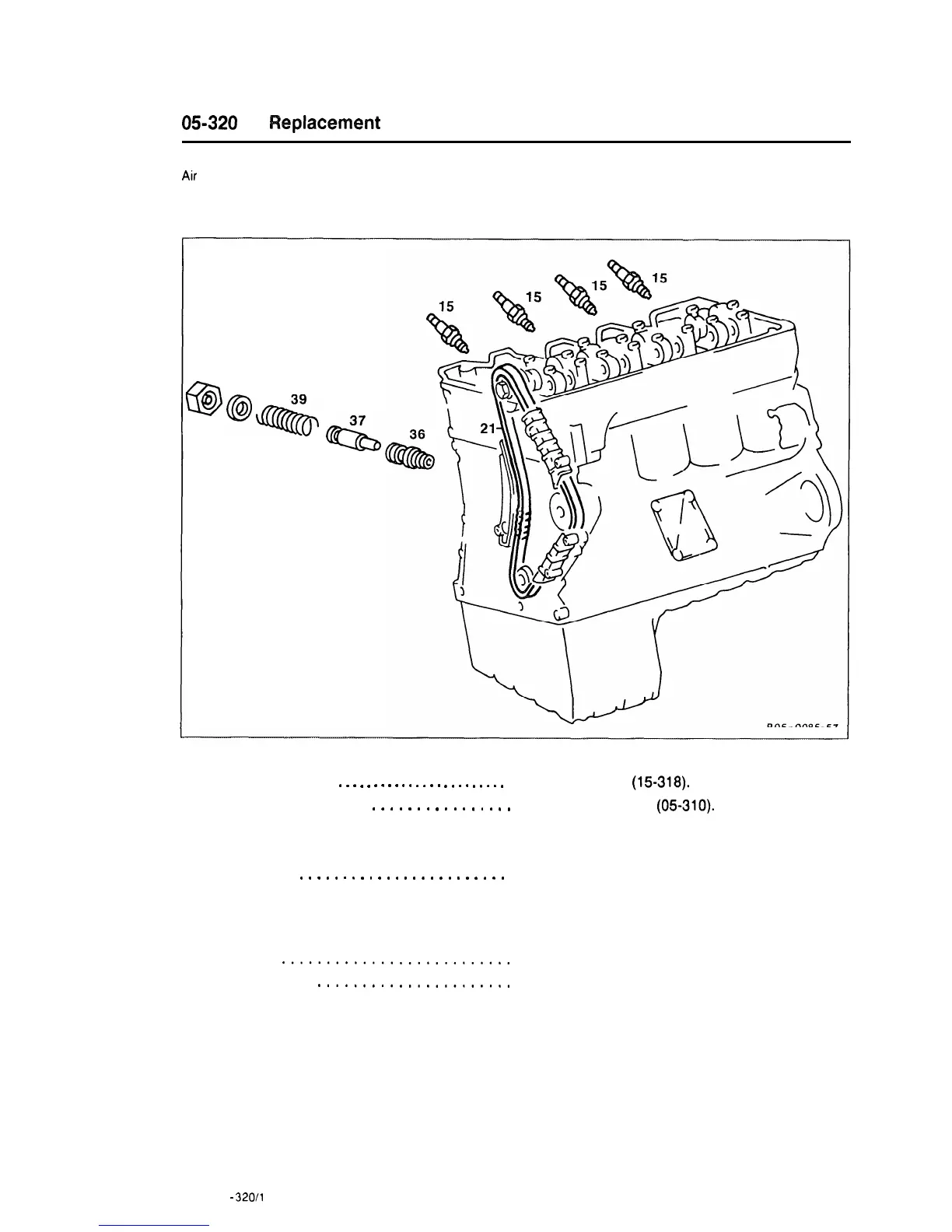

Spark plugs (15)
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Chain tensioner (36 to 41)
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Chain bolt
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
New timing chain with old timing chain (21) . . . . .
Exterior bracket
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Riveting tool
..........................
Connector link bolt
......................
remove, install (15318).
remove and install (05310).
grind off (Number 3).
connect, pull in (Numbers 4 to 7).
press on with riveting tool 000 589 58 43 00,
rivet set 103 589 01 63 00 for single roller
chain, conversion set 000 589 53 43 for double
roller chain (Numbers 8 to 10).
remove, convert (Number 11).
rivet individually (Numbers 12 and 13).
05 0906
-
320/l
