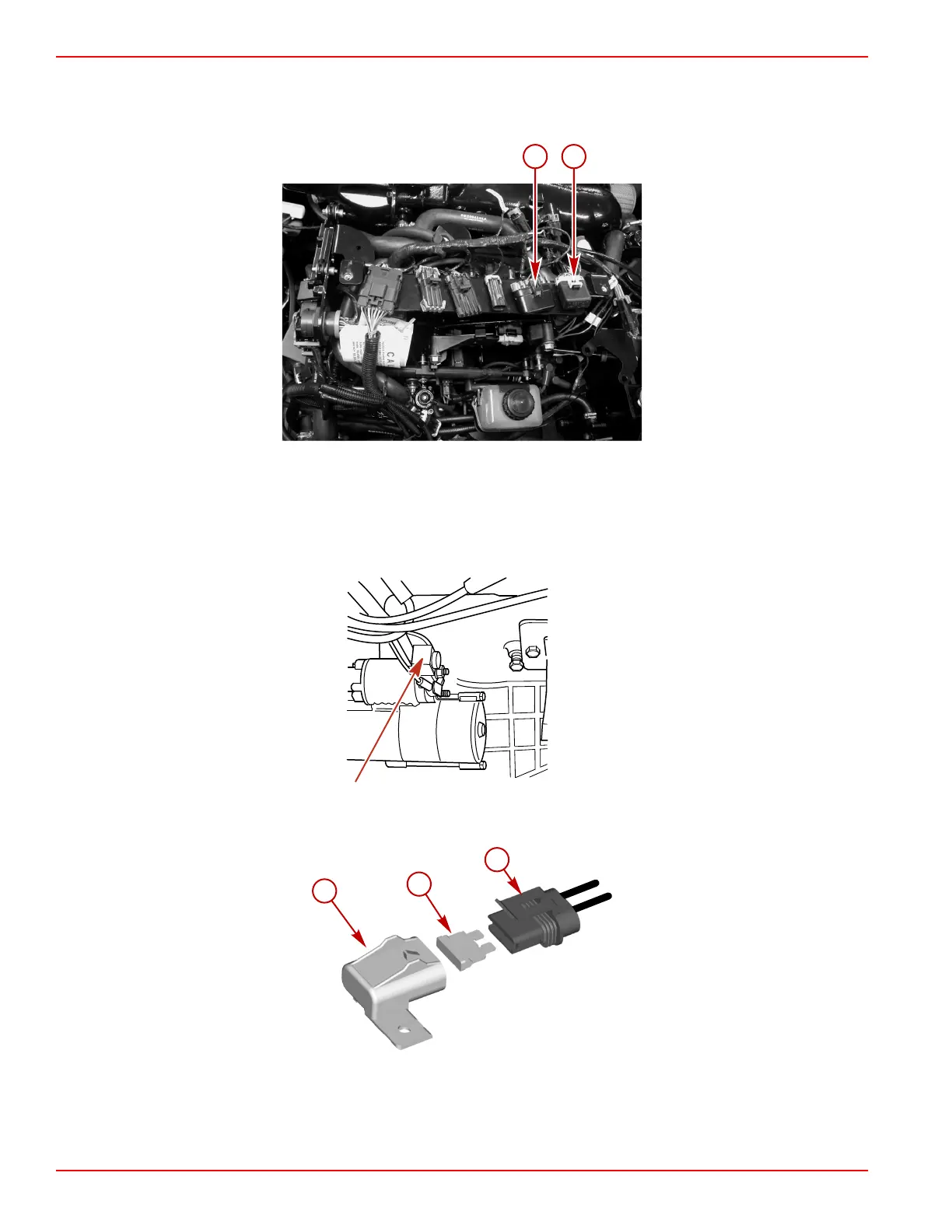

Four fuses protect the main power, fuel pump, ignition, and accessory circuits. Two 10 amp
fuses protect the O
2
sensors. These are located on the top of the engine underneath the
engine information plate.
a - O
2
sensor fuses
b - Main power, fuel pump, ignition, and accessory fuses
A 90 amp fuse is located on the large post of the starter solenoid. This fuse protects the
engine wiring harness.
mc74907-1
A 15 amp accessory fuse protects the accessory circuits. This fuse is located on the rear
of the engine.
a - Fuse cover
b - 5 amp fuse
c - Power harness
