FEATURES AND CONTROLS
22
Remote Control Features

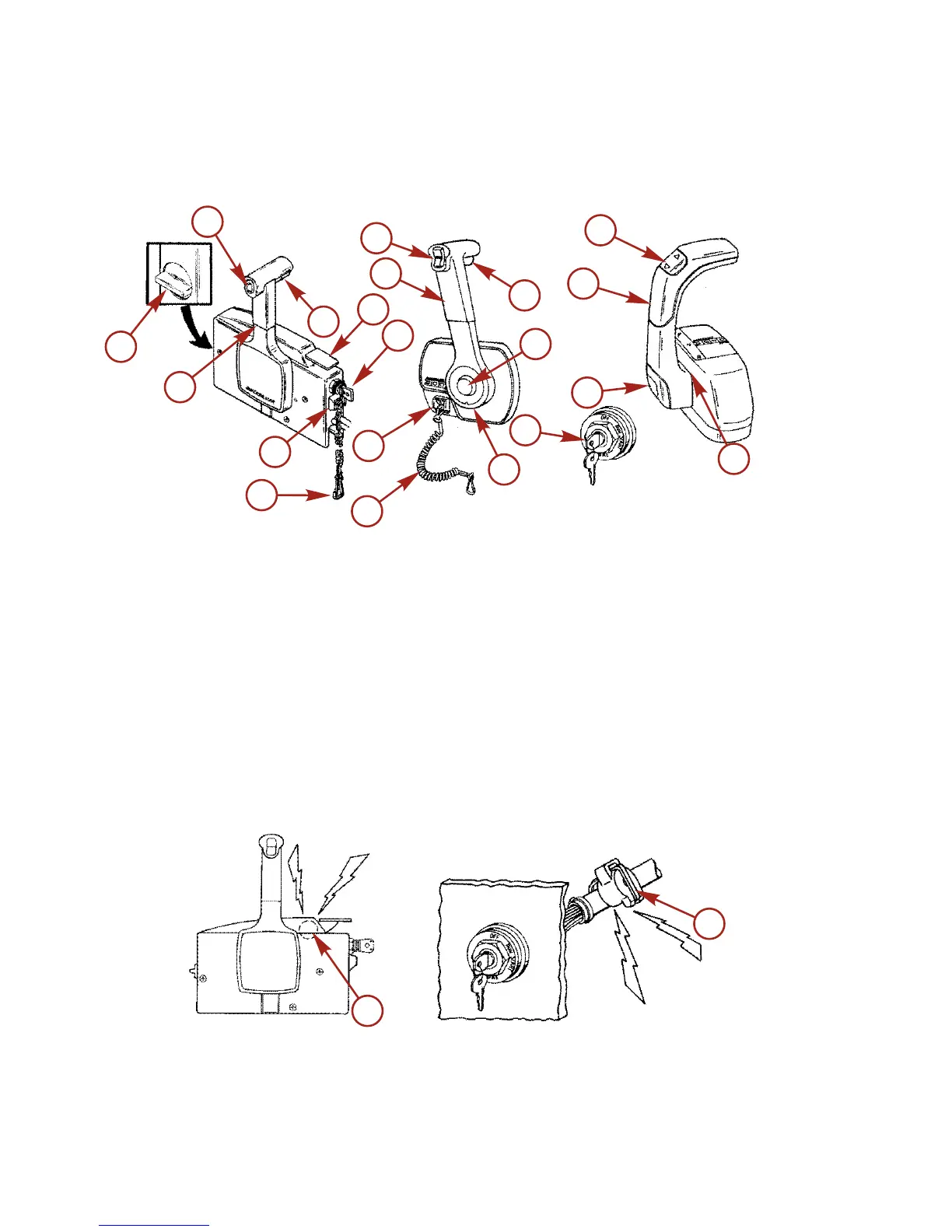

Your boat may be equipped with one of the Mercury Precision or Quicksilver remote controls shown. If
not, consult your dealer for a description of the functions and operations of the remote control.
f
a
c
d
e
b
h
c
a
g
d
e
b
i
f
g
i
c
a
f
26800
a - Control handle - forward, neutral,
reverse.
b - Neutral release lever
c - Trim/tilt switch (if equipped). - Refer to
Features & Controls - Power Trim and
Tilt.
d - Lanyard stop switch - Refer to General
Information - Lanyard Stop Switch.
e - Lanyard - Refer to General Information
- Lanyard Stop Switch.
f - Throttle friction adjustment - Console
controls require cover removal for
adjustment.
g - Ignition key switch - "OFF," "ON,"
START."
h - Fast idle lever - Refer to Operation -
Starting the Engine.
i - Throttle only button - Refer to Operation
- Starting the Engine.
Warning System
The outboard warning system incorporates a warning horn inside the boat. The warning horn may be
located inside the remote control or connected to the ignition key switch.
a
b
27755
a - Horn inside remote control b - Horn connected to ignition key switch
WARNING HORN SIGNALS
When the key switch is turned to the "ON" position, the horn will turn on for a moment as a test to show
the horn is working.
