b. Shift the remote control into neutral. If the propeller shaft does not turn freely without drag,
adjust the barrel away from the cable end guide. Repeat steps a and b.
c. Shift the remote control into reverse while turning the propeller shaft. If the propeller shaft
does not lock solidly in gear, adjust the barrel away from the cable end guide. Repeat steps
a through c.
d. Return the remote control handle to neutral. If the propeller shaft does not turn freely without
drag, adjust the barrel closer to the cable end guide. Repeat steps a through d.
5. Return the safety stop switch to the "RUN" position.
THROTTLE CABLE INSTALLATION
1. Position remote control into neutral.
N
26838

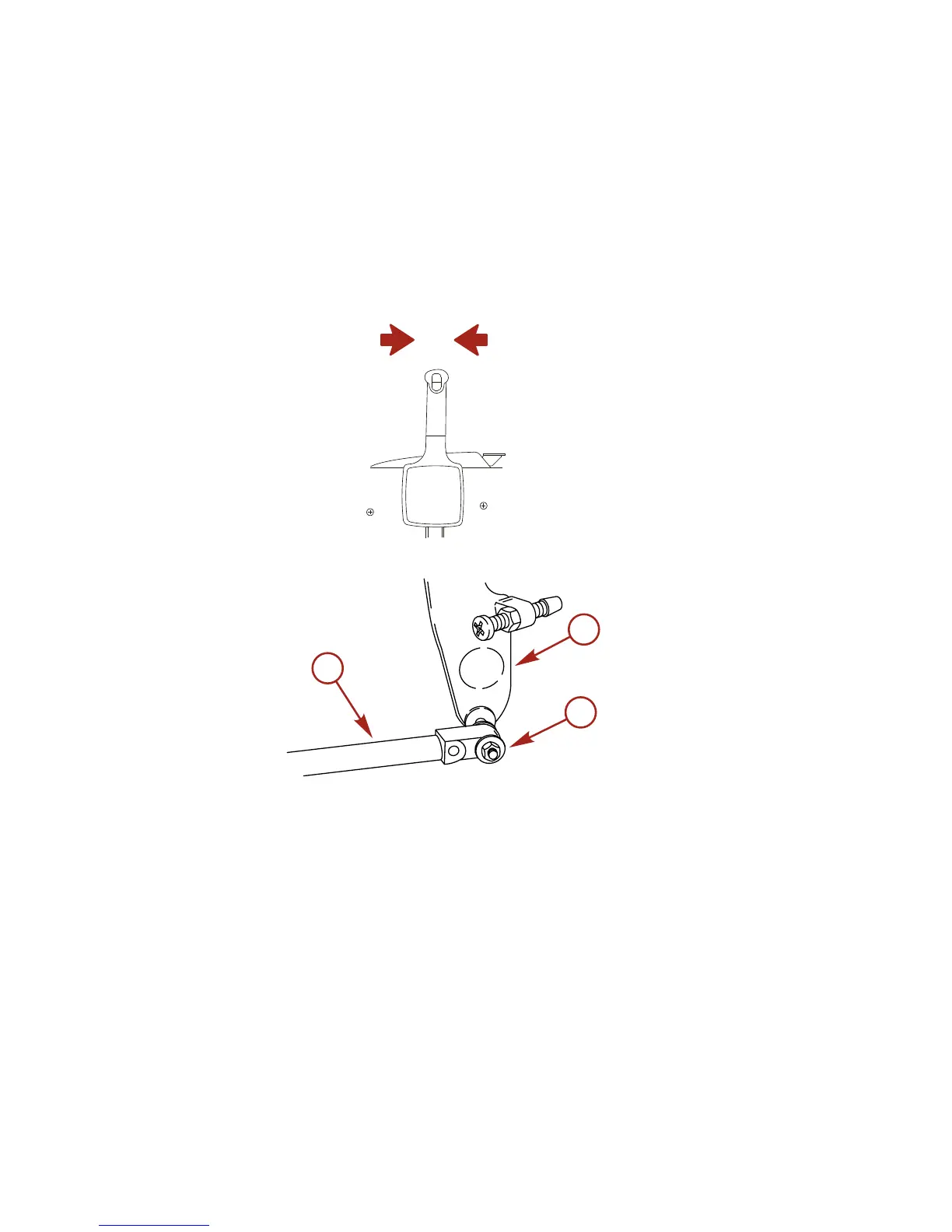

2. Attach throttle cable to the throttle lever. Secure with washer and locknut.
a
7738
b
c
a - Washer and locknut
b - Throttle cable
c - Throttle lever

Mercury 135 Optimax Specifications

General

Starting	Electric
Exhaust	Through Prop
Horsepower	135 HP
Fuel Induction System	Direct Fuel Injection
Alternator Amp	60 Amp
Shaft Length	20", 25"
Full Throttle RPM	5250-5750
Steering	Hydraulic
