Mercury 135 Optimax User Manual

OUTBOARD INSTALLATION
65
Electrical, Hoses, and Control Cables

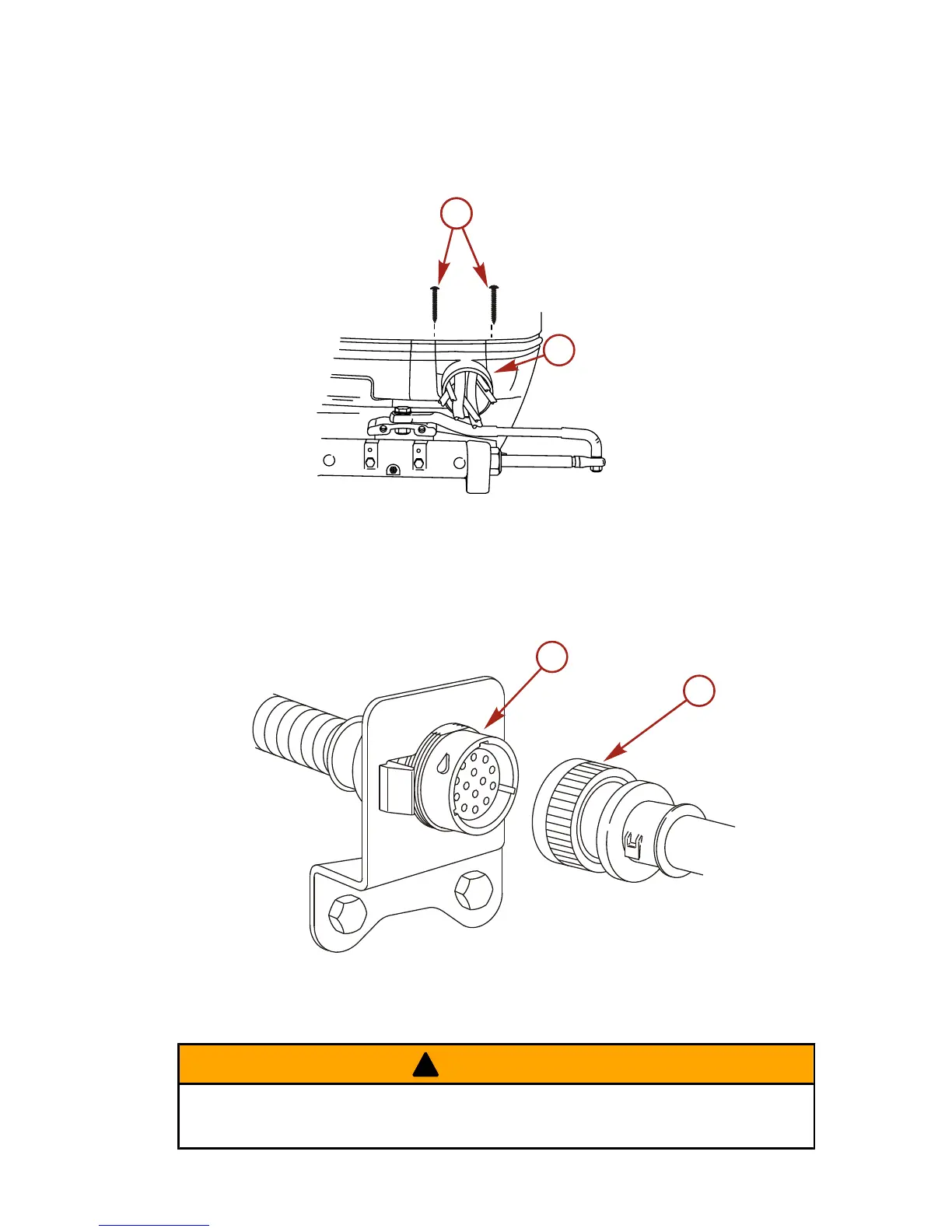

FRONT CLAMP DISASSEMBLY
Remove screws and open the front clamp assembly.
aa
b
7644
a - Screw (2) b - Front clamp
REMOTE WIRING HARNESS
Route the remote 14 pin boat harness through the front clamp. Connect remote harness to the 14 pin
connector on the engine harness.
a
b
11033
a - 14 pin connector b - Remote 14 pin boat harness
BATTERY INFORMATION
!
WARNING
Failure to properly secure the battery leads can result in a loss of power to the Digital Throttle and
Shift (DTS) system, leading to serious injury or death due to loss of boat control. Secure the battery
leads to the battery posts with hex nuts to avoid loose connections.

Mercury 135 Optimax Specifications

General

Starting	Electric
Exhaust	Through Prop
Horsepower	135 HP
Fuel Induction System	Direct Fuel Injection
Alternator Amp	60 Amp
Shaft Length	20", 25"
Full Throttle RPM	5250-5750
Steering	Hydraulic
